SIONYX Nightwave Digital Marine Night Vision Camera - White (C018800)
Manufacturer Part:
C018800
Sale price
$ 2,895.00
Regular price
$ 2,995.00
Full Factory SIONYX Warranty
Media & Manuals

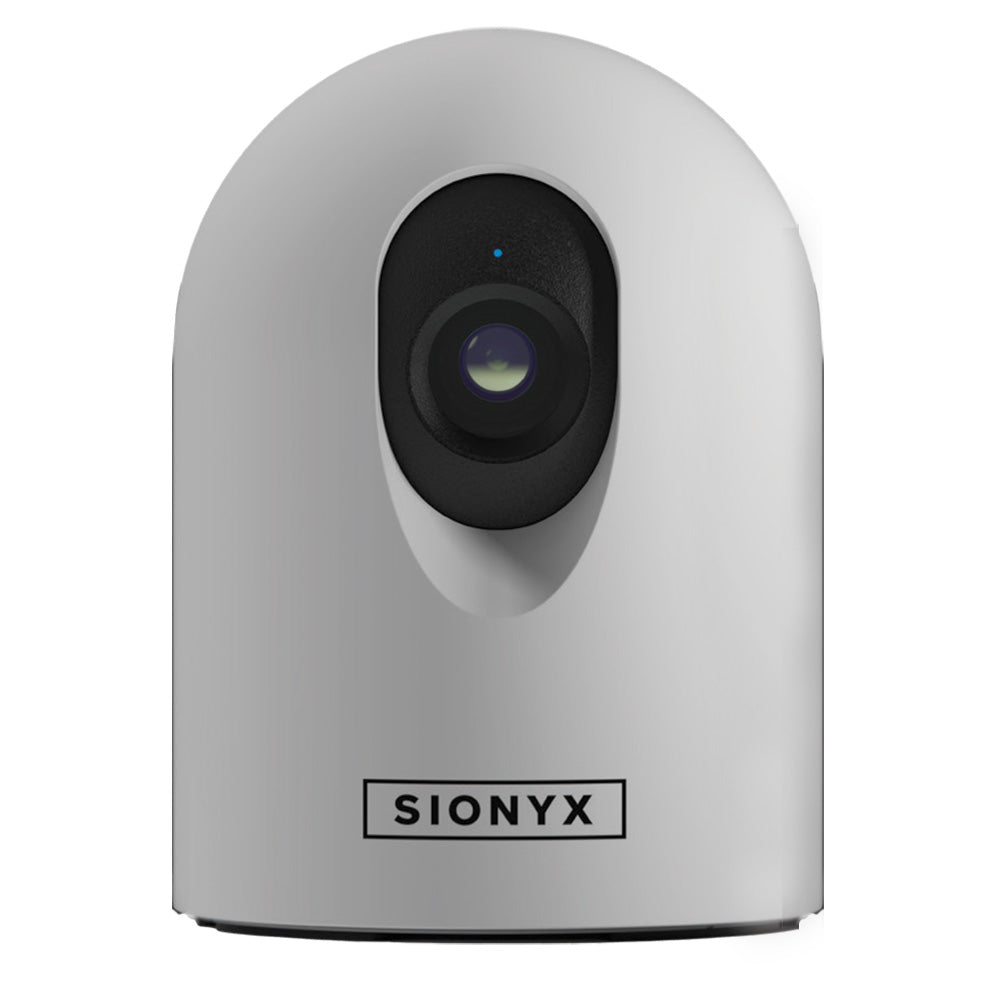

The C018800 is the SIONYX Nightwave Digital (White), a next-generation IP-based ultra-low-light marine camera. Unlike the standard analog version, this model is engineered specifically for seamless integration into modern networked vessel ecosystems using Power over Ethernet (PoE).
Key Features and Benefits
- High-Definition Imaging: Features a 1280 x 1024 Black Silicon CMOS sensor optimized for large-screen displays, providing superior clarity compared to traditional thermal or analog systems.
- Moonless Starlight Performance: Capable of detecting objects in near-total darkness (less than 1 millilux) without the need for active white light.
- Seamless MFD Integration: Connects directly to major multifunction displays (MFDs) from Garmin, Raymarine, and Navico (Simrad/B&G) via a digital IP network connection.
- Multi-Device Streaming: The digital architecture allows one camera to stream to multiple MFDs simultaneously or multiple cameras to be viewed on a single screen.

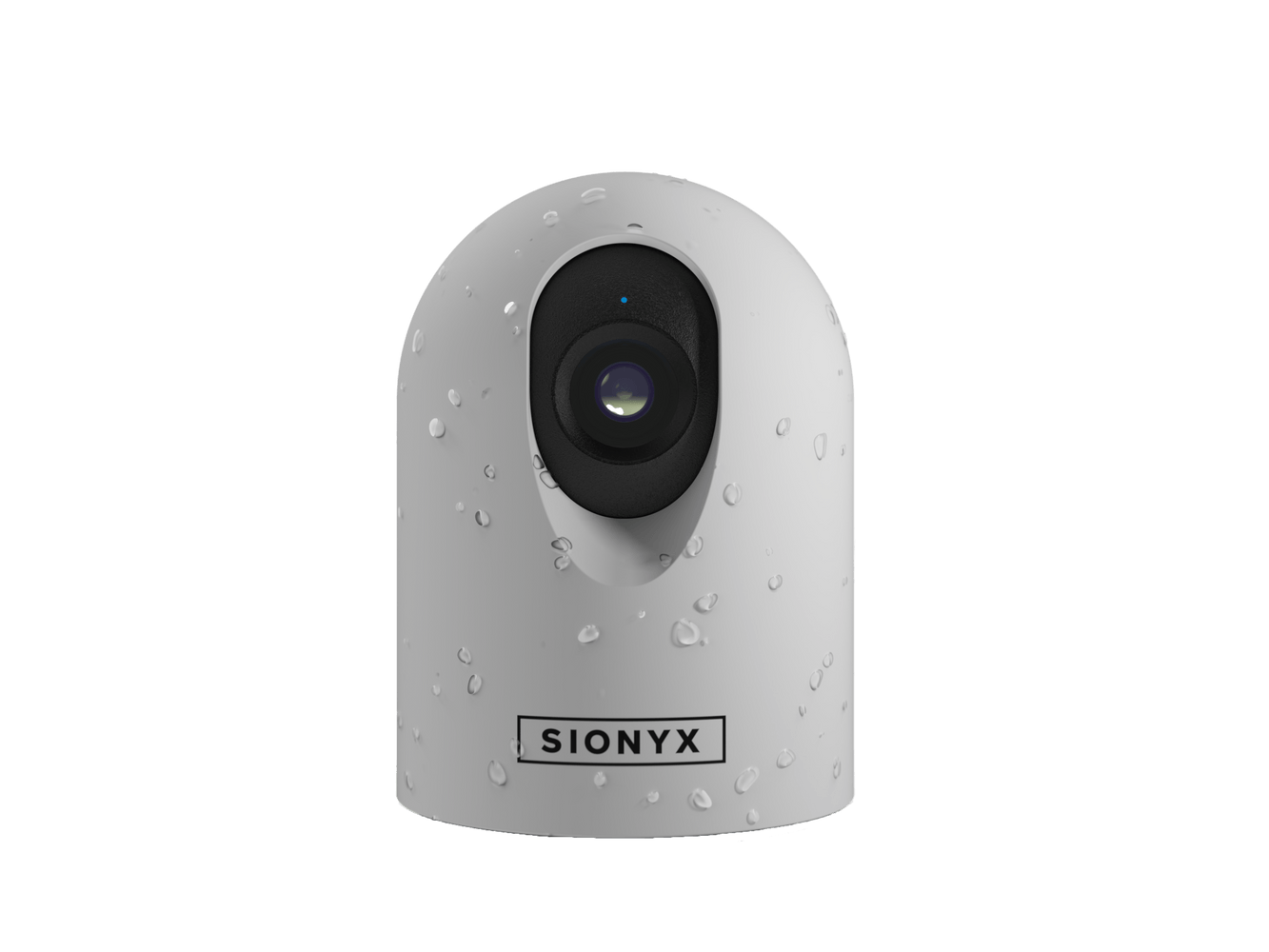

- Rugged Construction: IP67-rated for water and dust resistance, dry nitrogen purged to prevent fogging, and tested to military standards for shock and vibration.
Compatibility Information
The C018800 is designed for modern digital marine networks and requires different infrastructure than the analog Nightwave models.
- Connectivity: Primarily uses Wired Ethernet (PoE) for both power and data. It also features Wi-Fi and Bluetooth for mobile app control and software updates
- Power Requirements: Powered via PoE (37-57V DC). An IP67-rated PoE injector (9-36V DC input) is included for vessels without existing PoE switches.
- Mounting: Compatible with standard 4-bolt patterns or 1/4"-20 mounts, supporting both ball-up and ball-down orientations
Specifications
-
Camera:
- Image Sensor Color: XQE1350 BSI CMOS
- Resolution: 1280 x 1024
- Frame Rate: Up To 30 hz
- Min Illumination Moonless Starlight: <0.001 Lux
- Focus Range Fixed: 10M (32') to infinity
- Horizontal Field Of View: 44 deg.
- Day and Night: Auto day/night filter
- Visible Spectrum: 400 - 1200 nm
- Lens: 16 mm F/1.4
-
System:
- Power Poe: (37-57V DC / Typ 48V DC)
- Consumption: 5w Nominal
- Image Settings: Brightness, contrast, sharpness, saturation, day and night, HDR, orientation, noise reduction
- Mobile App: Ios and Android, Wi-Fi + Bluetooth, software updates, image settings
- IP Video Out: H264 Main Profile Main: 1280 x 1024 / Sub : 640 x 512, 30 FPS, 30 GOP
-
Environmental:
- Operating Temperature: -4 - 122° F(-20 - +50° C)
- Storage Temperature: -4 - 158° F (-30 - +70° C)
- Water Ingress: IP67
- Shock and Vibration: 20G Vertical, 10G Horizontal, Iec 60945; Mil-Std-810E
- Wind: 100 mph (161 kph)
- Solar UV Exposure: Mil-Std-810G
-
Detection Range:
- Man-Sized Object: 984' (300 m)
- Marine Vessel: 2.5 miles (4.02 km)
-
Physical:
- Weight: 2.2 Lbs (1 kg)
- Dimensions: 5" x 6.9" (127 x 175 mm)
- Material: UV-resistant polycarbonate
- Mounting Options: Ball upright or ball down 4-bolt pattern into fiberglass/wood/metal or 4 1/4-20 pattern into base
In the Box:
- Nightwave Digital marine night vision camera: Advanced ultra-low light imaging system with network connectivity and MFD compatibility
- Mounting hardware: Complete 4-bolt mounting system for secure installation on fiberglass, wood, or metal surfaces
- POE Injector: IP67, 9-36 V DC input, 48 V DC output
- 2M Power over Ethernet (PoE) cable: Single-cable solution for both power and data transmission
- Quick Start Guide: Overview of the installation diagram. QR codes for the full Installation Guide and Product Registration
