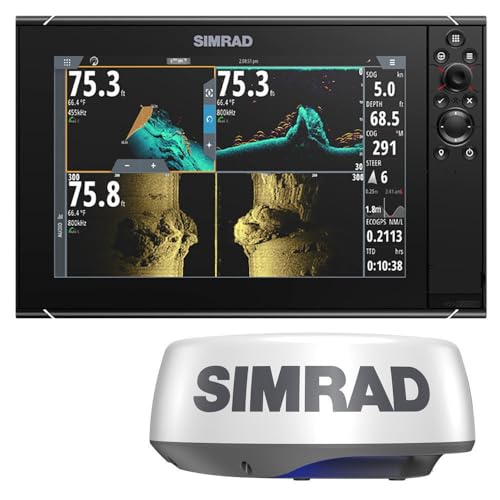

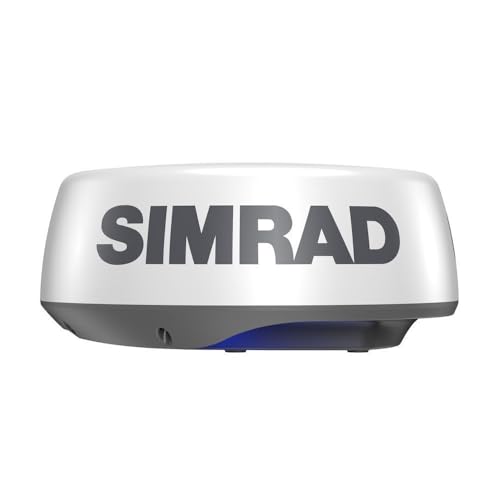

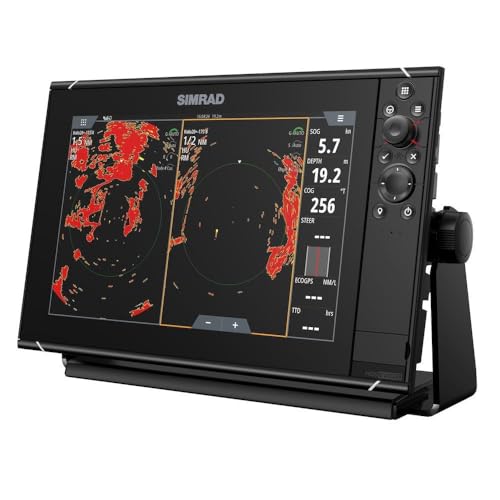

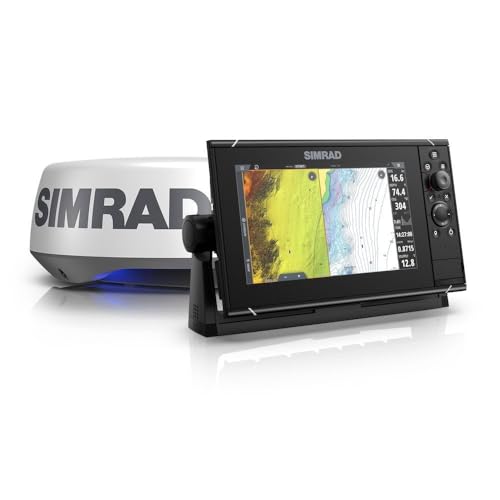

Simrad NSS12 evo3S 12" Multifunction Display Chartplotter/Fishfinder Radar Bundle with HALO20+ Radar Dome (000-15555-002)

Name: Simrad NSS12 evo3S 12" Multifunction Display Chartplotter/Fishfinder Radar Bundle with HALO20+ Radar Dome (000-15555-002)
Brand: SIMRAD
SKU: CWR-94116-KIT
Price: 5998.00 USD
Availability: InStock

Manufacturer Part: 000-15555-002

5 left

$ 5,998.00

Full Factory SIMRAD Warranty

Factory Authorized Dealer

25 Years of Excellent Customer Service and Support

Physical
Dimensions	352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71)
Weight	3.10kg/6.83lb
Environmental
Operating temperature range	-15°C to +55°C (5° F to 131° F)
Environment Shock Vibration	100,000 cycles of 20G
Storage temperature range	-20°C to +60°C (4°F to 140°F)
Water resitance	IPX6 and 7
Power
Supply voltage	10 - 31.2 V DC
Fuse rating	5A
Power consumption (Max)	28W
Display
Display backlight color	White
Display resolution	800 x 1280
Display screen brightness	1200 nits
Display size and type	High Visibility SolarMax HD® IPS 7" optically bonded TFT
Display viewing angles	80° top/bottom, 80° left/right
Connectivity
Ethernet	2 x 5 pin yellow connector x 1 Mbit
Bluetooth	Internal
NMEA2000 connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 connectivity	1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
Video connectivity	2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). Note Navico removed HDMI output April 2022
WiFi connectivity	Internal
Sonar
Sonar frequencies	40-250kHz 455-800kHz
Sonar max depth	3000’+ (tested with B175L)
Sonar output power	1kW RMS
Compliance	Compliance
GPS
GPS	Internal
GPS update rate	10 Hz
GPS channels	34
GPS correction	WASS, EGNOS, MSAS, GLONASS
GPS position accuracy	Horizontal Accuracy 3 m (9.8 ft)
GPS time to first fix	Cold start 50 sec, Satellite Reacquisition 5 sec
