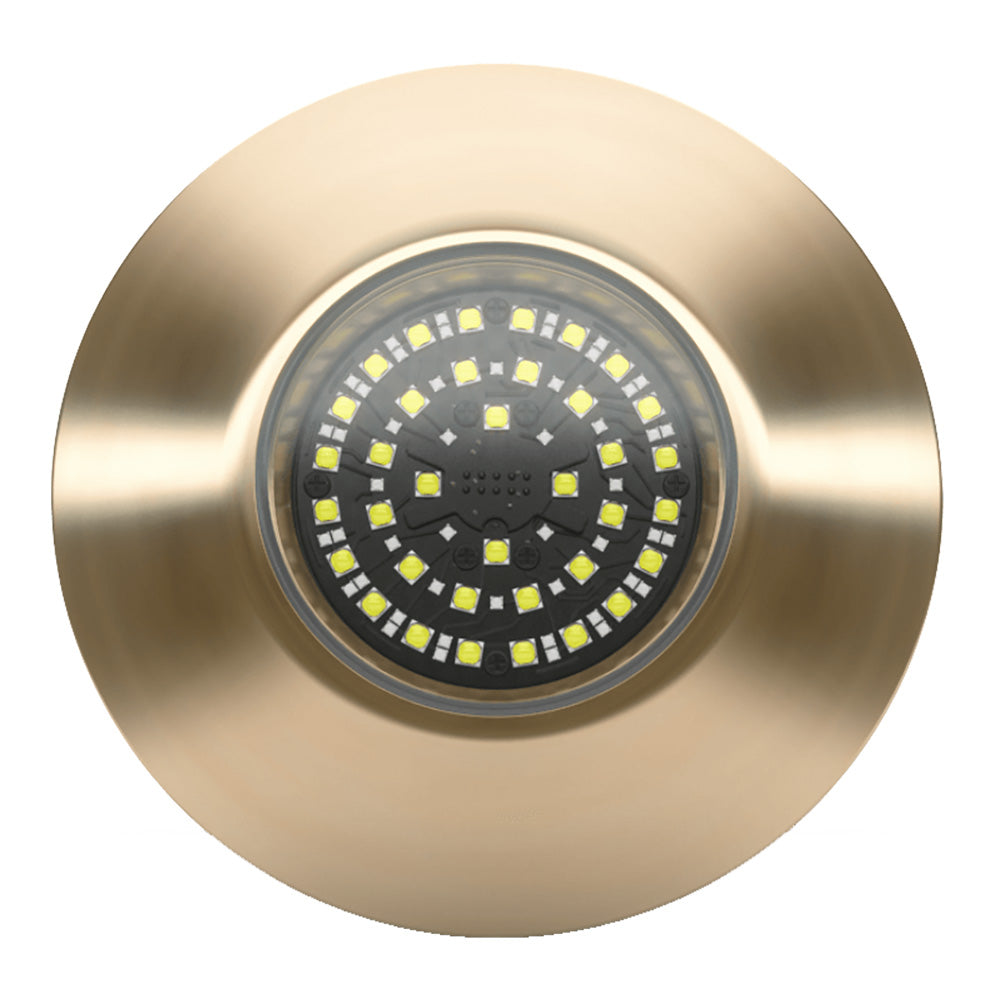

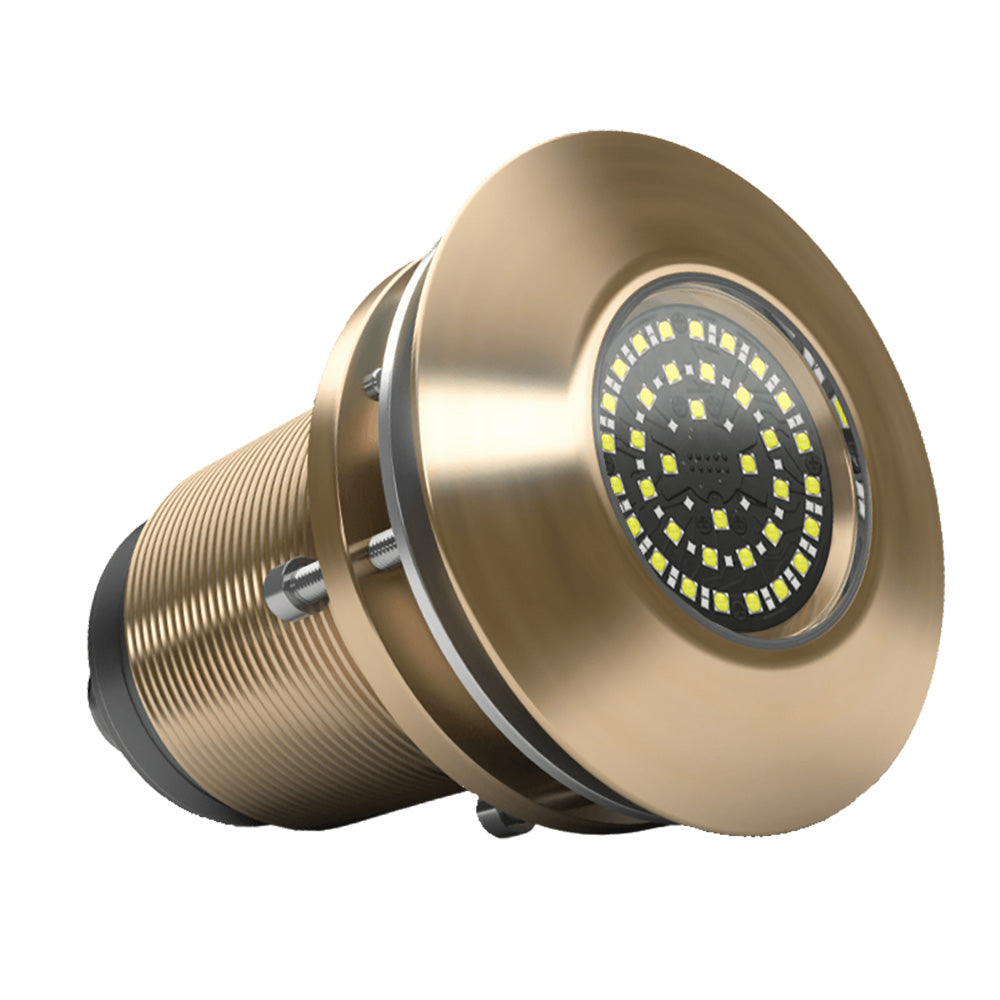

Lumishore TIX804 SUPRA 13,500 Lumen Blue/White 110° Interchangeable Thru-Hull Underwater LED Light (60-0556, 010-04527-00)

The Lumishore TIX804 SUPRA delivers 13,500 fixture lumens of blue/white underwater light through an interchangeable thru-hull assembly. Designed for compatible SUPRA systems, it combines high-output dual-color operation with an installation style that allows access to the light module via its dedicated thru-hull arrangement.

Key Features & Benefits

• 13,500 Lumen Output: Provides high-output underwater illumination with a broad beam.
• SUPRA Dual-Color Lighting: Supports blue and white operation through compatible SUPRA components.
• Interchangeable Installation: Allows the system to use the dedicated TIX thru-hull module arrangement.

Technical Specifications

• Lighting configuration: Blue/White
• Mounting design: Interchangeable Thru-Hull
• Product configuration: Single underwater light
• Fixture light output: 13,500 lumens
• Beam angle: 110°
• Electrical operating range: 10.5–31V DC
• Nominal electrical system: 12/24V
• Maximum current draw: 8.8A at 12V / 4.4A at 24V
• Fixture construction: Marine bronze housing
• Application: Marine vessel lighting
• Ingress protection: IP68
• LED array: 36 x 10W white; 48 x 3W blue
• Rated LED lifetime: 50,000+ hours

Compatibility

• SUPRA i-Connect Hub required for full dual-color operation; compatible MFD control needs SUPRA Bridge.
• Supports installation on suitable thru-hull locations subject to hull material, depth and access requirements; the internal light engine is serviceable from inside the boat.

Installation & Setup

• Follow the model-specific Lumishore mounting template, sealing methods and wiring requirements.
• Provide marine-grade overcurrent protection, strain relief and protected electrical connections.
• Select a suitable transom, side, or bottom location with inboard maintenance access; comply with hull bonding/isolation instructions.

Warranty

3-Year Manufacturer Warranty.
