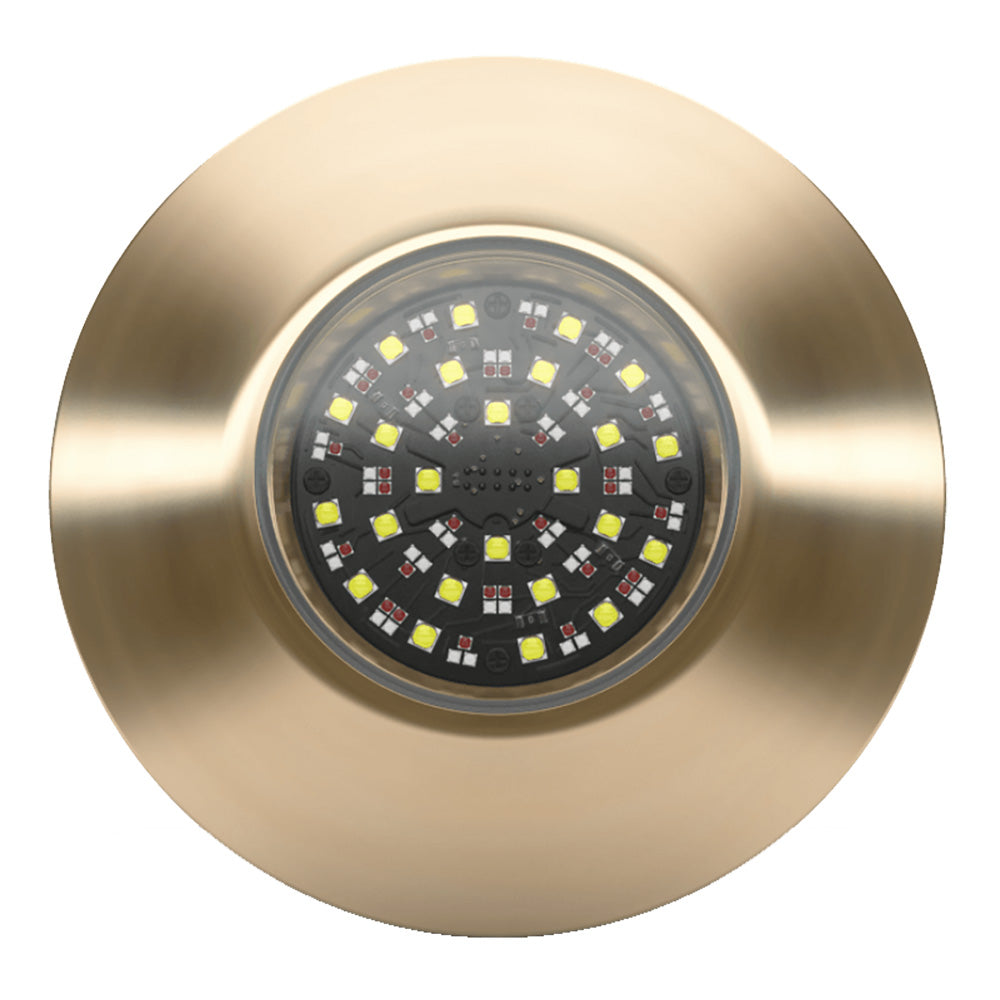

Lumishore TIX804 EOS 12,000 Lumen RGBW 110° Interchangeable Thru-Hull Underwater LED Light (60-0561, 010-04532-00)

The Lumishore TIX804 EOS combines 12,000 fixture lumens of RGBW underwater illumination with an interchangeable thru-hull installation design. Built for vessels requiring powerful, controllable color lighting, it integrates with the appropriate EOS control architecture and calls for careful planning of hull mounting and electrical connections.

Key Features & Benefits

• 12,000 Lumen RGBW Output: Provides high-output white and color-changing underwater lighting.
• EOS System Compatibility: Supports coordinated lighting effects using the correct EOS controls.
• Interchangeable Thru-Hull Format: Provides a dedicated TIX installation approach with serviceable light-module design.

Technical Specifications

• Lighting configuration: RGBW
• Mounting design: Interchangeable Thru-Hull
• Product configuration: Single underwater light
• Fixture light output: 12,000 lumens
• Beam angle: 110°
• Electrical operating range: 10.5–31V DC
• Nominal electrical system: 12/24V
• Fixture construction: Marine bronze housing
• Application: Marine vessel lighting
• Ingress protection: IP68

Compatibility

• Requires compatible EOS full-color control components.
• Supports installation on suitable thru-hull locations subject to hull material, depth and access requirements; the internal light engine is serviceable from inside the boat.

Installation & Setup

• Follow the model-specific Lumishore mounting template, sealing methods and wiring requirements.
• Provide marine-grade overcurrent protection, strain relief and protected electrical connections.
• Select a suitable transom, side, or bottom location with inboard maintenance access; comply with hull bonding/isolation instructions.

Warranty

3-Year Manufacturer Warranty.
