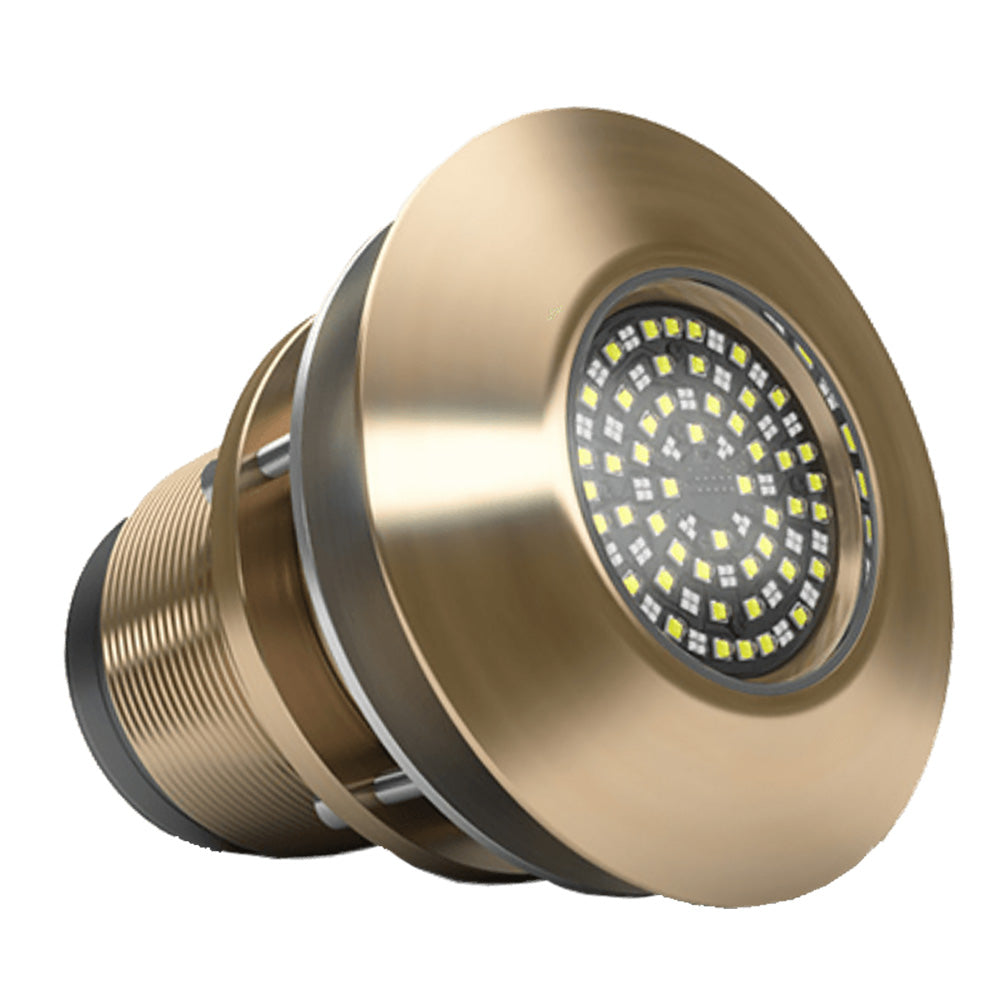

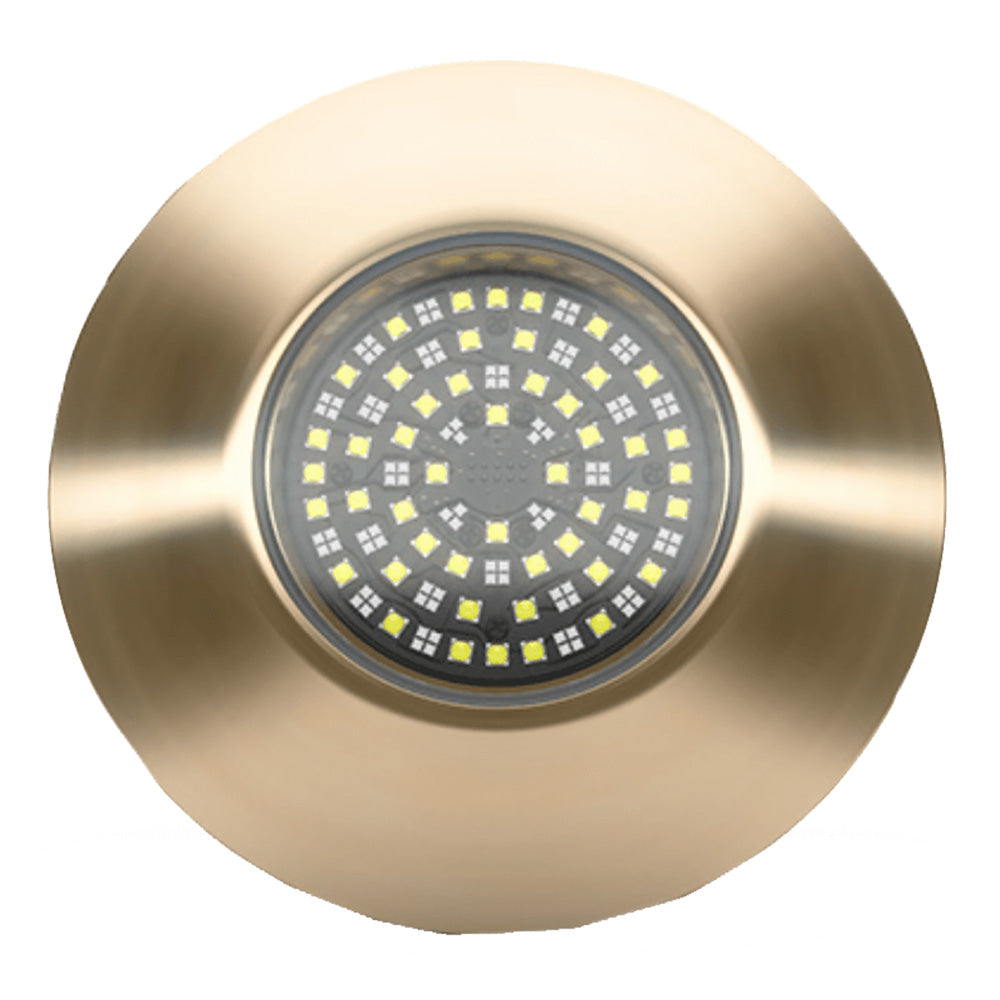

Lumishore TIX1604 SUPRA 20,000 Lumen Blue/White 110° Interchangeable Thru-Hull Underwater LED Light (60-0557, 010-04528-00)

The Lumishore TIX1604 SUPRA provides 20,000 fixture lumens of dual-color blue/white underwater lighting in an interchangeable thru-hull format. It is suited to larger multi-light installations where consistent SUPRA control integration and proper planning for hull penetration, wiring, and module access are essential.

Key Features & Benefits

• 20,000 Lumen Output: Offers the highest output in this SUPRA TIX group for large installations.
• Blue/White Selection: Allows dual-color lighting with the required SUPRA system components.
• TIX Interchangeable Design: Supports access to the light module through the prescribed thru-hull arrangement.

Technical Specifications

• Lighting configuration: Blue/White
• Mounting design: Interchangeable Thru-Hull
• Product configuration: Single underwater light
• Fixture light output: 20,000 lumens
• Beam angle: 110°
• Electrical operating range: 20–31V DC
• Nominal electrical system: 24V
• Fixture construction: Marine bronze housing
• Application: Marine vessel lighting
• Ingress protection: IP68

Compatibility

• Requires SUPRA-compatible lighting control equipment.
• Supports installation on suitable thru-hull locations subject to hull material, depth and access requirements; the internal light engine is serviceable from inside the boat.

Installation & Setup

• Follow the model-specific Lumishore mounting template, sealing methods and wiring requirements.
• Provide marine-grade overcurrent protection, strain relief and protected electrical connections.
• Select a suitable transom, side, or bottom location with inboard maintenance access; comply with hull bonding/isolation instructions.

Warranty

3-Year Manufacturer Warranty.
