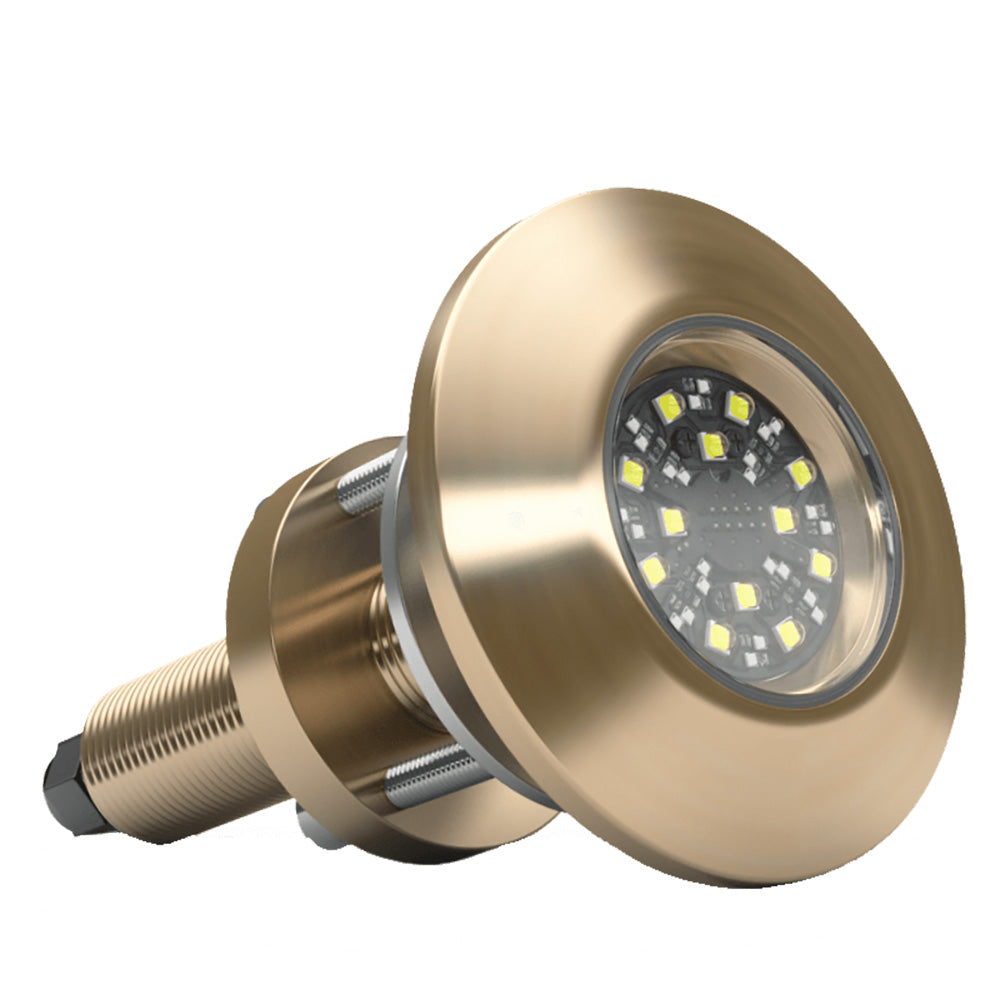

Lumishore THX404 SUPRA 8,150 Lumen Blue/White 110° Thru-Hull Underwater LED Light with External Driver (60-0545, 010-04516-00)

The Lumishore THX404 SUPRA combines blue and white underwater illumination in a thru-hull fixture with an external driver. Rated at 8,150 fixture lumens with a 110° beam, it is intended for vessels that need selectable dual-color lighting integrated into a compatible SUPRA control system.

Key Features & Benefits

• Dual Blue/White Lighting: Allows use of two useful underwater-light colors within the SUPRA system.
• External Driver Arrangement: Separates the driver component from the thru-hull light assembly for the prescribed electrical layout.
• 8,150 Lumen Output: Publishes brightness as output from the complete light fixture.

Technical Specifications

• Lighting configuration: Blue/White
• Mounting design: Thru-Hull
• Product configuration: Light and external driver
• Fixture light output: 8,150 lumens
• Beam angle: 110°
• Electrical operating range: 10.5–31V DC
• Nominal electrical system: 12/24V
• Fixture construction: Marine bronze housing, borosilicate glass lens
• Application: Marine vessel lighting
• Ingress protection: IP68

Compatibility

• SUPRA i-Connect Hub required for advanced color functions; compatible MFD control uses SUPRA Bridge.
• Hull construction is critical. Follow the model-specific bonding and isolation instructions; do not assume suitability for conductive hull materials.

Installation & Setup

• Follow the model-specific Lumishore mounting template, sealing methods and wiring requirements.
• Provide marine-grade overcurrent protection, strain relief and protected electrical connections.
• Select a suitable transom, side, or bottom location with inboard maintenance access; comply with hull bonding/isolation instructions.

Warranty

3-Year Manufacturer Warranty.

What's in the Box

• THX404 light
• THX404 external LED driver
