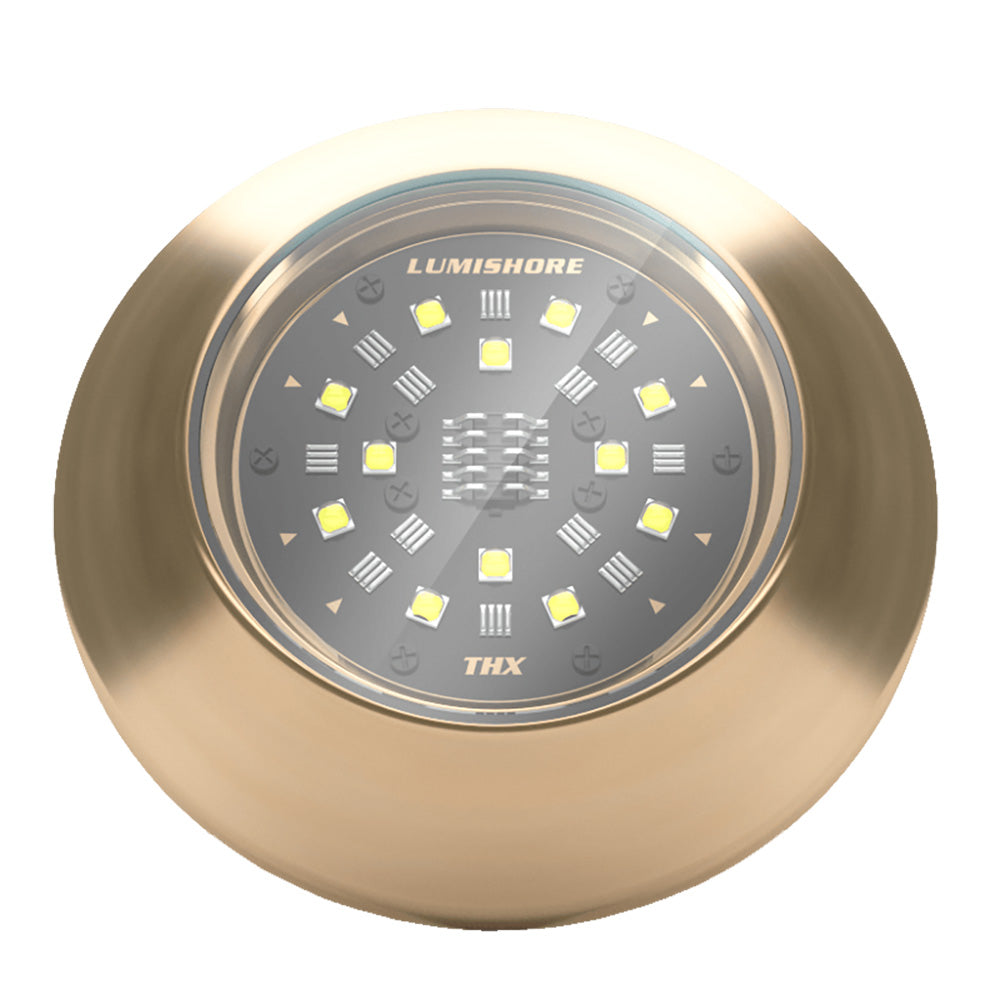

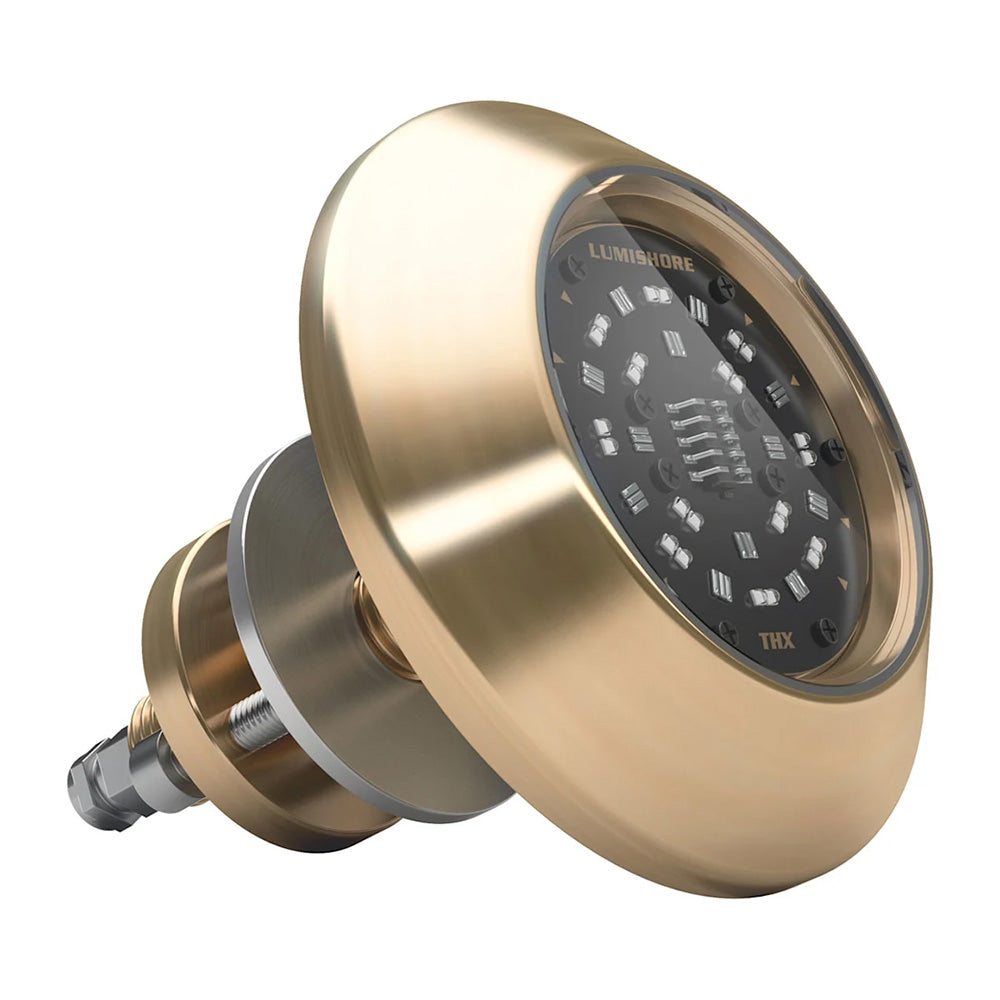

Lumishore THX204 ORA 6,100 Lumen White 110° Thru-Hull Underwater LED Light (60-0544, 010-04515-00)

The Lumishore THX204 ORA is a high-output white underwater light for thru-hull installations. Its 6,100 fixture lumens and broad 110° beam help illuminate the water around a boat, while its dedicated white-light design suits owners who prefer a fixed lighting color rather than a color-changing system.

Key Features & Benefits

• Dedicated White Illumination: Provides a consistent white underwater-light color without RGBW control requirements.
• 6,100 Lumen Output: Delivers manufacturer-published fixture output through a wide-angle underwater beam.
• Thru-Hull Construction: Designed for installation through a compatible prepared hull opening.

Technical Specifications

• Lighting configuration: White
• Mounting design: Thru-Hull
• Product configuration: Single underwater light
• Fixture light output: 6,100 lumens
• Beam angle: 110°
• Electrical operating range: 10.5–31V DC
• Nominal electrical system: 12/24V
• Maximum current draw: 4.9A at 12V / 2.4A at 24V
• Fixture construction: Marine bronze housing, borosilicate glass lens
• Application: Marine vessel lighting
• Ingress protection: IP68
• Mounting hole diameter: 16.5mm (0.65 in.)
• Face diameter: 95mm (3.75 in.)
• Mounting depth clearance: 96mm (3.78 in.)
• Average power draw: 59W

Compatibility

• Compatible with a properly switched and fused DC lighting circuit.
• Hull construction is critical. Follow the model-specific bonding and isolation instructions; do not assume suitability for conductive hull materials.

Installation & Setup

• Follow the model-specific Lumishore mounting template, sealing methods and wiring requirements.
• Provide marine-grade overcurrent protection, strain relief and protected electrical connections.
• Select a suitable transom, side, or bottom location with inboard maintenance access; comply with hull bonding/isolation instructions.
• Garmin states this THX204 variant is not suitable for certain conductive hull materials, including wood and carbon fiber; check the installation guide before selecting it for those hulls.

Warranty

3-Year Manufacturer Warranty.

What's in the Box

• THX204 light
• mounting fixings
