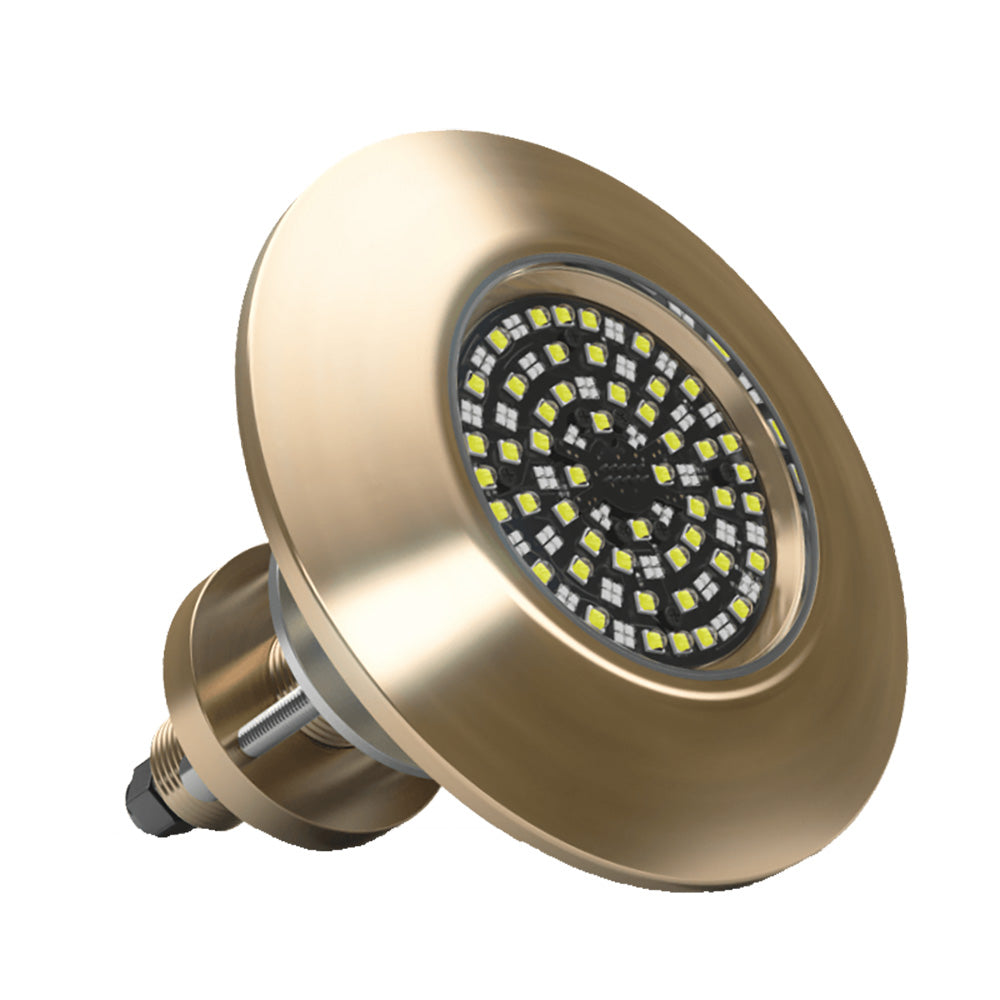

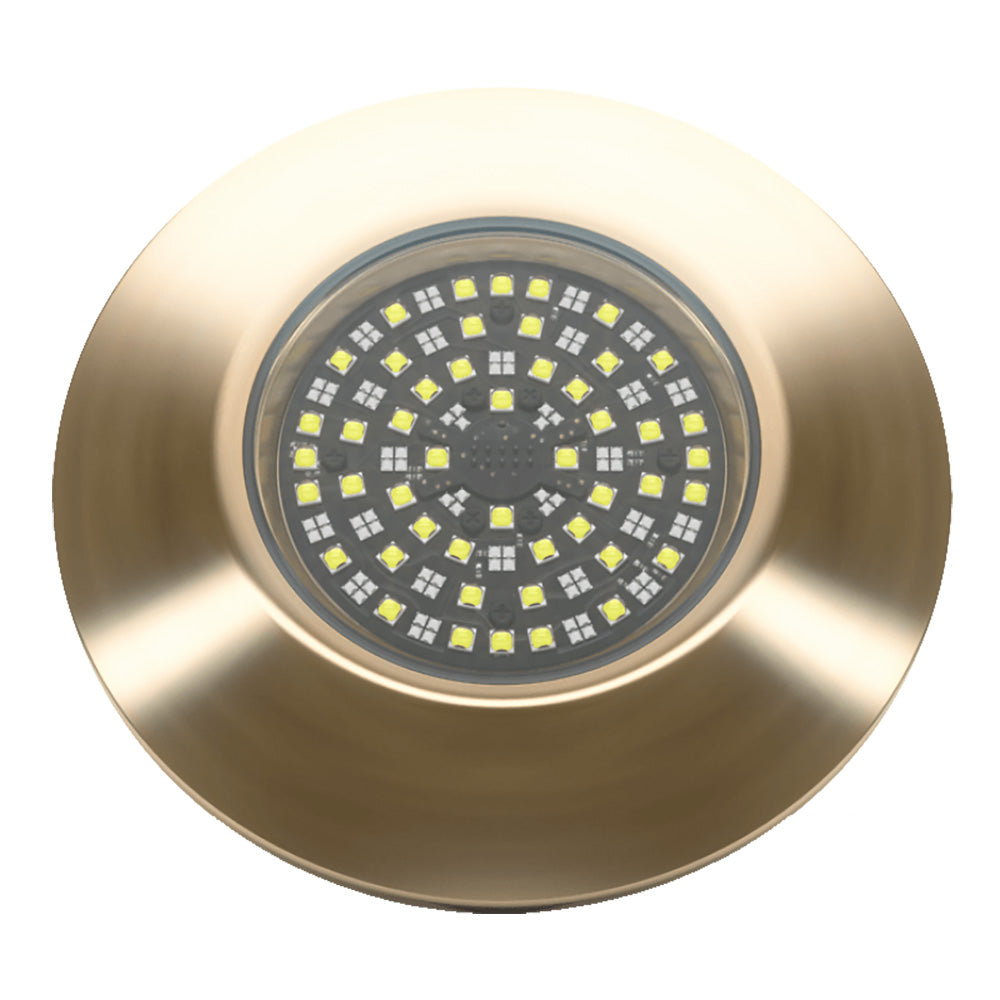

Lumishore THX1604 SUPRA 20,000 Lumen Blue/White 110° Thru-Hull Underwater LED Light with External Driver (60-0548, 010-04519-00)

The Lumishore THX1604 SUPRA delivers 20,000 fixture lumens of blue/white light for larger or more demanding underwater lighting layouts. This thru-hull model uses an external driver and a wide 110° beam, making electrical integration, hull access, and correct SUPRA system components important parts of the installation.

Key Features & Benefits

• 20,000 Lumen High Output: Supports larger illuminated water areas and demanding multi-light layouts.
• SUPRA Blue/White Control: Provides dual-color lighting with compatible SUPRA control equipment.
• Thru-Hull Light and Driver: Uses an external-driver arrangement that must be accommodated during installation.

Technical Specifications

• Lighting configuration: Blue/White
• Mounting design: Thru-Hull
• Product configuration: Light and external driver
• Fixture light output: 20,000 lumens
• Beam angle: 110°
• Electrical operating range: 20–31V DC
• Nominal electrical system: 24V
• Maximum current draw: 6.5A maximum at 24V
• Fixture construction: Marine bronze body with borosilicate glass lens
• Application: Marine vessel lighting
• Ingress protection: IP68

Compatibility

• Requires compatible SUPRA hub/control system; bridge supports compatible display/MFD integration.
• Hull construction is critical. Follow the model-specific bonding and isolation instructions; do not assume suitability for conductive hull materials.

Installation & Setup

• Follow the model-specific Lumishore mounting template, sealing methods and wiring requirements.
• Provide marine-grade overcurrent protection, strain relief and protected electrical connections.
• Select a suitable transom, side, or bottom location with inboard maintenance access; comply with hull bonding/isolation instructions.

Warranty

3-Year Manufacturer Warranty.

What's in the Box

• THX1604 light
• external LED driver
