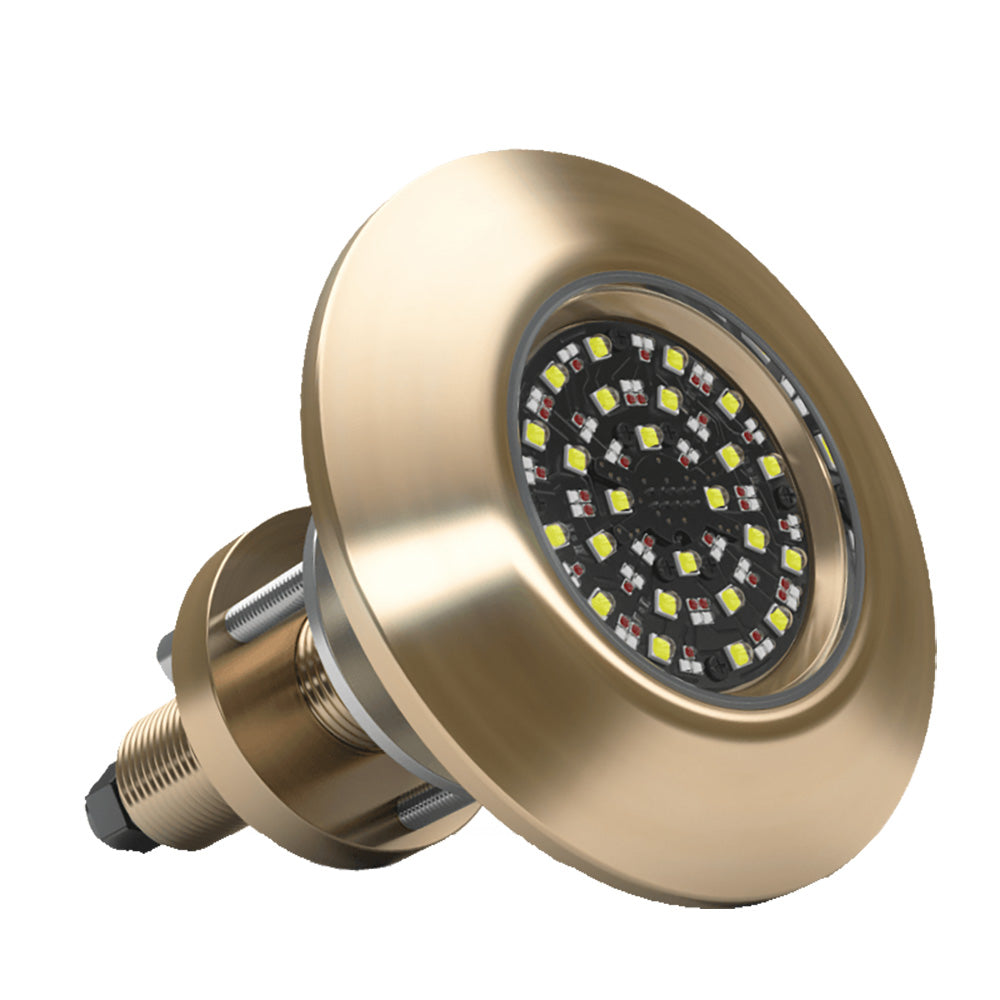

Lumishore EOS THX804 12,000 Lumen RGBW 110° Thru-Hull Underwater LED Light with External Driver (60-0549, 010-04520-00)

The Lumishore THX804 EOS provides high-output RGBW underwater illumination through a marine-bronze thru-hull fitting and separately installed driver. Its wide 110° optic is designed to spread light across the water behind the vessel, while the dedicated EOS control architecture supports system-level lighting adjustment.

Key Features & Benefits

• Measured fixture brightness: The complete fixture is rated at 12,000 lumens, a measurement of light emitted by the assembled unit rather than theoretical LED-source output.
• Wide-angle beam: The 110° beam helps produce a broad underwater glow.
• External-driver architecture: The light head and electrical driver are separate components for a purpose-built thru-hull installation.
• Lighting control: EOS controls support full RGBW color selection and lighting effects.
• Seawater-ready design: Marine-grade aluminum-bronze body and borosilicate glass lens are specified for underwater installation.
• Electrical protection: Published protection functions include low-voltage, reverse-polarity and surge protection.

Technical Specifications

• Light output: 12,000 fixture lumens
• Light colors: RGBW
• LED complement: 24 white, 24 green, 24 blue and 32 red LEDs
• Beam angle: 110°
• Supply voltage: 10.5–31V DC
• Current draw: 8.8A at 12V / 4.4A at 24V
• Front diameter: 4.33 in.
• Overall depth: 6.21 in.
• Housing: marine-grade aluminum bronze
• Lens: borosilicate glass
• Mounting: thru-hull with external driver
• Ingress protection: IP68
• Supplied light cable: 9.8 ft (3m)

Compatibility

• For Lumishore EOS lighting systems and their compatible hub/controller hardware; not directly interchangeable with other Lumishore color-control families.
• Suitable for properly engineered transom, side or bottom thru-hull mounting locations.

Installation & Setup

• Provide a properly sealed thru-hull penetration with required rear service access.
• Mount and wire the external driver following the manufacturer’s system instructions.
• Protect the electrical supply according to the light load and vessel wiring standards.

Warranty

3-Year Limited Manufacturer Warranty.

What's in the Box

• One THX804 underwater light with attached 3m cable
• Matching external driver
