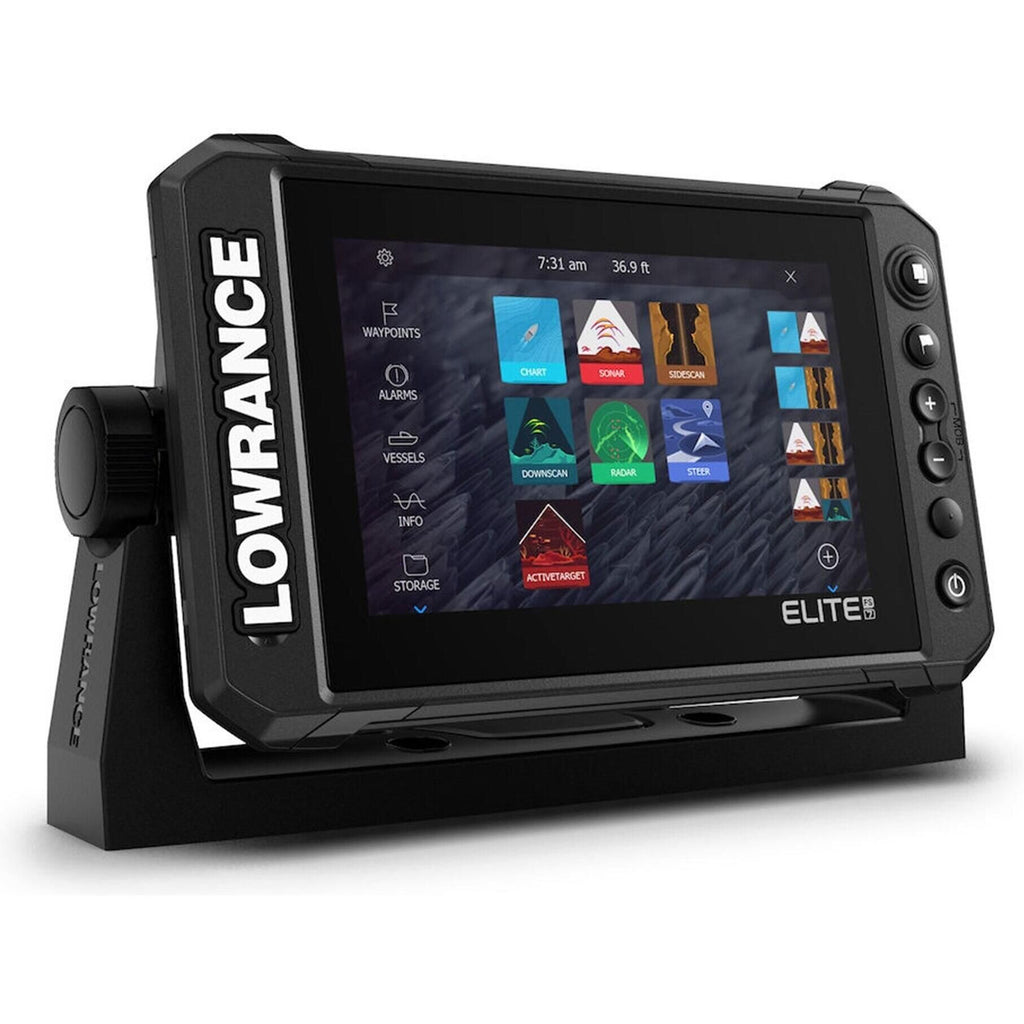

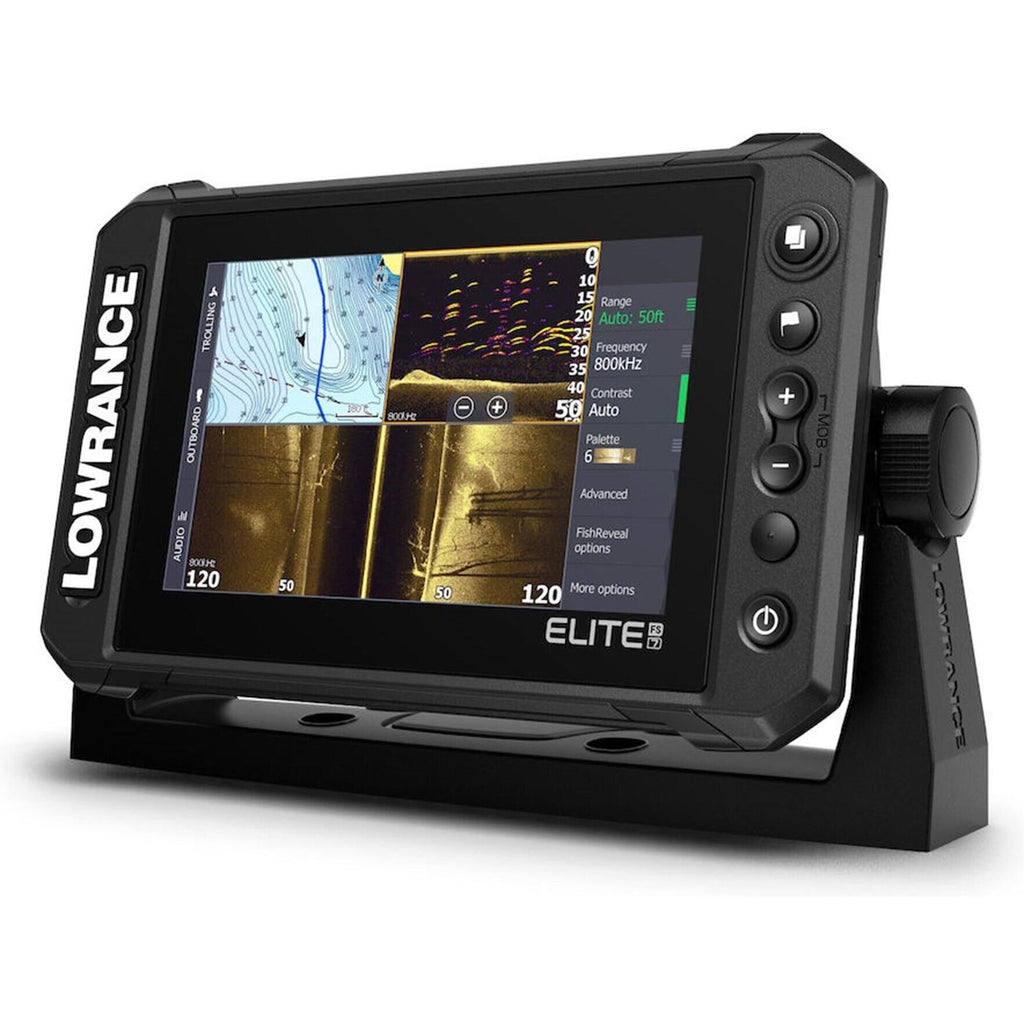

Lowrance Elite FS 7 Explorer All-Season Pack - Elite FS7 Display, HDI Skimmer CHIRP/Downscan Transducer, Ice Transducer, Bag, and 12V Battery & Charger (000-15885-001)

Lowrance Elite FS 7 All Season Pack

The Explorer Series bring together The Elite Fishing System (FS) which combines the power of Lowrance's proven fishfinding tools with the ultimate in live sonar technology; ActiveTarget, all in one convenient pack designed to make your ice fishing experience the best it can be.

Features:

• ActiveTarget™ Live Sonar ready
• Active Imaging 3-in-1 ready
• FishReveal™
• Preloaded C-MAP® Contour+ inland and coastal charts with high resolution, bathymetric 1' contours on 15,000+ U.S. lakes and 9,400+ lakes in Canada
• Mapping options including C-MAP®, Navionics® and more
• C-MAP® Easy Routing, Navionics® Autorouting capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000® and Ethernet connectivity
• Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

Specifications:

• Display:
  • Backlight Color: Pure White LED
  • Display Resolution: 800x480
  • Screen Brightness: >1200 nits
  • Viewing Angles: 50 deg., top 60 deg., bottom 70 deg. left/right
• Connectivity:
  • Bluetooth: Integrated
  • Ethernet Ports: 1 virtual ethernet port
  • Connectivity Wi Fi: Internal 802.11b/g/n
  • NMEA 0183 Sentences supported: None
  • NMEA 2000 Connectivity: 1x Micro-C
  • PC Connectivity: None
  • SD Card Storage: 1 micro SD card up to 32GB
  • Charts supported: C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
• Environment:
  • Humidity: 60°C, 95% relative humidity (RH) for 18 hours
  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
  • Shock Vibration: 100,000 cycles of 20 G
  • Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
  • Waterproofrating: IPX7 with card door closed
• GPS:
  • Correction: DGPS, WAAS, MSAS, EGNOS, GLONASS
  • GPS Receiver Channels: 16
  • Position Accuracy: 20m RMS
  • Time to First Fix: 30s
  • Update rate: 10 Hz
• MFD:
  • AIS: AIS Chart overlay. Target vessel details
  • Autopilot: Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway)
  • Cartography included: C-MAP Contour + (US models)Navionics basemap (AMER, AUS/NZ and ROW models)
  • GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
  • Sonar Compatibility: Integrated CHIRP, Broadband, Active Imaging, DownScan, Active Imaging SideScan
  • Compatible with: Sonar Hub, Structure Scan, Structure Scan 3D, LiveSight, Active Target
  • Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
  • Weather: SiriusXM via WM-4 (USA only)
• Physical:
  • Compass Safe: 12" (300 mm)
  • Mounting Type: Gimbal Bracket or Dash Flush Mount
  • Weight: 2.20 lbs (1.00 kg)
  • Interface: TouchscreenZoom +/-MOB = (+/- combined)Pages, WaypointLight/Power
  • Dimensions (W x H x D): 10.45" x 6.39" x 4.27"

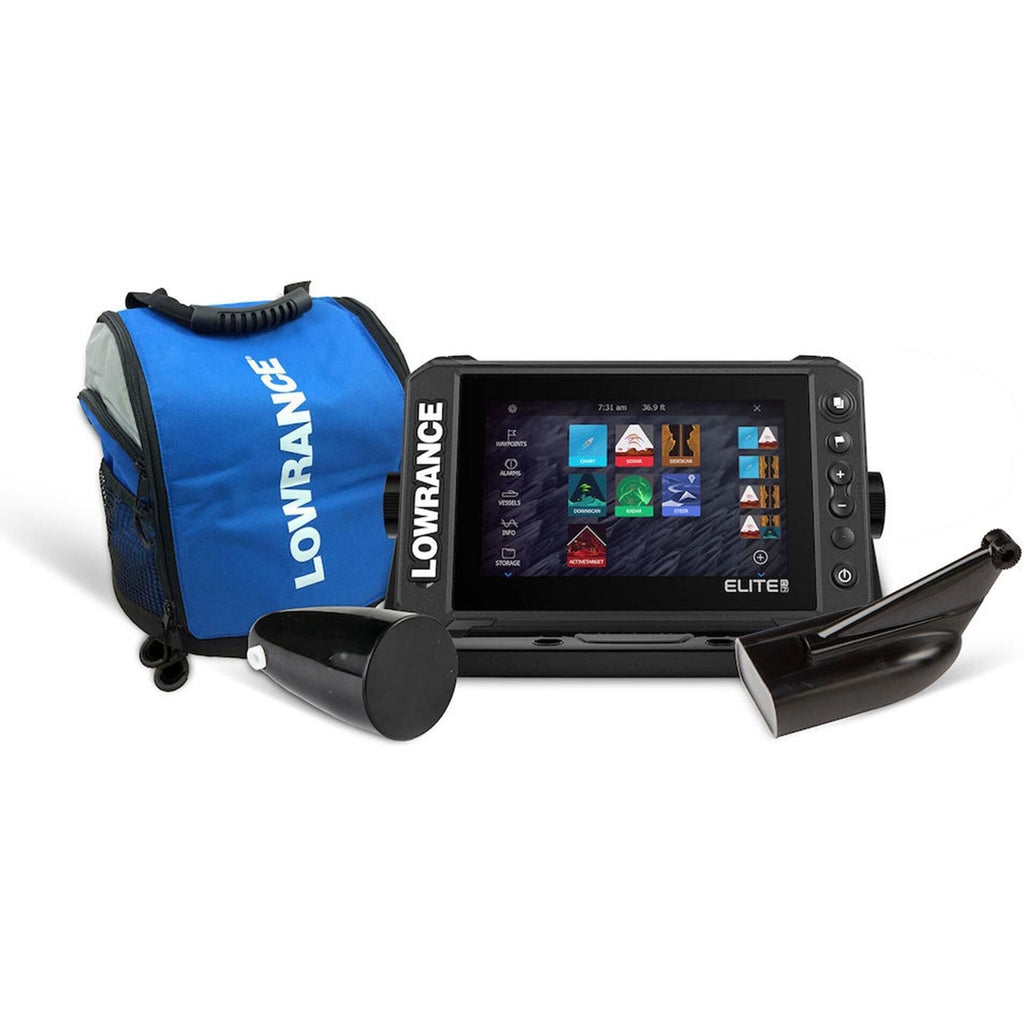

Included:

• Elite FS 7
• Carrying bag
• HDI skimmer transducer
• Suction cup mount
• Ice transducer
• Mounting platform
• Power cable
• 12V battery and charger
