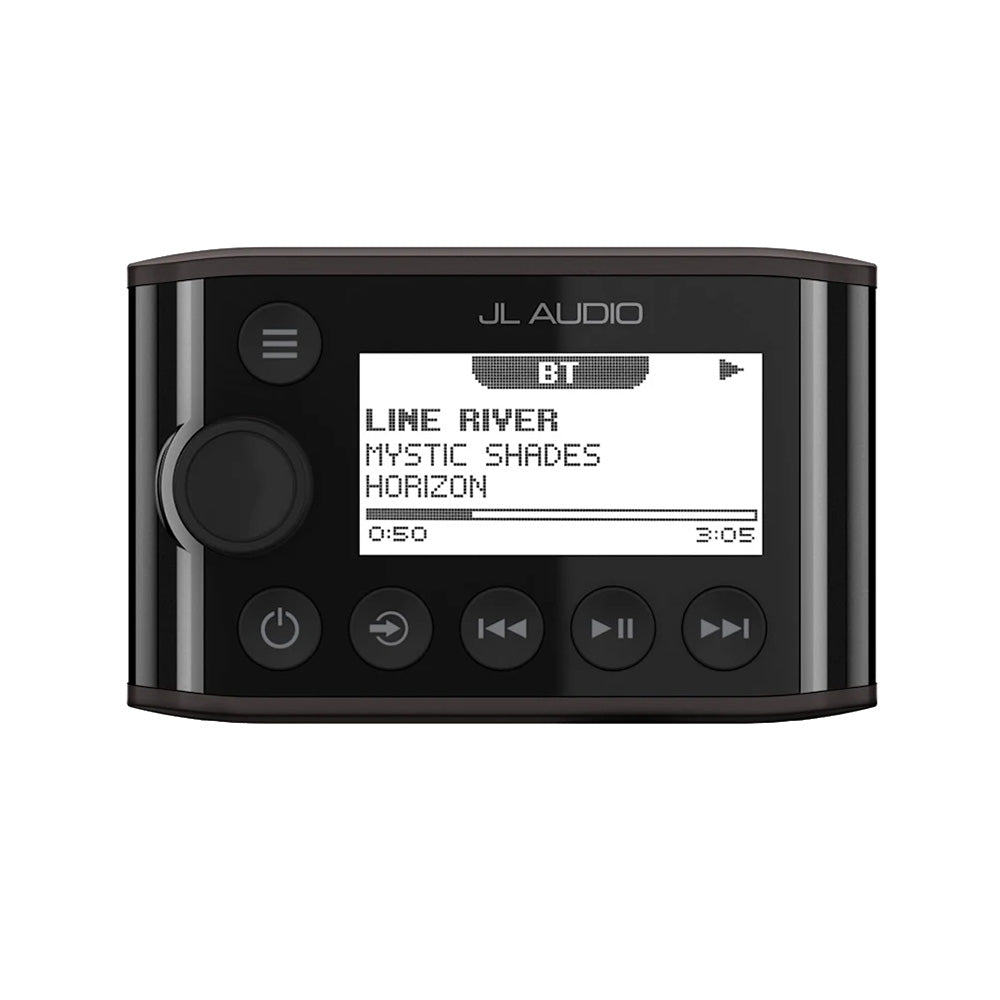

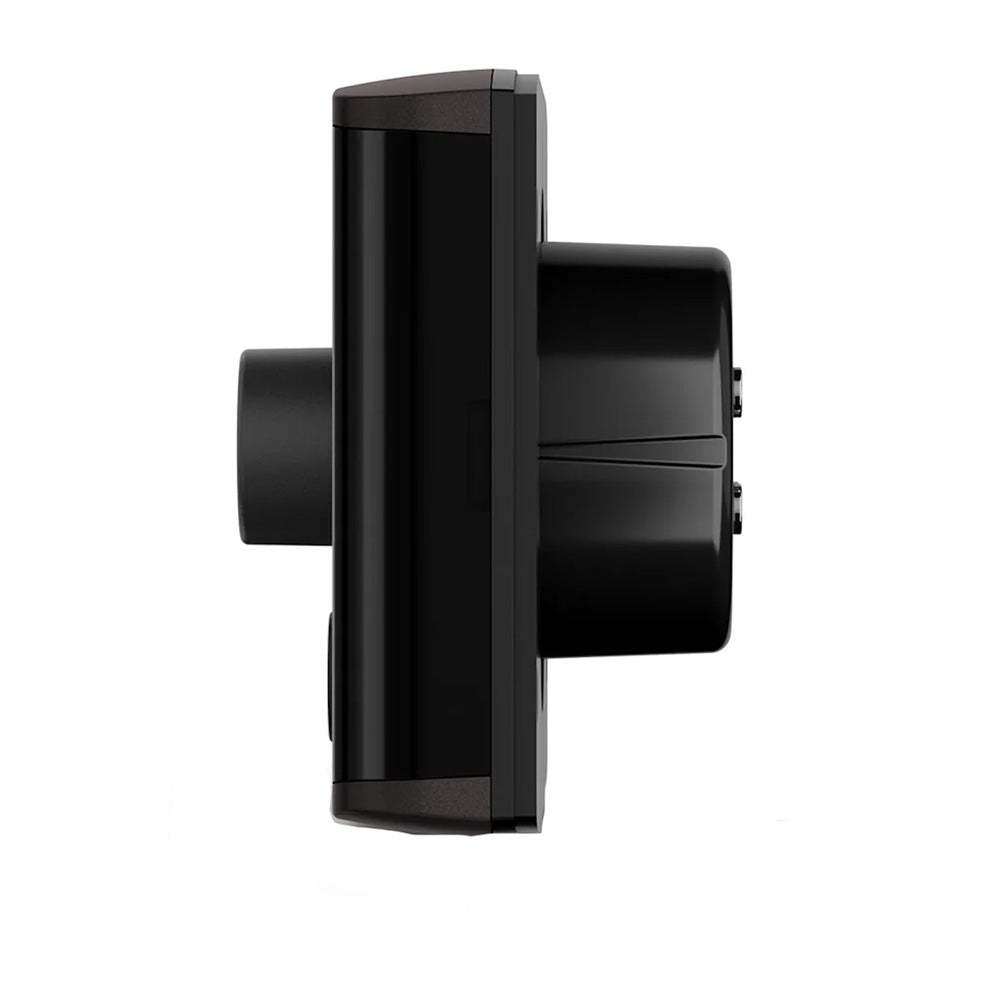

JL Audio NRX-300 NMEA 2000 Wired IPX7 Marine Stereo Remote with 2.6" LCD (010-01628-06)

Operate your compatible JL Audio marine head unit from a second location aboard the boat with the NRX-300 wired remote. Its optically bonded monochrome screen and tactile controls provide access to audio zones and can display compatible vessel data available on the NMEA 2000 network.

Key Features

• 2.6" optically bonded monochrome LCD
• NMEA 2000 connectivity through a single network cable
• Controls up to four audio zones when supported by the host stereo
• Can display compatible network vessel data
• IPX7 front control-surface rating when correctly installed

Technical Specifications

• Display: 2.6" optically bonded monochrome LCD
• Dimensions: 4.33" W x 2.76" H x 1.97" D
• Input Voltage: 10.8–16V DC
• Maximum Current Draw: 110mA
• NMEA 2000 Ports: 1
• NMEA 2000 LEN: 3 (150mA)
• Ingress Protection: IPX7 (installed control surface)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Warranty: 3 years

Compatibility

Garmin/JL Audio identify compatibility with A60 and A60-H marine head units. This remote is not compatible with JL Audio MediaMaster source units. Available zones and data depend on connected equipment and network configuration.

Installation Notes

Connect to an appropriately powered and terminated NMEA 2000 network. Check dash cutout and rear clearance before mounting.

What’s in the Box

• JL Audio NRX-300 wired remote
• Mounting gasket
• Four mounting screws
• Two screw covers
• NMEA 2000 T-connector
• Documentation
