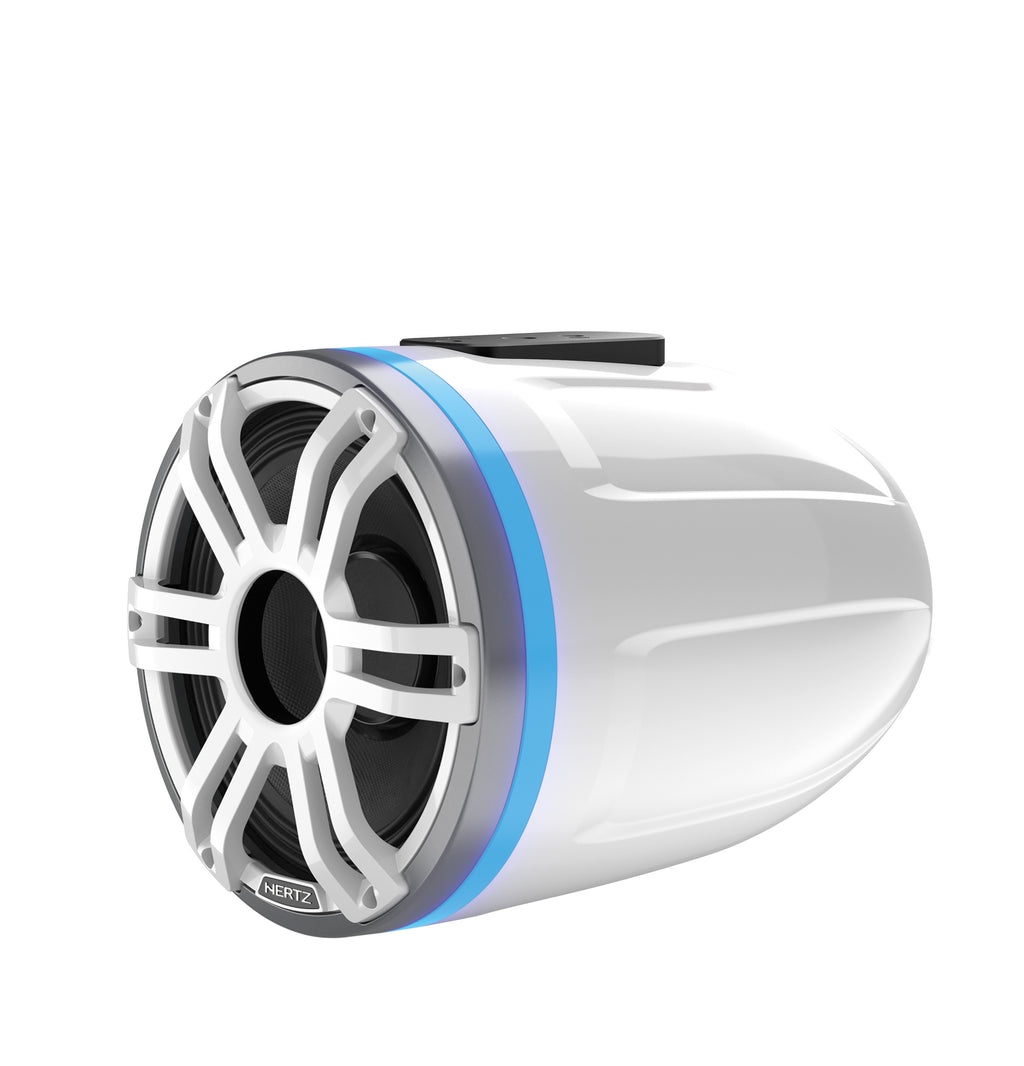

Hertz HTX 8H S-FL-SW HTX 8" 200W RMS 4-Ohm Marine Tower Horn-Loaded Compression Driver Speaker with RGB LED Lighting, Flat Mount, Sport Silver White, Each (78049013)

The Hertz HTX 8H S-FL-SW is an individually sold 8-inch marine tower speaker for open-air boat audio. Its flat mount installation design and sport silver white styling are tailored to the tower/arch mounting configuration, while integrated RGB illumination brings coordinated lighting to the speaker enclosure. Its common-motor compression driver and engineered waveguide support high-efficiency, long-distance sound projection.

Key Features

• Sold individually as one tower speaker, not a pair.
• Continuous power handling: 200W RMS; peak power handling: 400W.
• 4-ohm impedance for appropriately rated marine amplifiers.
• Integrated multicolor RGB LED lighting; compatible controller selected separately.
• IP65 water-jet resistance, ASTM D4329 UV testing and ASTM B117 salt-spray testing.
• Adjustable rear/logo orientation helps maintain proper appearance at different mounting angles.
• Flat-mount tower version intended for a compatible structural surface, rather than the factory clamp-mount version.
• Hertz HTX CLAMP.1 is a separately available optional accessory if a supported tube mounting approach is required.

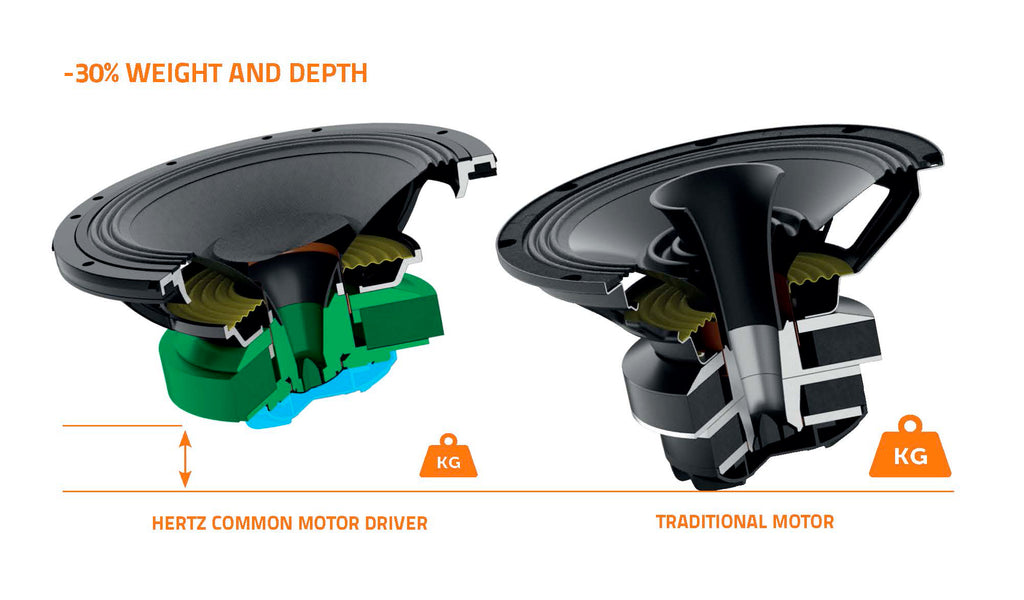

• Shared/common motor compression-driver technology with FEM-optimized waveguide and controlled directivity.
• Built-in sealed crossover incorporates resettable driver protection.
• Aimed high-frequency projection supports listening well beyond the cockpit.

Technical Specifications

• Sales unit: one complete marine tower speaker
• Nominal woofer size: 200mm (8 in.)
• Nominal impedance: 4 ohms
• Power handling: 200W RMS / 400W peak
• Lighting: integrated RGB LED
• Ingress protection: IP65
• Mounting configuration: Flat Mount
• Finish: Sport Silver White
• Sensitivity: 98dB
• Woofer LF response: 40Hz–2kHz; integrated high-frequency driver extends system bandwidth
• Woofer voice-coil: 51.8mm glass-fiber former
• LF magnet: 140mm ferrite common motor
• Woofer cone: water-repellent pressed paper; polycotton surround
• LF Re: 3.3 ohms
• LF Fs: 88Hz
• LF moving mass (Mms): 20.5g
• LF compliance (Cms): 0.15mm/N
• LF force factor (BL): 9
• LF Qms: 3.29
• LF Qes: 0.34
• LF Qts: 0.31
• LF Vas: 10L
• LF inductance (Le): 0.28mH
• LF Xmax: 3.4mm
• LF Xmech: 8.3mm
• Overall front dimension A: 225mm (8.86 in.)
• Dimension B: 308.2mm (12.13 in.)
• Dimension C: 231mm (9.09 in.)

Compatibility

• Compatible with marine systems using 4-ohm amplification and the explicitly designated mounting format.
• RGB lighting compatible with Hertz marine RGB control accessories; color controller not assumed included.

Installation Considerations

• Connect to a marine amplifier with a stable 4-ohm output and continuous power appropriate for the speaker.
• Use marine-grade electrical connectors and protect audio/RGB wiring from tower movement, vibration and abrasion.
• Confirm overhead clearance, structural load rating, mounting fasteners and torque before operating the vessel.
• Feed RGB lighting through a compatible fused 12V control circuit as documented by Hertz.
• Install on a structurally suitable flat mounting area; do not assume a clamp is included in a flat-mount SKU.
