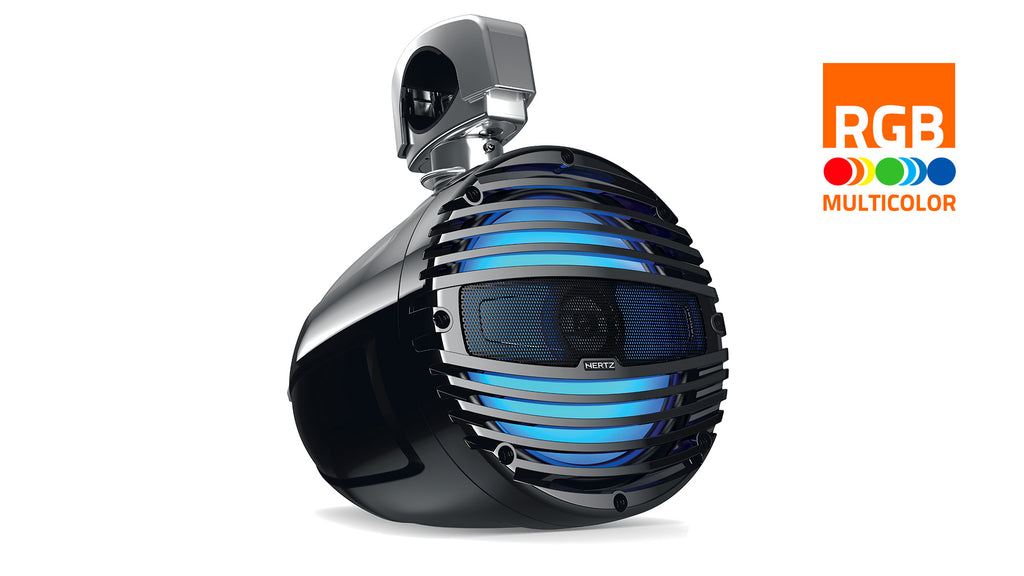

Hertz HTX 8 M-CL-TC HTX 8" 100W RMS 4-Ohm Marine Tower Coaxial Speaker with RGB LED Lighting, Clamp Mount, Total Charcoal, Each (78049006)
1/3
  • Hertz HTX 8 M-CL-TC HTX 8" 100W RMS 4-Ohm Marine Tower Coaxial Speaker with RGB LED Lighting, Clamp Mount, Total Charcoal, Each (78049006)
  • Hertz HTX 8 M-CL-TC HTX 8" 100W RMS 4-Ohm Marine Tower Coaxial Speaker with RGB LED Lighting, Clamp Mount, Total Charcoal, Each (78049006)
  • Hertz HTX 8 M-CL-TC HTX 8" 100W RMS 4-Ohm Marine Tower Coaxial Speaker with RGB LED Lighting, Clamp Mount, Total Charcoal, Each (78049006)
Hertz HTX 8 M-CL-TC HTX 8" 100W RMS 4-Ohm Marine Tower Coaxial Speaker with RGB LED Lighting, Clamp Mount, Total Charcoal, Each (78049006)

Hertz HTX 8 M-CL-TC HTX 8" 100W RMS 4-Ohm Marine Tower Coaxial Speaker with RGB LED Lighting, Clamp Mount, Total Charcoal, Each (78049006)

UPC: 8018823137447
2 left
$999.99
Full Factory HERTZ AUDIO Warranty

Factory Authorized Retailer

25 Years of Excellence in Customer Service

The Hertz HTX 8 M-CL-TC is an individually sold 8-inch marine tower speaker for open-air boat audio. Its clamp mount installation design and total charcoal styling are tailored to the tower/arch mounting configuration, while integrated RGB illumination brings coordinated lighting to the speaker enclosure. Its coaxial driver design provides a wide-band marine audio solution in a sealed tower enclosure.

Key Features

  • Sold individually as one tower speaker, not a pair.
  • Continuous power handling: 100W RMS; peak power handling: 200W.
  • 4-ohm impedance for appropriately rated marine amplifiers.
  • Integrated multicolor RGB LED lighting; compatible controller selected separately.
  • IP65 water-jet resistance, ASTM D4329 UV testing and ASTM B117 salt-spray testing.

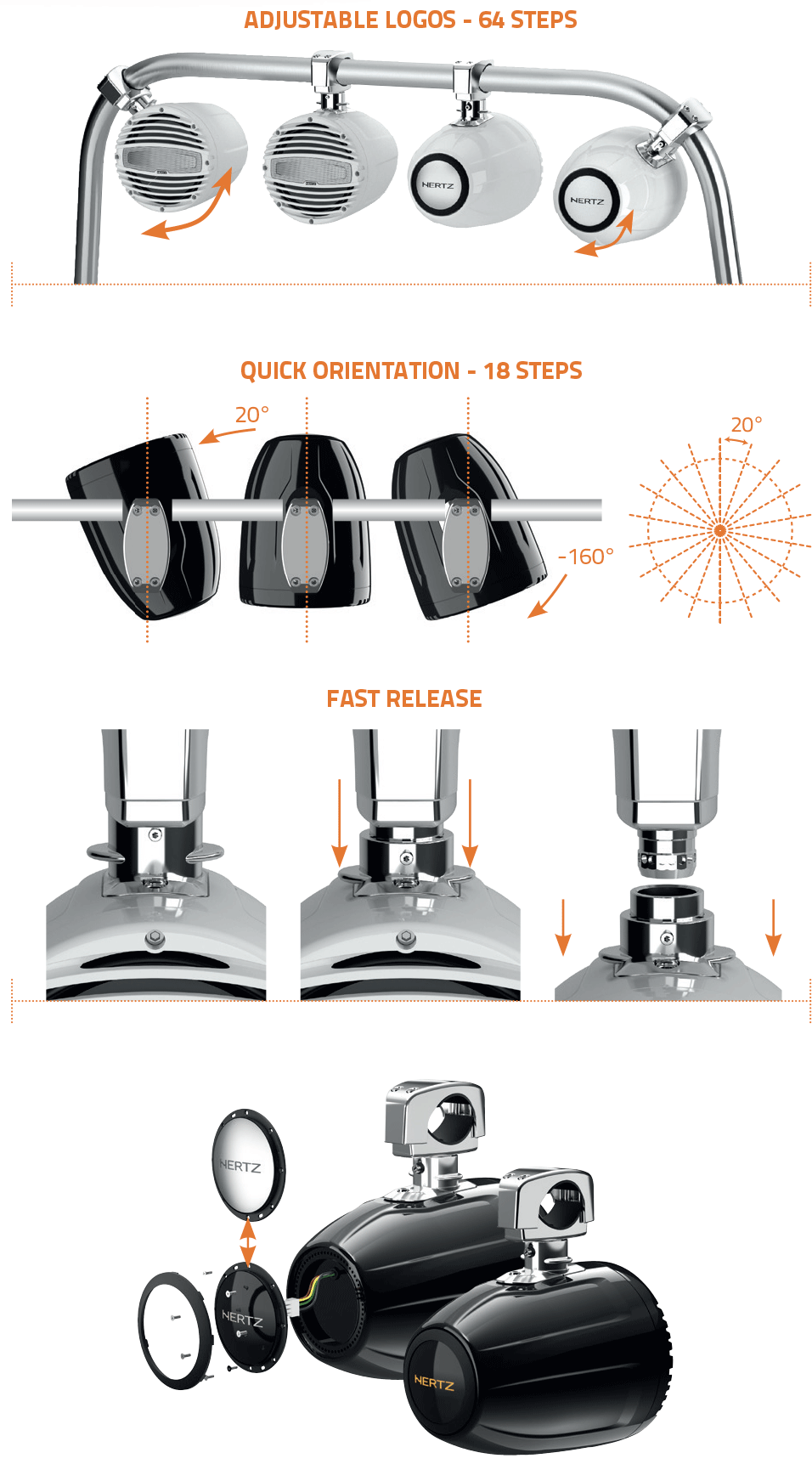

  • Adjustable rear/logo orientation helps maintain proper appearance at different mounting angles.
  • Factory clamp-mount style incorporates 316 stainless mounting hardware.
  • Q-OS² quick orientation/release mechanism facilitates aiming, service and removal.
  • Compatible with manufacturer-described round tubes 1.5–3 inches in diameter and configured square roll-bar mounting.
  • Coaxial two-way speaker with 32mm woofer voice coil and neodymium tweeter.
  • Sealed built-in crossover and protective marine enclosure.

Technical Specifications

  • Sales unit: one complete marine tower speaker
  • Nominal woofer size: 200mm (8 in.)
  • Nominal impedance: 4 ohms
  • Power handling: 100W RMS / 200W peak
  • Lighting: integrated RGB LED
  • Ingress protection: IP65
  • Mounting configuration: Clamp Mount
  • Finish: Total Charcoal
  • Sensitivity: 91dB

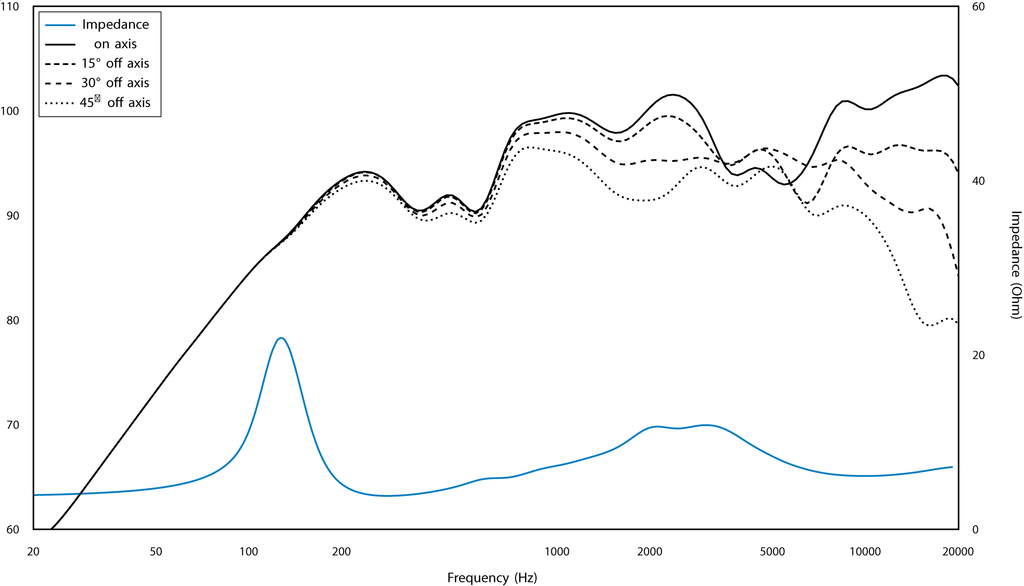

  • Frequency response: 45Hz–25kHz
  • Woofer voice-coil diameter: 32mm
  • Woofer magnet: high-density ferrite, 90 x 40 x 20mm
  • Woofer cone: UV-inhibited polypropylene
  • DC resistance (Re): 3.4 ohms
  • Resonance (Fs): 51Hz
  • Moving mass (Mms): 30g
  • Compliance (Cms): 0.33mm/N
  • Motor strength (BL): 6.33
  • Mechanical Q (Qms): 14.7
  • Electrical Q (Qes): 0.82
  • Total Q (Qts): 0.78
  • Equivalent compliance volume (Vas): 26.1L
  • Voice-coil inductance (Le): 0.46mH
  • Cabinet front dimension: 225mm (8.86 in.)
  • Cabinet depth: 288mm (11.34 in.)

Compatibility

  • Compatible with marine systems using 4-ohm amplification and the explicitly designated mounting format.
  • RGB lighting compatible with Hertz marine RGB control accessories; color controller not assumed included.

Installation Considerations

  • Connect to a marine amplifier with a stable 4-ohm output and continuous power appropriate for the speaker.
  • Use marine-grade electrical connectors and protect audio/RGB wiring from tower movement, vibration and abrasion.
  • Confirm overhead clearance, structural load rating, mounting fasteners and torque before operating the vessel.
  • Feed RGB lighting through a compatible fused 12V control circuit as documented by Hertz.
  • Confirm tube diameter and clamp material interfaces before mounting; use vibration-damping inserts where supplied.
