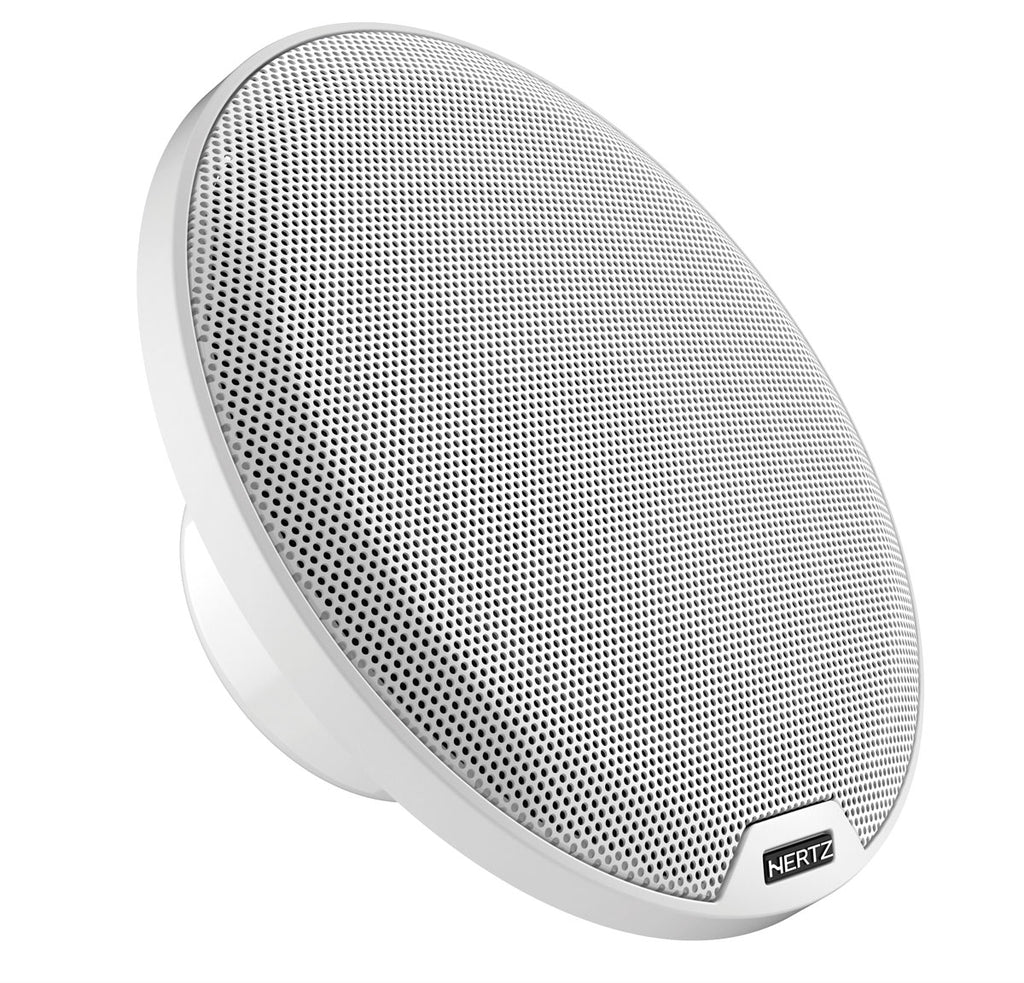

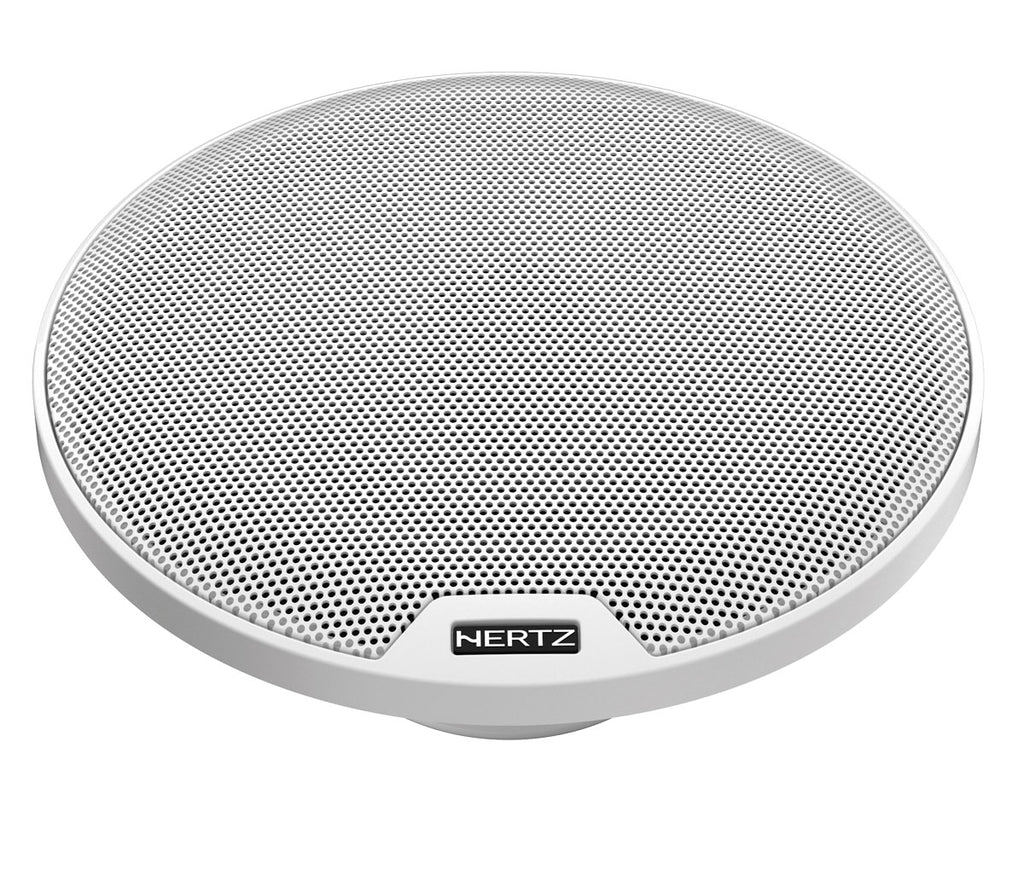

Hertz HEX 6.5 C-W 6.5" 50W RMS 4-Ohm Marine Coaxial Speakers with White Classic Grilles, Pair (78040380)
1/3
  • Hertz HEX 6.5 C-W 6.5" 50W RMS 4-Ohm Marine Coaxial Speakers with White Classic Grilles, Pair (78040380)
  • Hertz HEX 6.5 C-W 6.5" 50W RMS 4-Ohm Marine Coaxial Speakers with White Classic Grilles, Pair (78040380)
  • Hertz HEX 6.5 C-W 6.5" 50W RMS 4-Ohm Marine Coaxial Speakers with White Classic Grilles, Pair (78040380)
Hertz HEX 6.5 C-W 6.5" 50W RMS 4-Ohm Marine Coaxial Speakers with White Classic Grilles, Pair (78040380)

Hertz HEX 6.5 C-W 6.5" 50W RMS 4-Ohm Marine Coaxial Speakers with White Classic Grilles, Pair (78040380)

UPC: 8018823130110
4 left
$299.99
Next, add a shipping promo image to the product metafield
Full Factory HERTZ AUDIO Warranty

Factory Authorized Retailer

25 Years of Excellence in Customer Service

The Hertz HEX 6.5 C-W is a 6.5-inch marine coaxial speaker with white styling and a 4-ohm nominal impedance. Hertz Pure Marine materials and a two-way driver design provide clear full-range audio for protected or exposed listening areas on boats.

Sold as: Pair (2 speakers). The stated 50W RMS and 100W peak power ratings apply to each speaker.

Key Features

  • 50W RMS continuous and 100W peak power handling per speaker
  • 165mm polypropylene woofer cone with UV inhibitors
  • High-density ferrite woofer magnet and neodymium tweeter magnet
  • Two-way coaxial design with integrated crossover
  • IP65 marine water-jet protection, UV resistance and salt-fog testing
  • Nickel-plated corrosion-resistant terminals
  • Twist-and-lock sound-transparent grille design
  • Resettable solid-state tweeter protection circuit
  • Optimized for marine infinite-baffle applications

Technical Specifications

  • Driver size: 165mm / 6.5in
  • Power handling: 50W RMS continuous / 100W peak
  • Nominal impedance: 4 ohms
  • Sensitivity: 88dB
  • Frequency response: 50Hz–23kHz
  • Woofer voice coil: 25mm
  • Woofer magnet: high-density ferrite
  • Woofer cone: UV-inhibited polypropylene
  • Tweeter: 24mm, PEI 24mm dome with neodymium magnet
  • Outer diameter: 192.5mm outer diameter
  • Mounting depth: 60.5mm mounting clearance
  • IP protection: IP65
  • Water/salt/UV qualification: marine water-jet, ASTM-B117 and ASTM-D4329
  • Finish: White
  • Sales configuration: Pair (2 speakers)
  • DC resistance: 3.3 ohms
  • Free-air resonance (Fs): 78Hz
  • Total Q (Qts): 0.82
  • Equivalent compliance volume (Vas): 6.52L
  • Linear excursion (Xmax): 3.4mm
  • Crossover: sealed integrated circuit with tweeter protection

Compatibility

  • Use with amplifier channels supporting 4-ohm nominal speakers
  • Match the grille profile and baffle cutout to the actual model

Installation Notes

  • Verify baffle cutout and clearance against the appropriate Hertz installation drawing
  • Use marine-grade terminations and seal cut edges to discourage water ingress
