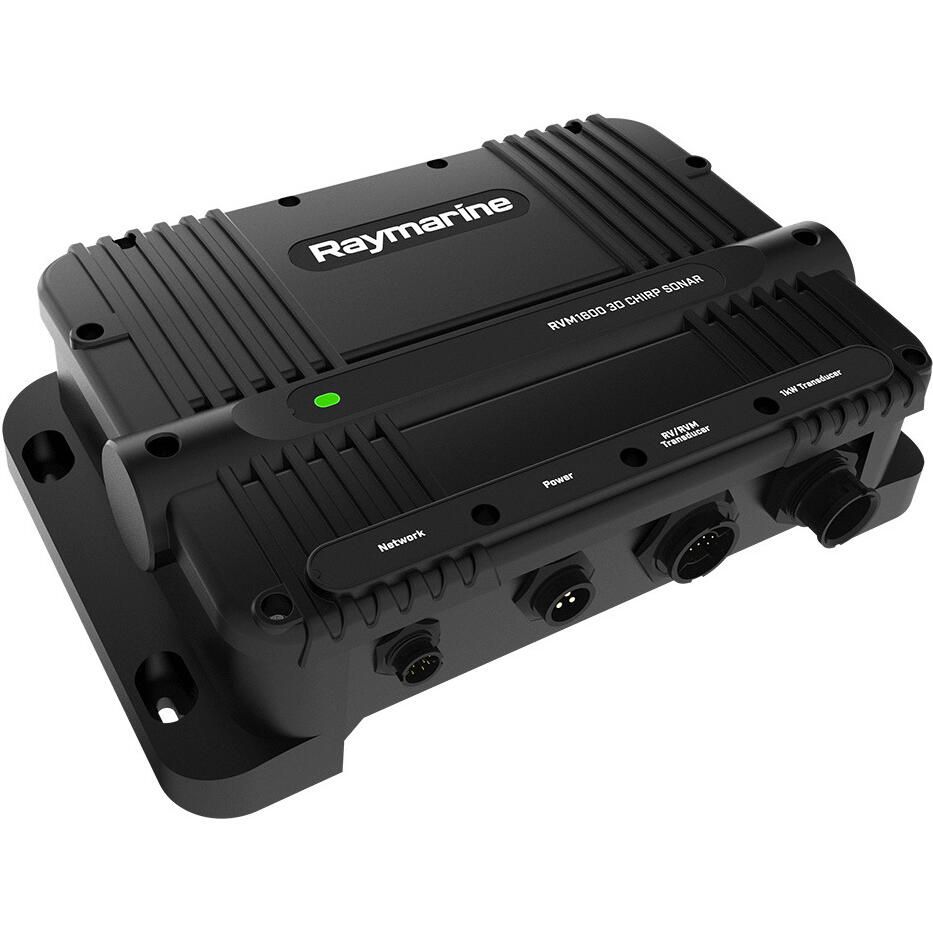

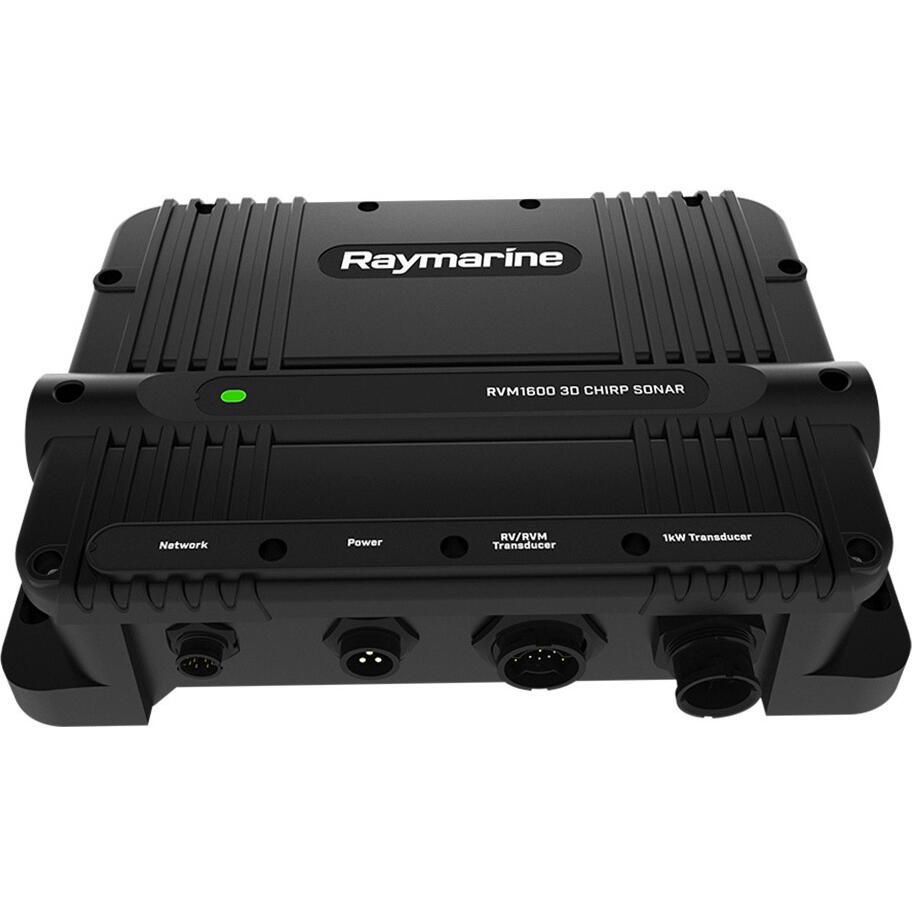

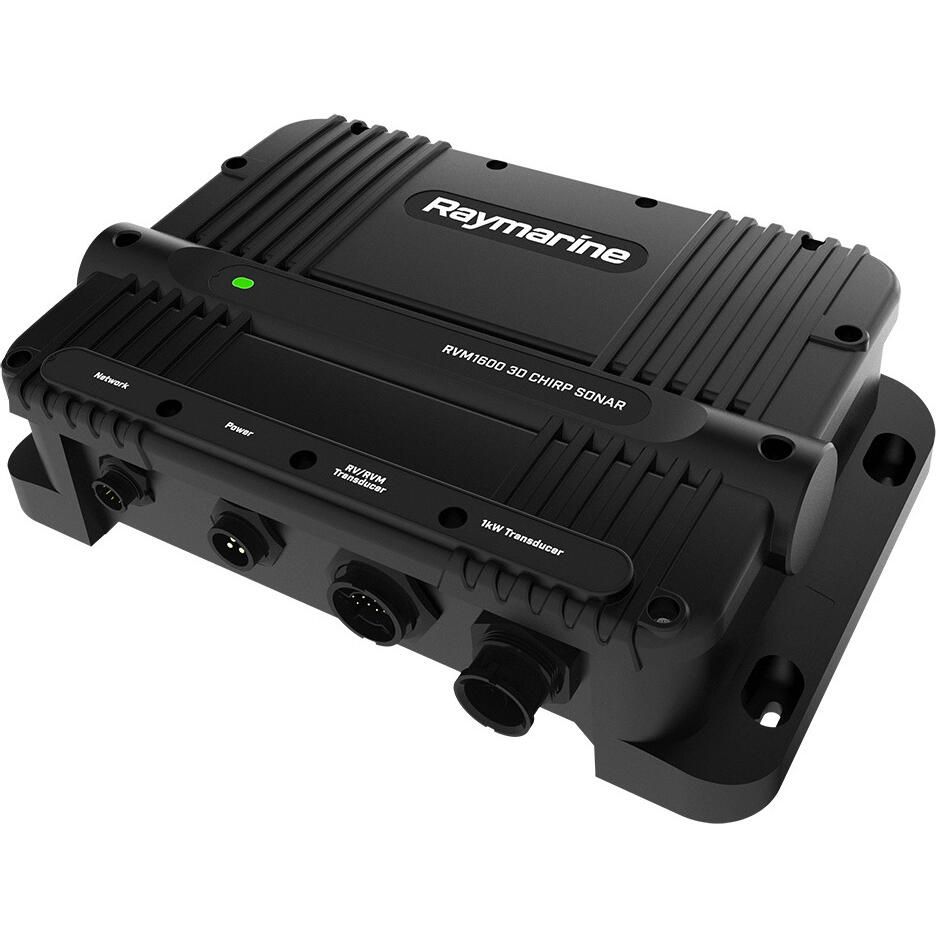

Raymarine RVM1600 RealVision MAX 1kW CHIRP Sonar Module (E70665)
1/3

Raymarine RVM1600 RealVision MAX 1kW CHIRP Sonar Module (E70665)

Manufacturer Part: E70665
UPC: 723193844724
3 left
$1,539.99
Full Factory RAYMARINE Warranty

Factory Authorized Retailer

25 Years of Excellence in Customer Service

Add advanced fishfinding to a compatible Raymarine multifunction display with the RVM1600 network sonar module. It combines RealVision MAX 3D imaging, high-frequency DownVision and SideVision with a separate 1kW CHIRP channel for serious offshore use.

Key Features & Benefits

  • RealVision MAX sonar: CHIRP DownVision, SideVision and RealVision 3D imagery helps interpret fish and structure.
  • Dual sonar capability: Separate traditional 1kW CHIRP transducer input covers a broad frequency range.
  • RayNet integration: Connects to compatible Raymarine chartplotters through Ethernet.
  • Rugged module: IPX6/IPX7 enclosure supports marine installations.

Technical Specifications

  • RealVision MAX sonar power: 600 W RMS
  • RealVision channels: High CHIRP 200 kHz, DownVision/SideVision/3D 350 kHz
  • Traditional CHIRP sonar: 1kW RMS; 42–250 kHz depending on transducer
  • Transducer ports: 25-pin RealVision MAX/3D; 11-pin 1kW
  • Network connector: 10-pin RayNet
  • Operating voltage: 10.8–31.2 V DC (12/24 V nominal)
  • Maximum power consumption: 10.4 W
  • Fuse: 5 A
  • Dimensions: 11.79 W x 7.40 H x 3.32 D in, excluding connector/cable clearance
  • Weight: 3.49 lb
  • Waterproof rating: IPX6/IPX7

Compatibility

For compatible Raymarine multifunction displays with supported LightHouse software and RayNet Ethernet networking. An appropriate RealVision MAX/RVM transducer and/or compatible traditional CHIRP transducer must be purchased separately.

Installation Considerations

Mount in a ventilated, accessible location and protect transducer cables from interference. Connect power and Ethernet using supplied cables; add transducers appropriate to the intended fishing depths.

Warranty

Raymarine 2-Year Standard Limited Warranty. Eligible new products may qualify for a 3-Year Extended Warranty when registered with Raymarine within 90 days of purchase.

What's in the Box

  • RVM1600 3D CHIRP sonar module
  • Power cable, 1.5 m
  • RayNet-to-RayNet network cable, 2 m
  • Mounting screws, M4.5 x 20 (4)
  • Documentation
