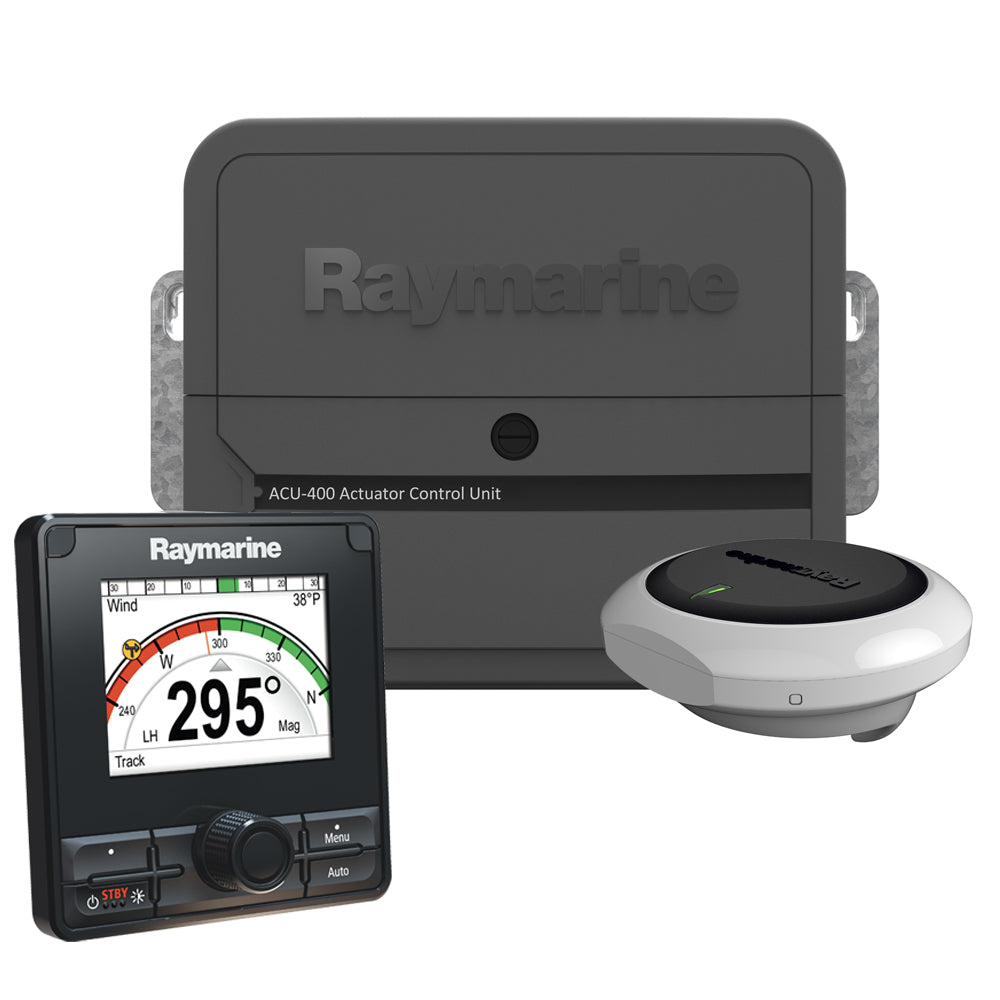

Raymarine Evolution EV-400 Power Autopilot System with p70Rs Controller, ACU-400 & EV-1, No Drive (T70162)

Raymarine Evolution EV-400 Power Autopilot System with p70Rs Controller, ACU-400 & EV-1, No Drive (T70162)

Manufacturer Part: T70162
UPC: 723193854129
4 left
$2,799.99
Full Factory RAYMARINE Warranty

Factory Authorized Retailer

25 Years of Excellence in Customer Service

The Raymarine Evolution EV-400 Power Pilot combines a rotary p70Rs helm interface, EV-1 motion sensor and high-capacity ACU-400 for larger powerboats. It includes the rotary rudder reference sensor and SeaTalkng cabling kit, with the steering drive selected to suit the boat.

Key Features & Benefits

  • Powerboat controls: p70Rs rotary color autopilot display
  • High-capacity actuator controller: ACU-400 with up to 30 A continuous drive output
  • Adaptive steering: EV-1 nine-axis heading sensor
  • Rudder feedback: Rotary reference included
  • Network connectivity: Integration through SeaTalkng/NMEA 2000

Technical Specifications

  • Actuator control unit: ACU-400
  • ACU rated supply: 12/24 V DC
  • ACU operating voltage: 10.8–31.2 V DC
  • Maximum continuous drive output: 30 A at supply voltage
  • Clutch output: Up to 4 A continuous
  • SeaTalkng power output: 3 A at 12 V, fuse protected
  • ACU enclosure: Drip resistant
  • ACU dimensions: 285 × 211.5 × 64.5 mm
  • EV-1 sensor technology: 9-axis attitude and heading sensor
  • Autopilot controller: p70Rs rotary control head
  • Typical vessel: Larger powerboats
  • Drive unit: Sold separately

Compatibility

Supports appropriately specified mechanical or hydraulic autopilot drives. Confirm Type 2 or Type 3 drive suitability and hydraulic steering capacity before selecting a pump or mechanical actuator.

Installation Considerations

Select and install only the steering equipment specified for the vessel and drive type. Configure the SeaTalkng/NMEA 2000 network with correct power, termination and suitable autopilot commissioning.

Warranty

2-Year Limited Warranty. Eligible new products can receive a 3-Year Limited Warranty when registered with Raymarine within 90 days of purchase.

What's in the Box

  • EV-1 sensor core
  • ACU-400 actuator control unit
  • p70Rs autopilot control head
  • Rotary rudder reference transducer
  • Evolution SeaTalkng cabling kit
  • Mounting hardware
  • Product documentation
