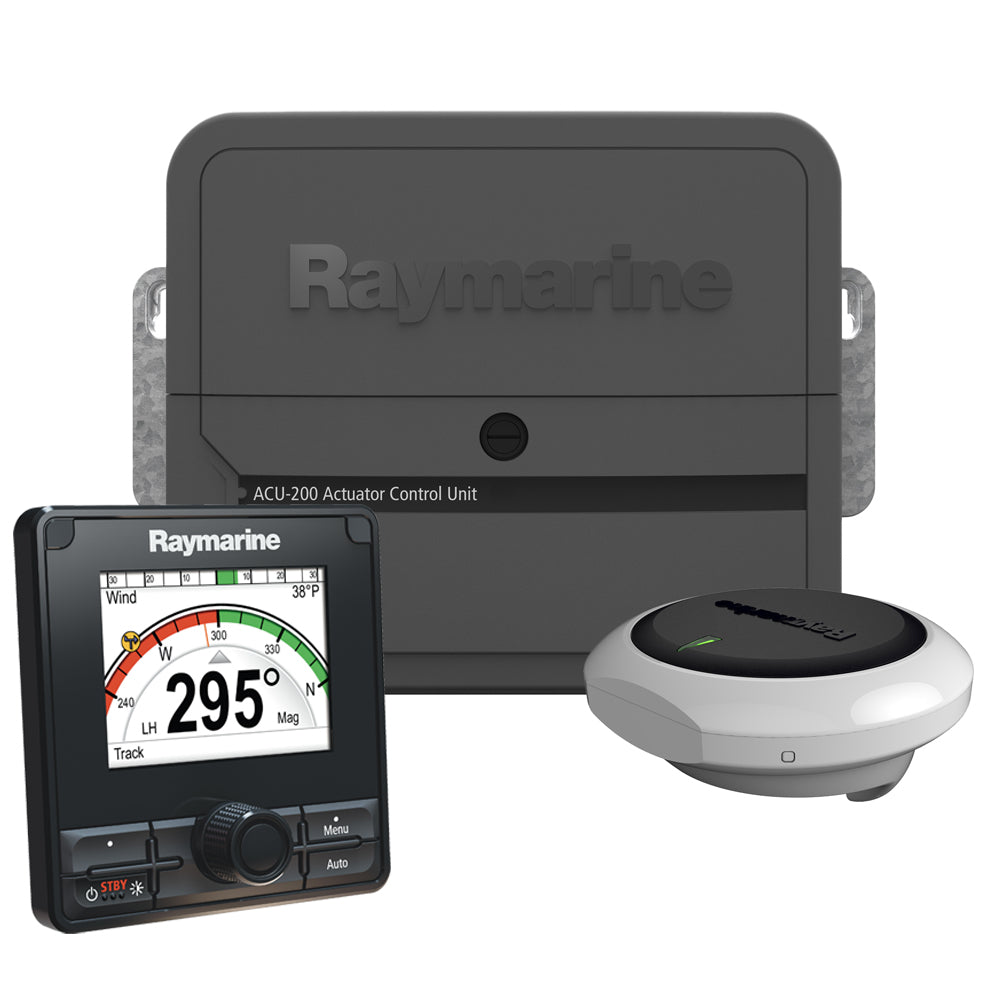

Raymarine Evolution EV-200 Power Autopilot System - No Drive Unit (T70156)
The Raymarine Evolution EV-200 Power Pilot combines the EV-1 sensor core, p70Rs helm controller and ACU-200 actuator control for dependable course keeping on powerboats with compatible steering systems. A compatible Type 1 drive unit is required and sold separately.
Key Features & Benefits
- EV-1 intelligent sensor core: Nine-axis motion and heading sensing adapts autopilot steering to vessel movement.
- ACU-200 actuator controller: Provides drive control for compatible Evolution autopilot installations.
- p70Rs control head: Dedicated helm autopilot controller for powerboat operation.
- SeaTalkng integration: Supports compatible Raymarine chartplotters and marine instruments.
- Package drive configuration: A compatible Type 1 drive unit is required and sold separately.
Technical Specifications
- Autopilot family: Raymarine Evolution EV-200
- Control head: p70Rs
- Sensor: EV-1 nine-axis heading/motion sensor
- Actuator control: ACU-200
- Network: SeaTalkng / NMEA 2000 integration
- ACU maximum continuous drive output: 15 A at supply voltage
- ACU nominal supply: 12/24 V DC (check installation requirements)
- Drive unit: Not included
- Vessel application: Powerboat
Compatibility
Designed for suitably sized powerboats using approved Type 1 drive arrangements and steering components. Verify vessel displacement, steering type, cylinder/pump capacity or mechanical linkage, and ACU/drive compatibility before selection. A compatible Type 1 drive unit is required and sold separately.
Installation Considerations
Professional installation and sea trial are recommended. Confirm mechanical or hydraulic drive sizing, network topology, fuse protection and appropriate heading sensor placement before commissioning.
Warranty
Raymarine 2-Year Standard Limited Warranty. Eligible new products may qualify for a 3-Year Extended Warranty when registered with Raymarine within 90 days of purchase.
What's in the Box
- p70Rs autopilot control head
- ACU-200 actuator control unit
- EV-1 sensor core
- Evolution cabling kit
- Installation and operation documentation
