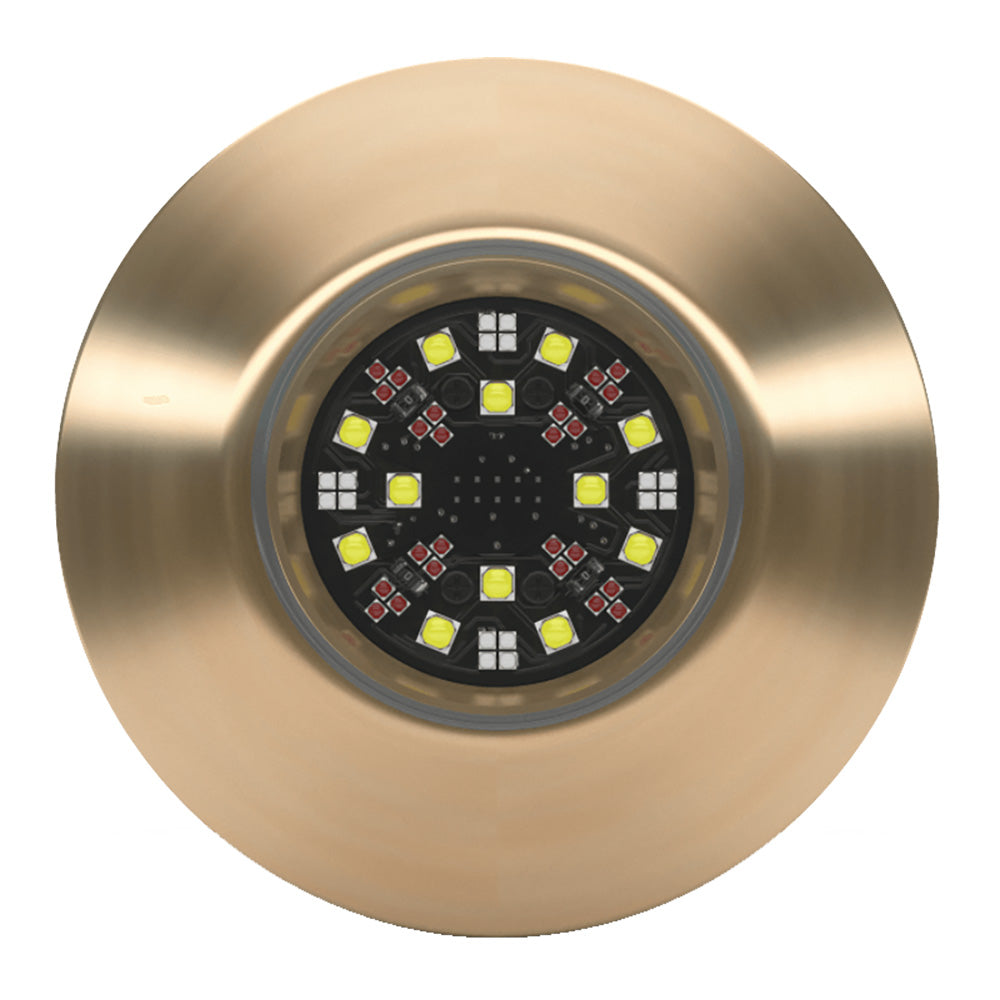

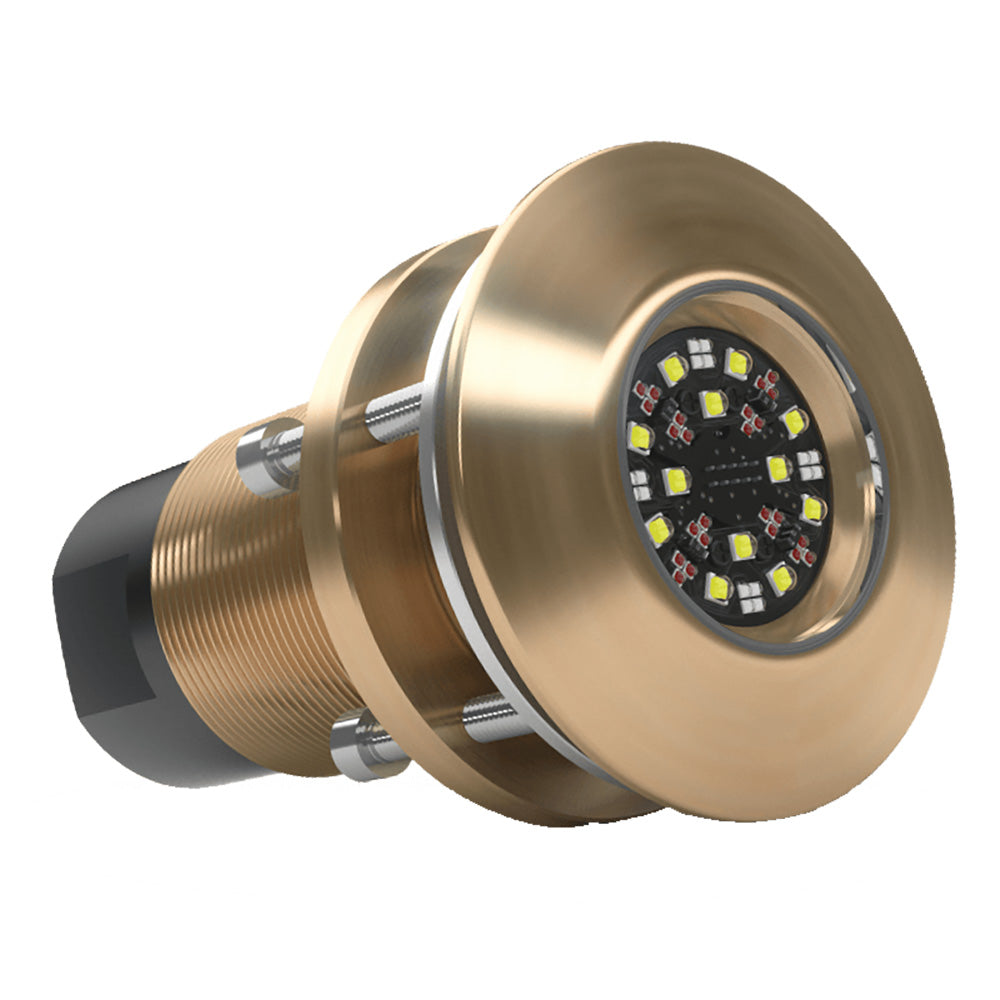

Lumishore TIX404 EOS 7,500 Lumen RGBW 110° Interchangeable Thru-Hull Underwater LED Light (60-0558, 010-04529-00)

The Lumishore TIX404 EOS offers 7,500 fixture lumens of RGBW underwater lighting in an interchangeable thru-hull assembly. Through a compatible EOS control system, owners can create coordinated multicolor effects while retaining the installation and service advantages of Lumishore’s interchangeable thru-hull design.

Key Features & Benefits

• RGBW Color Control: Supports a range of underwater color effects with compatible EOS controls.
• 7,500 Lumen Output: Uses a measured fixture-output figure rather than raw LED output.
• Service-Oriented Thru-Hull Design: Uses an interchangeable light assembly rather than a conventional permanently integrated fixture.

Technical Specifications

• Lighting configuration: RGBW
• Mounting design: Interchangeable Thru-Hull
• Product configuration: Single underwater light
• Fixture light output: 7,500 lumens
• Beam angle: 110°
• Electrical operating range: 10.5–31V DC
• Nominal electrical system: 12/24V
• Fixture construction: Marine bronze housing
• Application: Marine vessel lighting
• Ingress protection: IP68

Compatibility

• Requires compatible EOS-LUX lighting control ecosystem for RGBW functions.
• Supports installation on suitable thru-hull locations subject to hull material, depth and access requirements; the internal light engine is serviceable from inside the boat.

Installation & Setup

• Follow the model-specific Lumishore mounting template, sealing methods and wiring requirements.
• Provide marine-grade overcurrent protection, strain relief and protected electrical connections.
• Select a suitable transom, side, or bottom location with inboard maintenance access; comply with hull bonding/isolation instructions.

Warranty

3-Year Manufacturer Warranty.
