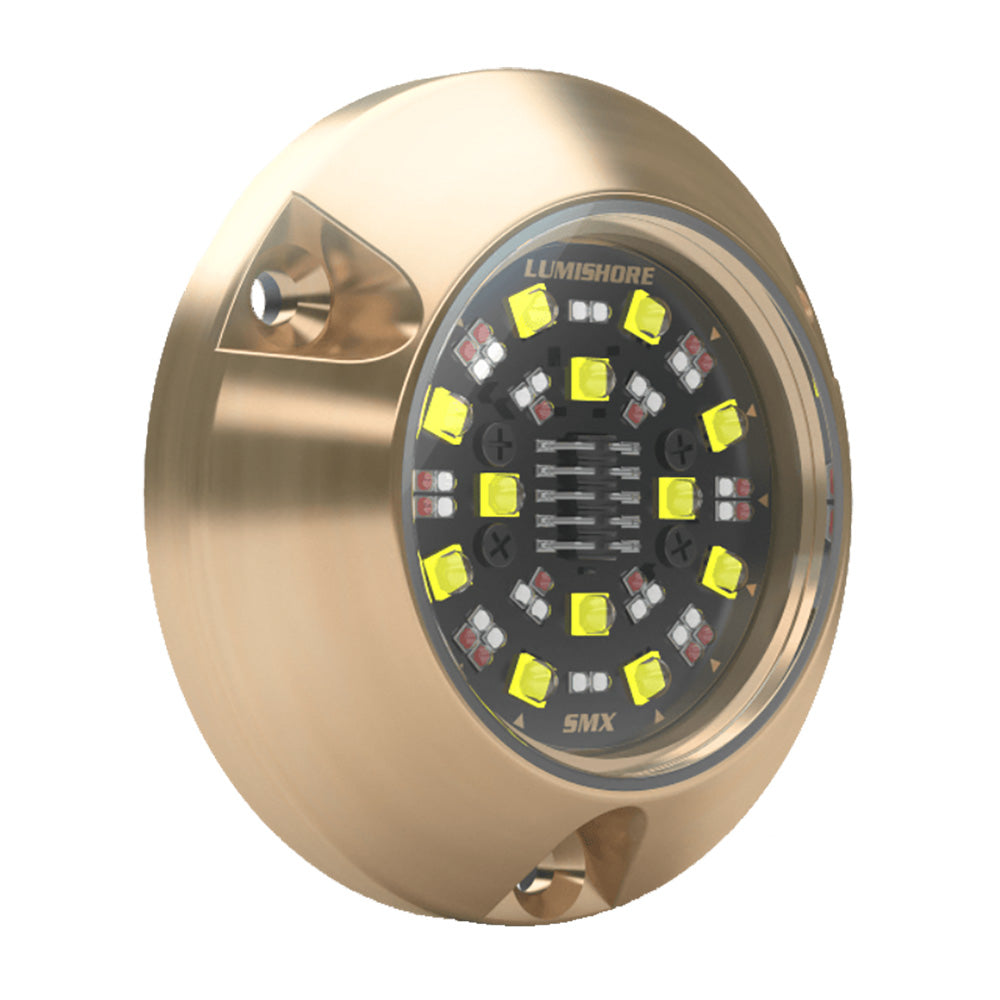

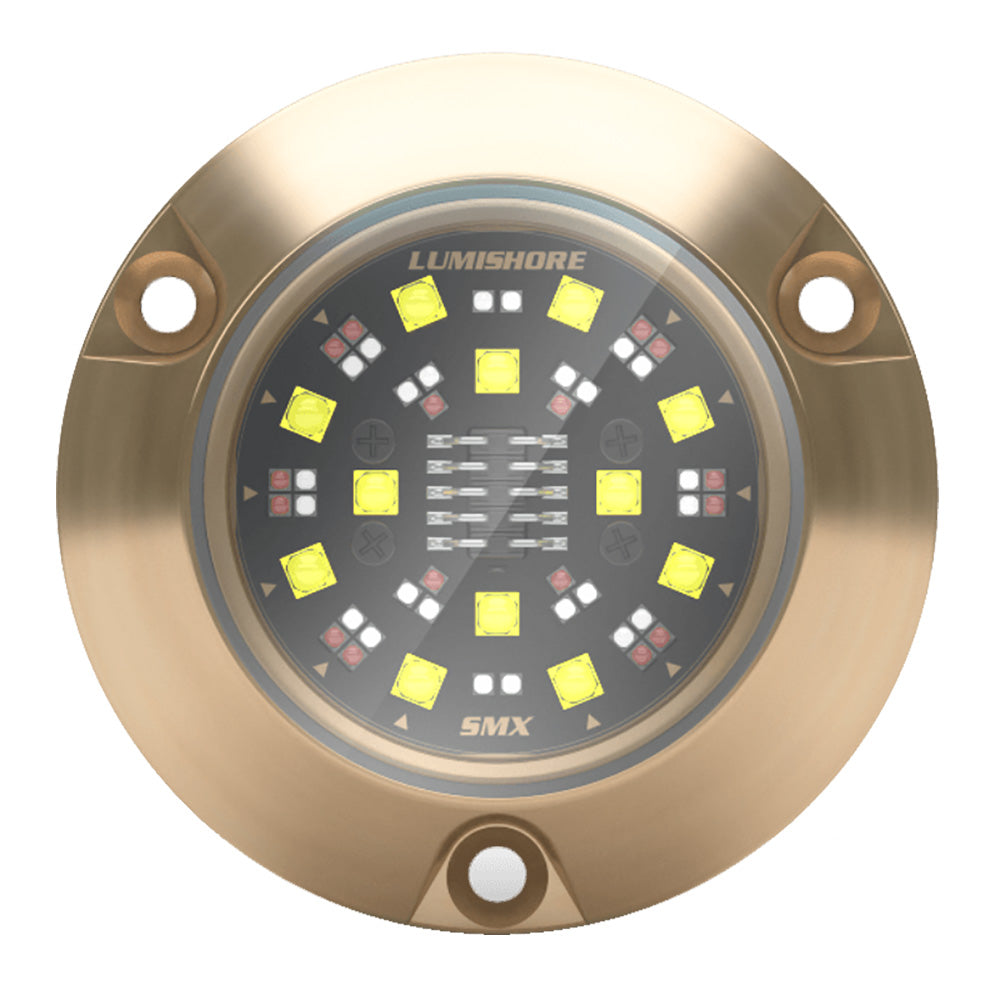

Lumishore ECLIPSE SMX94 6,000 Lumen RGBW 90° Surface-Mount Underwater LED Light (60-0535, 010-04506-00)

The Lumishore SMX94 ECLIPSE provides full-spectrum RGBW underwater lighting with a wide 90° beam. Its compact bronze housing, borosilicate glass lens, and internal driver support single-light marine installations and ECLIPSE system expansion.

Key Features & Benefits

• 6,000 Fixture Lumens: Lumishore measures the light output of the assembled fixture, providing a practical reference for installed white-light output.
• RGBW Color Selection: Provides red, green, blue, and dedicated white LEDs for a broad choice of lighting colors.
• 90° Optics: Wide illumination helps create an even halo around hull-mounted lighting positions.
• Integrated Driver: Simple two-wire connection supports on/off color cycling or extended control through the ECLIPSE Command Center.
• Bronze and Glass Construction: Marine bronze body and borosilicate glass lens suit permanent underwater mounting.

Technical Specifications

• Lighting: full-spectrum RGBW
• Fixture light output (white): 6,000 lumens
• LED-source lumens: 13,500 (separate rating method)
• Beam: 90°
• LEDs: 12 x 5W white; 12 x 3W green; 12 x 3W blue; 16 x 3W red
• Driver: integrated multichannel
• Body: marine bronze
• Lens: borosilicate glass
• Fixture diameter: 70mm (2.75 in.)
• Projection: 17mm (0.67 in.)
• Typical LED life: 50,000+ hours
• Mounting: surface mount

Compatibility

• ECLIPSE Command Center for digital system integration and advanced color/zone controls
• Basic compatible switch operation can provide color cycling; check controller documentation for exact functions

Installation & Setup

• Use the specified surface-mount pattern and a structurally sound hull location.
• Protect wire penetration with appropriate marine sealants and fittings.
• Follow the SMX94 voltage and circuit-protection guidance in its installation manual.

Warranty

3-Year Manufacturer Warranty
