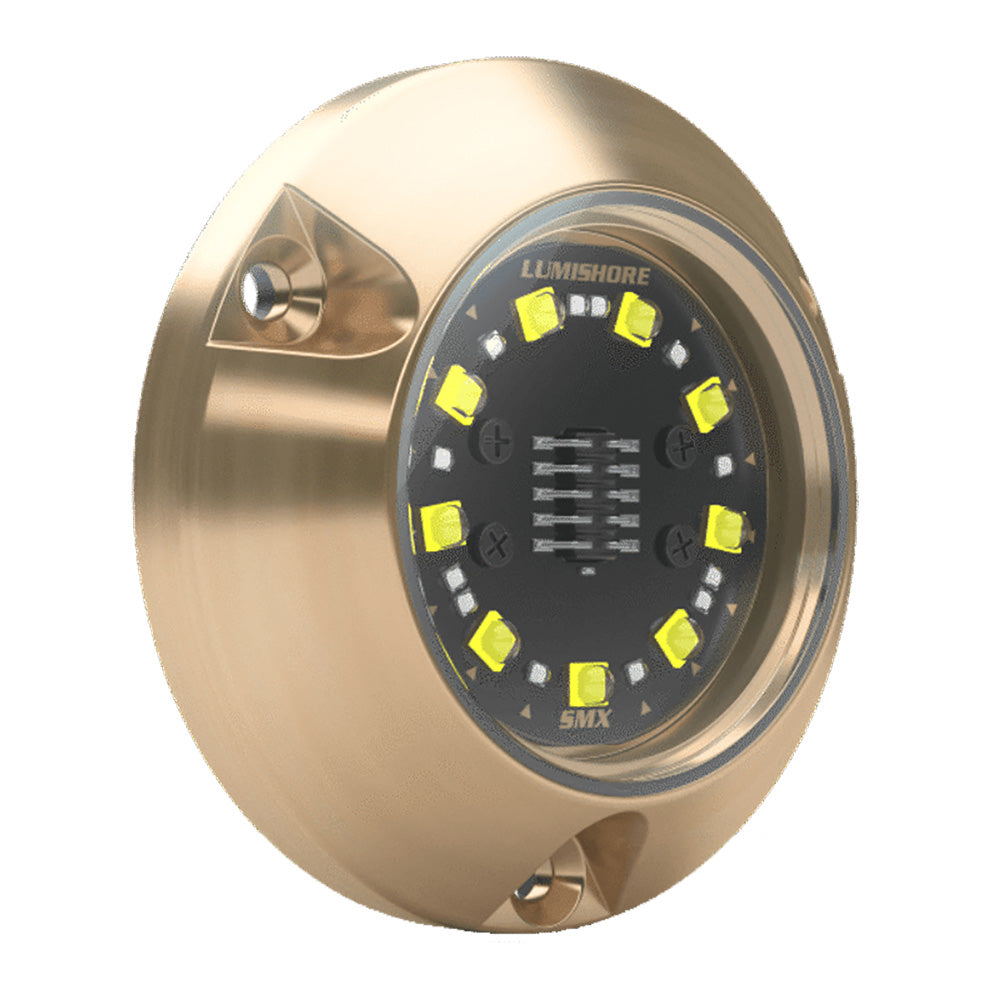

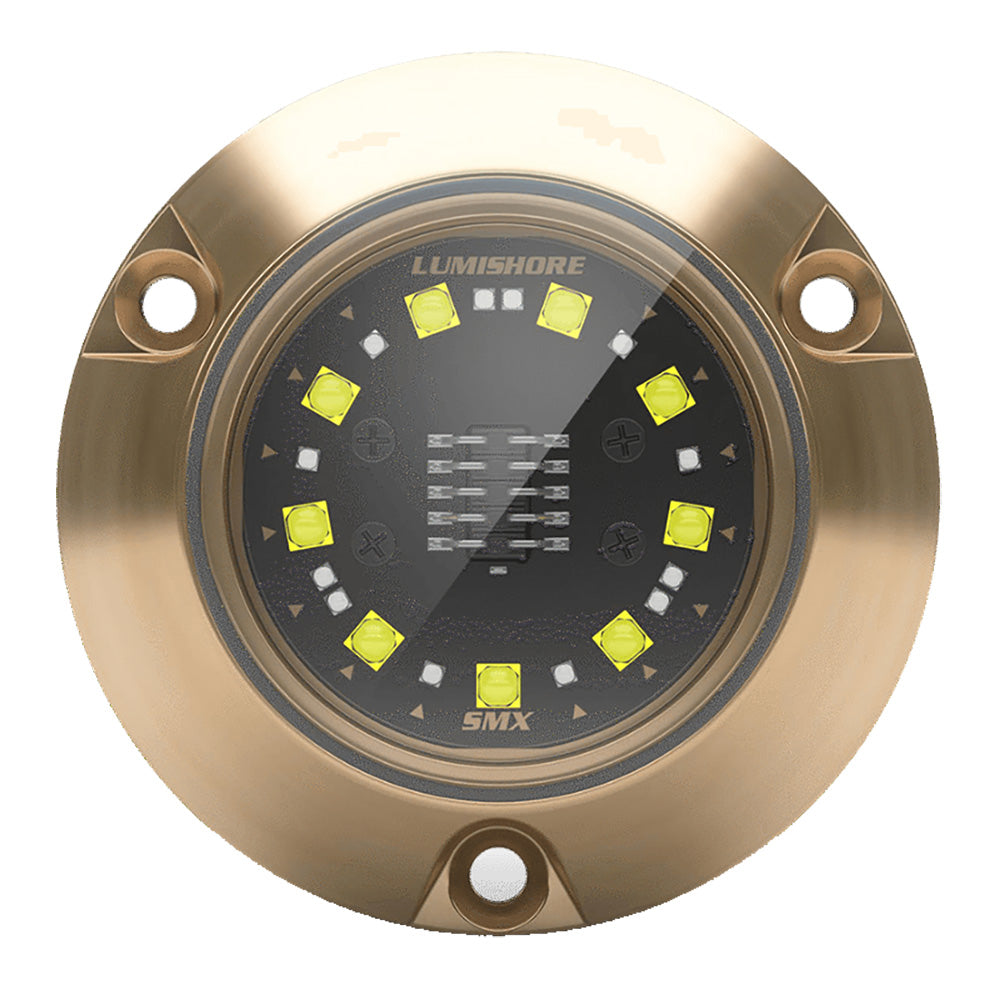

Lumishore ECLIPSE SMX24 3,100 Lumen Blue 90° Surface-Mount Underwater LED Light, 12V (60-0531, 010-04501-00)

The Lumishore SMX24 ECLIPSE surface-mount underwater LED light delivers blue illumination with a broad 90° beam for transoms, stepped hulls, and other suitable underwater mounting surfaces. Its compact bronze-bodied construction and integrated driver allow a straightforward two-wire connection.

Key Features & Benefits

• 3,100 Fixture Lumens: The published fixture output measures usable light emitted by the assembled light rather than a theoretical LED-source maximum.
• Wide 90° Beam: Creates broad illumination across surrounding water.
• Two-Wire Installation: Internal driver allows compatible on/off switching or integration with the ECLIPSE Command Center.
• Marine-Grade Housing: Bronze body and glass lens support permanent underwater installations.

Technical Specifications

• Light color: Blue
• Fixture light output: 3,100 lumens
• LED-source lumen figure: 6,975 (different measurement basis)
• Beam angle: 90°
• LED array: 12 x 3W Blue LEDs
• Input voltage: 12V DC only (10.5–14.5V DC)
• Maximum current draw: 2.5A
• Driver: internal multichannel
• Body: marine bronze
• Lens: glass
• Fixture diameter: 70mm (2.75 in.)
• Height above mounting surface: 17mm (0.67 in.)
• Typical LED life: 50,000+ hours
• Installation: surface mount

Compatibility

• Compatible on/off switch or ECLIPSE Command Center for additional lighting control
• Designed for suitable underwater hull/transom installations; check hull material and isolation requirements

Installation & Setup

• Follow Lumishore installation instructions for sealing, fastening, and protecting hull penetrations.
• Use marine-grade wiring, correct DC protection, and suitable sealant for the hull material.

Warranty

3-Year Manufacturer Warranty
