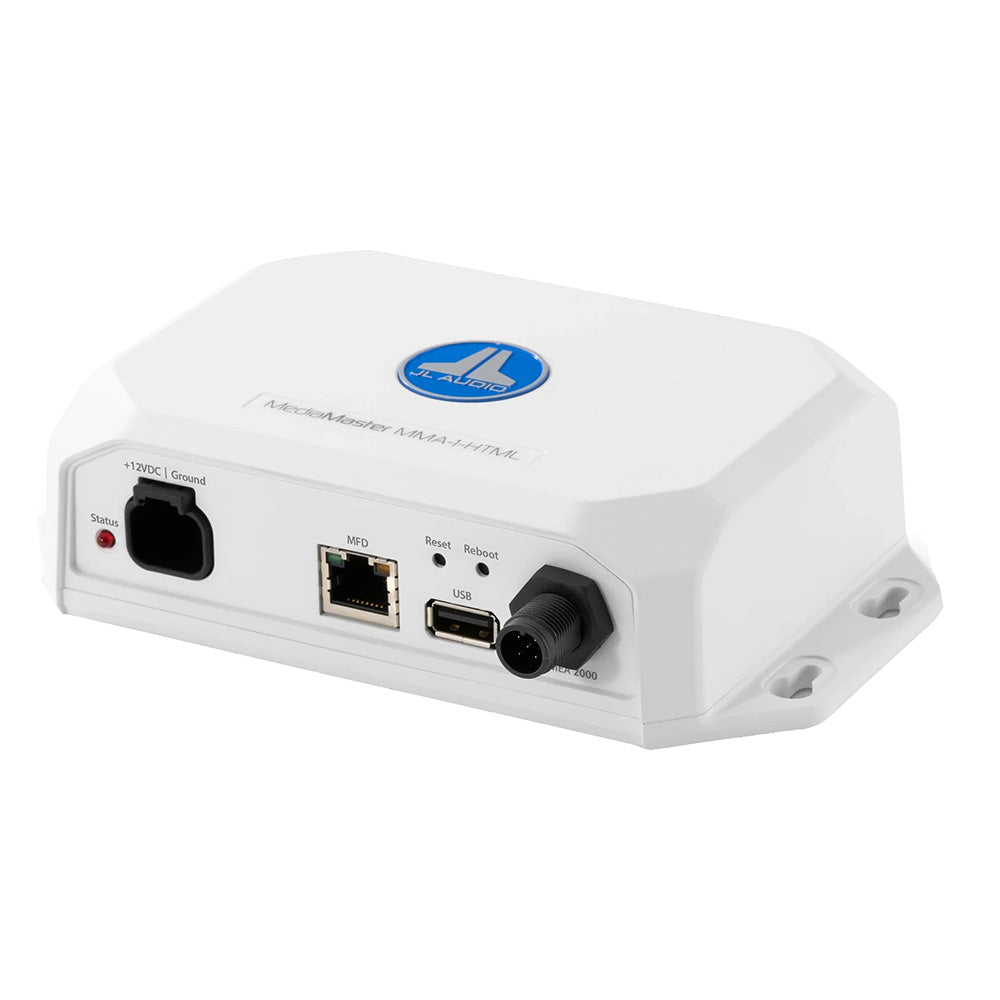

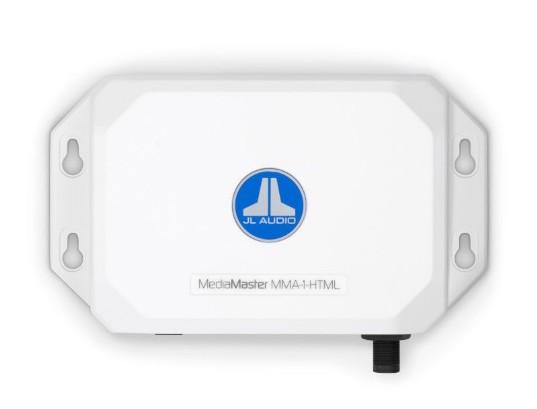

JL Audio MMA-1-HTML NMEA 2000 MFD Data Interface for MediaMaster MM105 Marine Stereo (010-03135-00)

Operate a compatible JL Audio MediaMaster source unit using a supported multifunction display with the MMA-1-HTML interface. The module communicates across a vessel’s NMEA 2000 network to present MediaMaster-themed controls on compatible helm displays.

Key Features

• Compatible MFD-based MediaMaster control
• NMEA 2000 Micro-C interface (LEN 1)
• Ethernet connection and USB update port
• Designed for supported MediaMaster systems

Technical Specifications

• Power supply: 10–15.9V DC
• Maximum current: 150mA
• NMEA 2000: 1 Micro-C port; LEN 1 (50mA)
• Ethernet: 1 port
• USB 2.0: 1 port, software updates only
• Dimensions: 6.77" W x 3.98" D x 1.73" H
• Operating temperature: -4°F to 149°F (-20°C to 65°C)

Compatibility & Installation

Requires an appropriate NMEA 2000 network and a compatible source unit and MFD. NMEA 2000 backbone cabling and connectors are sold separately.

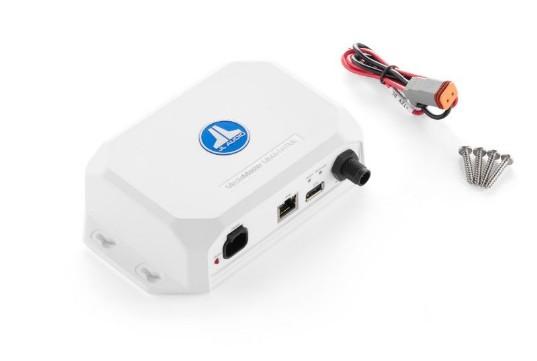

What’s in the Box

• MFD data interface module
• Wiring harness with 1A fuse
• 4 stainless steel mounting screws
