Icom IC-M803 150W PEP MF/HF SSB Marine Radio with Class E DSC, 4.3" Color Display & GPS (M803 21 USA)

The Icom IC-M803 is a long-range MF/HF marine SSB radio system for offshore and extended-cruising communication. It provides up to 150W PEP selectable RF transmit output, built-in Class E Digital Selective Calling, an intuitive separate controller with a wide-viewing-angle 4.3-inch color TFT display, and integrated GPS/GLONASS/SBAS positioning. Advanced RF direct-sampling receiver technology, dedicated DSC watchkeeping and instant audio replay help make important calls easier to receive and manage when underway.

Key Features

• 150W PEP maximum RF transmit power, with selectable 150W, 100W, 60W and 20W PEP output settings.
• Integrated Class E MF/HF DSC with protected distress button and GPS-position distress messaging.
• Dedicated DSC watchkeeping receiver monitors six MF/HF distress frequencies in rotation.
• 4.3-inch color TFT controller display with wide viewing angle, nighttime mode, large tuning dial and programmable soft keys.
• Integrated GNSS receiver supports GPS, GLONASS and SBAS using the supplied external GPS antenna with 16.4-foot cable.
• Advanced RF direct-sampling digital receiver architecture improves sensitivity and audio clarity.
• Instant Replay automatically stores up to two minutes of received audio.
• Stores up to 100 DSC MMSI contacts, including 75 individual and 25 group entries.
• Multiple Task Mode helps manage concurrent DSC calling procedures.
• HF e-mail ready with 160 e-mail channels and connections for compatible PC/modem equipment; separate service and external hardware required.
• NMEA 0183 Version 4.10 communication at selectable 4800–38400bps for compatible navigation data transfer.
• IPX7-rated remote controller (the separate transceiver main unit does not share this controller-only waterproof classification).
• Separate transceiver and controller can be located to suit the vessel helm and equipment compartment.

Technical Specifications

• Radio type: MF/HF marine SSB transceiver with Class E DSC
• Maximum transmit RF output: 150W PEP (peak envelope power)
• Selectable transmitter output: 150W, 100W, 60W or 20W PEP
• Continuous receiver coverage: 0.5–29.9999 MHz
• Transmit frequency bands: 1.6–2.9999; 4.0–4.9999; 6.0–6.9999; 8.0–8.9999; 12.0–13.9999; 16.0–17.9999; 18.0–19.9999; 22.0–22.9999; 25.0–27.5000 MHz
• DSC watchkeeping frequencies: 2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 16.8045 MHz
• Transmit/receive emission modes: J3E (USB, LSB), J2B (AFSK), F1B (FSK), A1A (CW); H3E (AM receive only)
• DSC emission type: J2B
• Antenna impedance: 50 ohms, unbalanced
• Power supply: 13.6V DC ±15%, negative ground
• Transmit current draw: 30A maximum at 13.6V DC / maximum RF output
• Receive current draw: Less than 3A at maximum audio output
• Transmit frequency stability: ±10Hz below 29.999 MHz
• Transmitter spurious emissions: Less than -62dB at peak output
• Carrier suppression: Greater than 40dB
• Unwanted sideband suppression: Greater than 55dB
• Microphone impedance: 600 ohms
• Receiver spurious response rejection: Greater than 70dB across 0.5–29.9999 MHz
• Audio output: 4W with 4-ohm load at 10% distortion
• Receiver clarity adjustment: ±150Hz
• Display: 4.3-inch color TFT controller screen
• Instant Replay: Up to two minutes of received audio
• GNSS: Integrated GPS/GLONASS/SBAS receiver; separate GPS antenna supplied
• Data interface: NMEA 0183 Version 4.10, 4800–38400bps
• Controller waterproof rating: IPX7 (controller unit only)
• Operating temperature: -4°F to +131°F (-20°C to +55°C)
• Main unit dimensions (W x H x D): 9.4 x 3.7 x 9.4 in. (240 x 94 x 238mm)
• Controller dimensions (W x H x D): 10.8 x 4.5 x 3.4 in. (274 x 114 x 86mm)
• Main unit weight: Approximately 9.7 lb (4.41kg)
• Controller weight: Approximately 1.7 lb (760g)
• Manufacturer part number: M803 21 USA

Compatibility

• For vessels with a suitable 13.6V nominal DC power system and adequately sized wiring for up to 30A transmit current.
• Requires an appropriate marine MF/HF antenna installation and antenna-matching arrangement. The optional Icom AT-140 automatic tuner, antenna and tuner control cable are not included.
• Supports compatible NMEA 0183 instruments/chartplotters and GPS navigation-data integrations. This model does not provide NMEA 2000 connectivity.
• HF e-mail use requires compatible external computer/modem hardware and a suitable service.
• Marine MF/HF transmit authorization, frequency access and station licensing depend on jurisdiction and operating service; amateur-frequency operation requires appropriate authorization.

Installation Notes

• Mount the main transceiver in a protected, ventilated, accessible space; only the detached controller is rated IPX7.
• Connect controller to main unit with the supplied 5m (16.4ft) remote cable.
• Install the supplied GPS antenna where it can receive satellite signals.
• Provide a suitable HF antenna, grounding and bonding arrangement, and optional compatible antenna tuner as dictated by the vessel installation.
• Wire the 13.6V system for the published 30A maximum transmit draw and protect the supply with appropriate fusing.
• Configure MMSI and DSC information in accordance with the radio manual and applicable licensing requirements.

What's in the Box

• IC-M803 MF/HF marine transceiver main unit

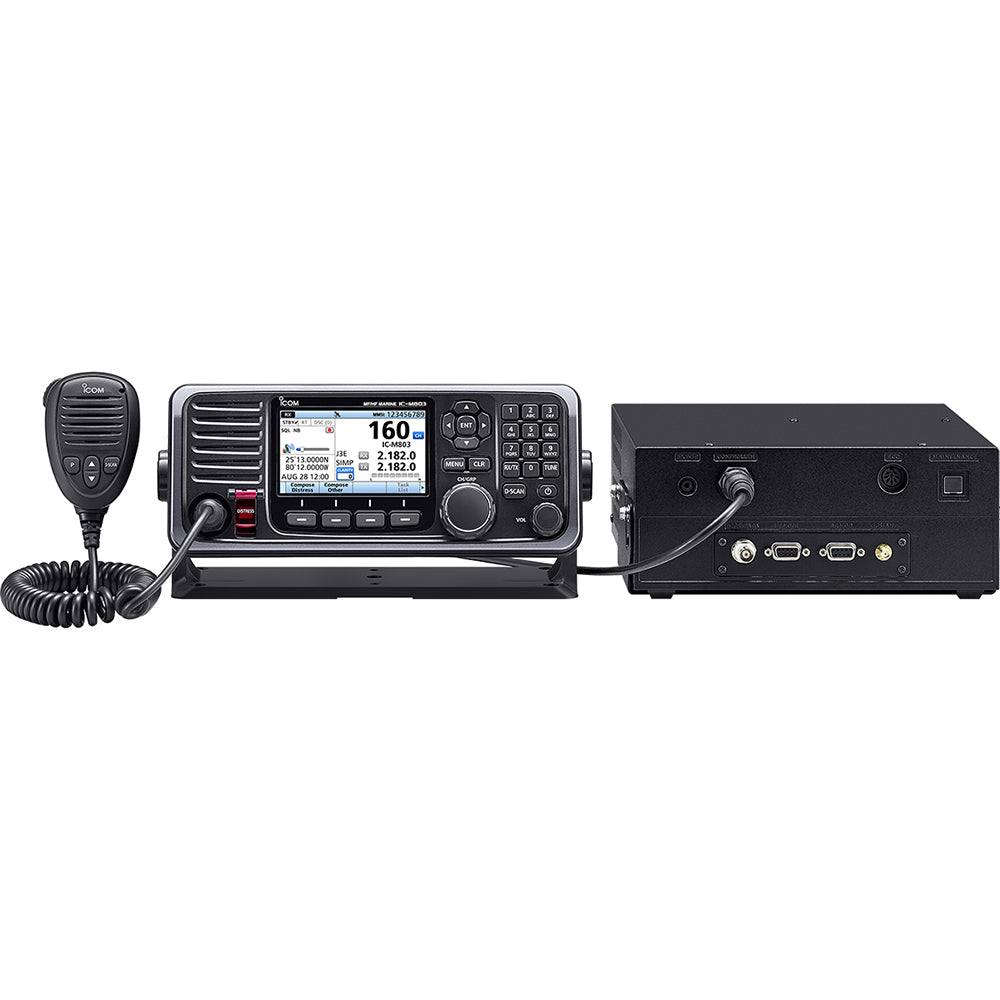

• Remote controller with 4.3-inch color display
• 5m (16.4ft) remote control cable
• HM-214H hand microphone
• DC power cable
• GPS antenna with 5m (16.4ft) cable
• Microphone hanger
• Mounting bracket kits
• Accessory (ACC) plugs
• Spare fuses
