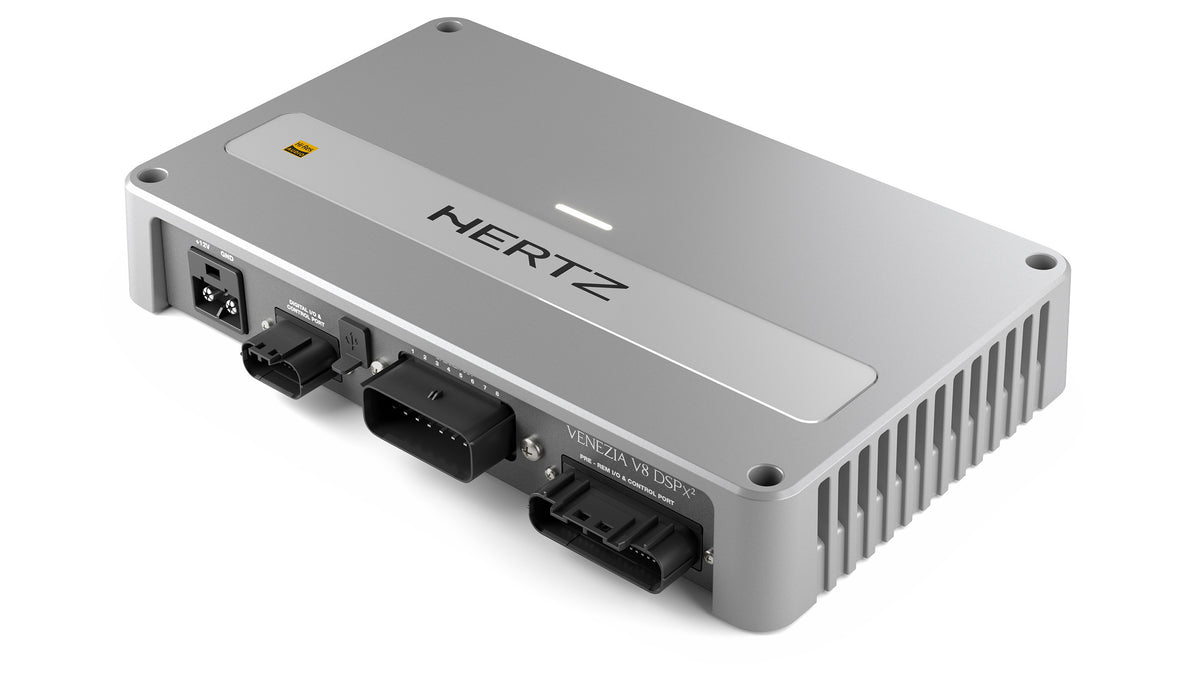

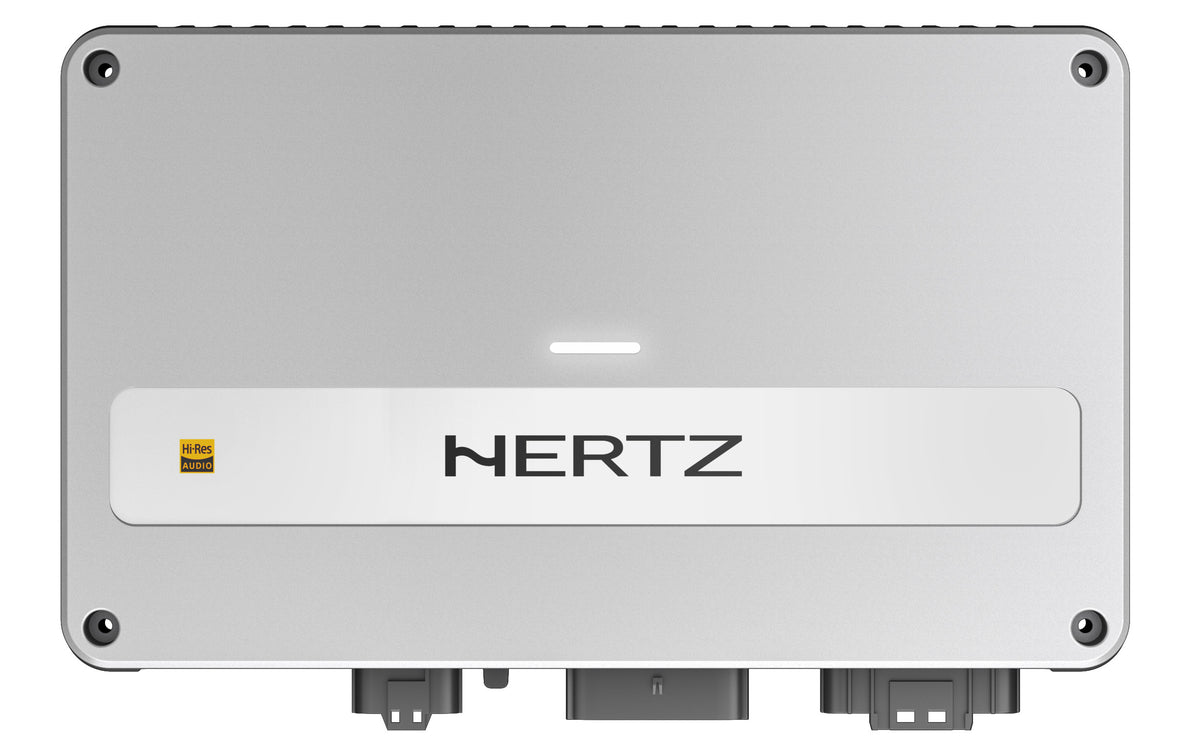

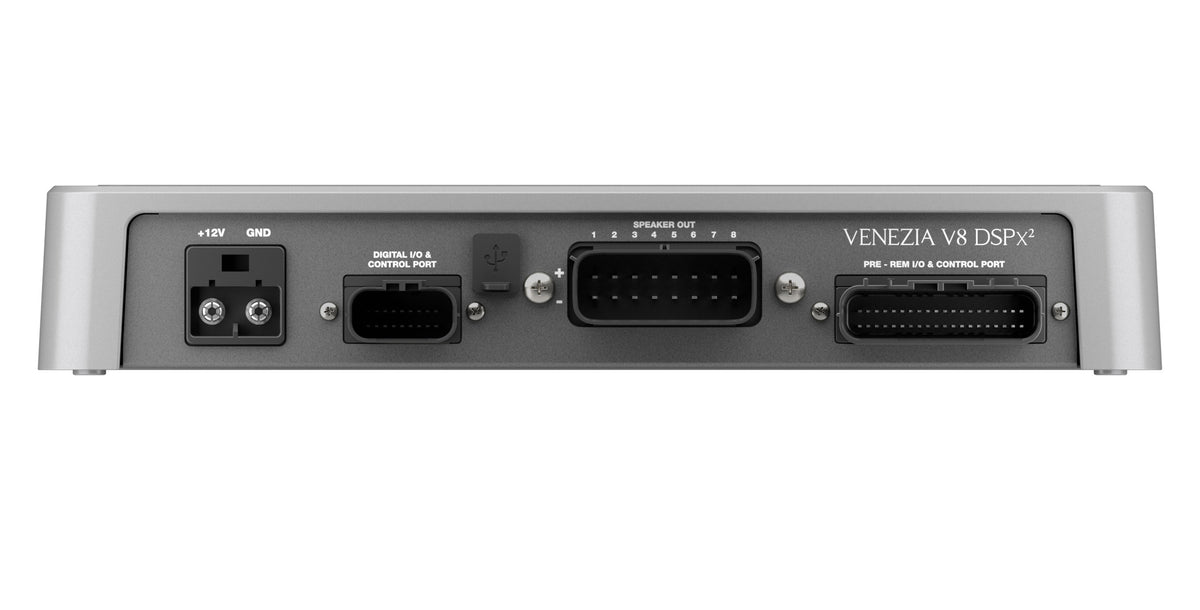

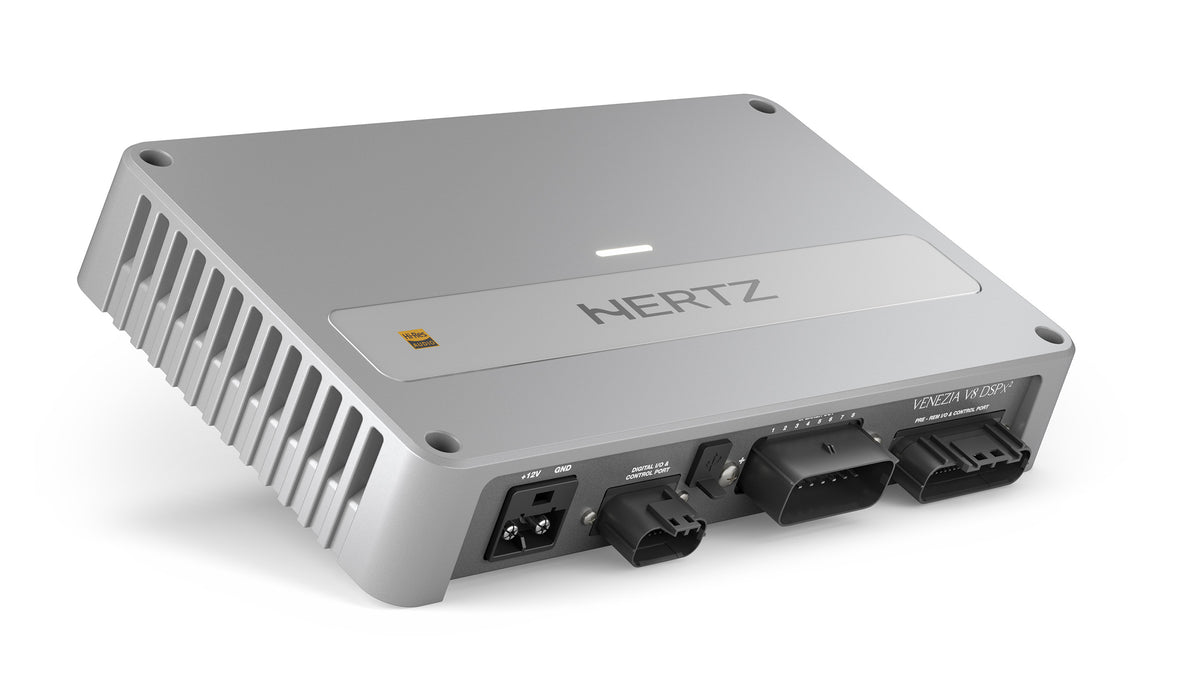

Hertz VENEZIA V8 DSPx² 8-Channel Class D Marine Amplifier with Integrated DSP, 2000W RMS Total (78213020)

The Hertz VENEZIA V8 DSPx² is a 8-channel full-range with integrated dsp marine amplifier engineered for demanding boat audio systems. Its Class D architecture and purpose-designed marine construction provide controlled power delivery to compatible loudspeakers, with performance dependent on the connected load and channel configuration. Integrated digital signal processing adds system calibration and routing options beyond a conventional amplifier.

Key Features

• Integrated advanced DSP with 12-channel analog preamp input stage
• Coaxial S/PDIF digital input supporting up to 24-bit / 96kHz
• A2B digital audio input supporting up to 16 DSP channels
• Hi-Res 10Hz–42kHz amplifier bandwidth
• 6V RMS analog preamplifier outputs
• Amplification supports eight-channel stereo and four-channel bridged configurations

Technical Specifications

• Amplifier type: Class D
• Channel arrangement: 8-Channel Full-Range with Integrated DSP
• Channels: 8
• Output power ratings:
• 2000W rated total amplifier output (manufacturer published)
• Minimum load: 2 ohms stereo; 4 ohms bridged
• Maximum summed advertised power: 2000W
• Operating supply voltage: 11–15V DC
• Recommended external fuse: 100A
• Consumption at 14.4V: 90A
• Amplifier efficiency: 84.5% at rated 4-ohm power
• THD: below 0.04% at 1kHz / 4 ohms / 70% rated
• Damping factor: 125 at 1kHz / 4 ohms
• Bandwidth: 10Hz–42kHz (-1.5dB)
• S/N: 98dBA analog / 106dBA optical input
• Input sensitivity: 0.6–6V RMS
• Analog preamp output: 6V RMS
• Minimum load: 2 ohms stereo / 4 ohms bridge

Compatibility

• Compatible with marine audio sources and speaker systems that meet the listed electrical input and impedance requirements
• Use 12V nominal electrical configuration; do not substitute a 24V-specific amplifier variant
• DSP configuration requires compatible control software, input connections and signal routing

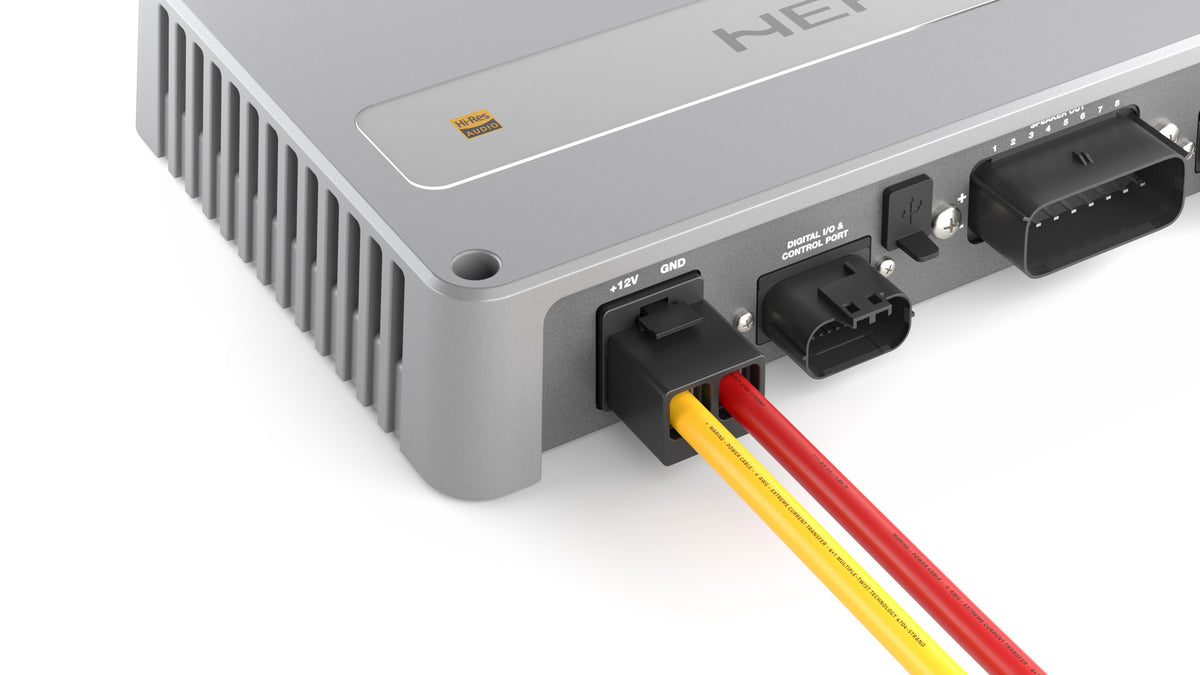

Installation & System Integration

• Choose conductor size, circuit protection, and battery capacity based on the installed system current draw
• Match each speaker or subwoofer impedance to the manufacturer load ratings, observing all bridging limits
• Mount away from standing water with suitable airflow and secure corrosion-resistant terminations
• Configure gain, filter frequencies, and any digital processing prior to high-volume operation
