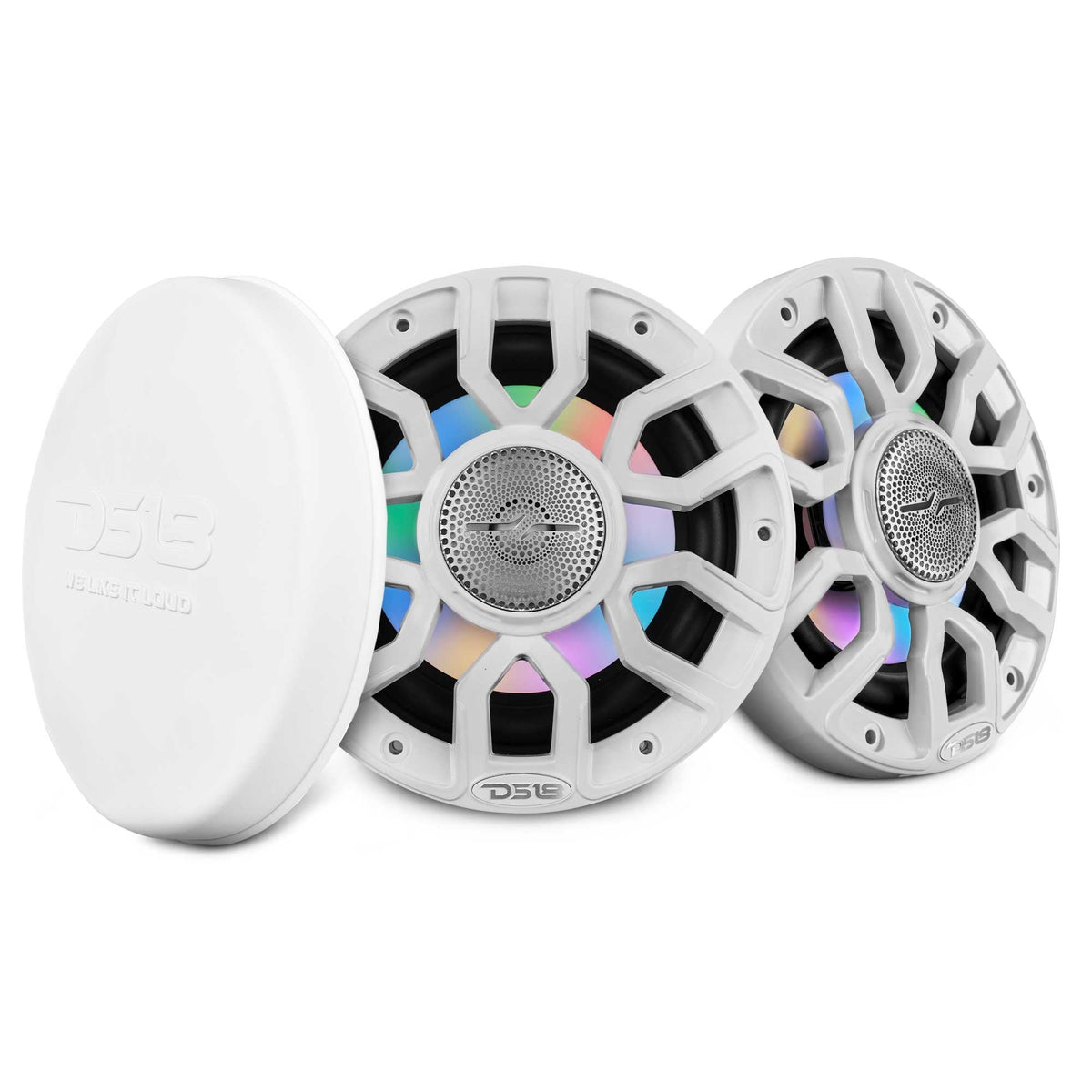

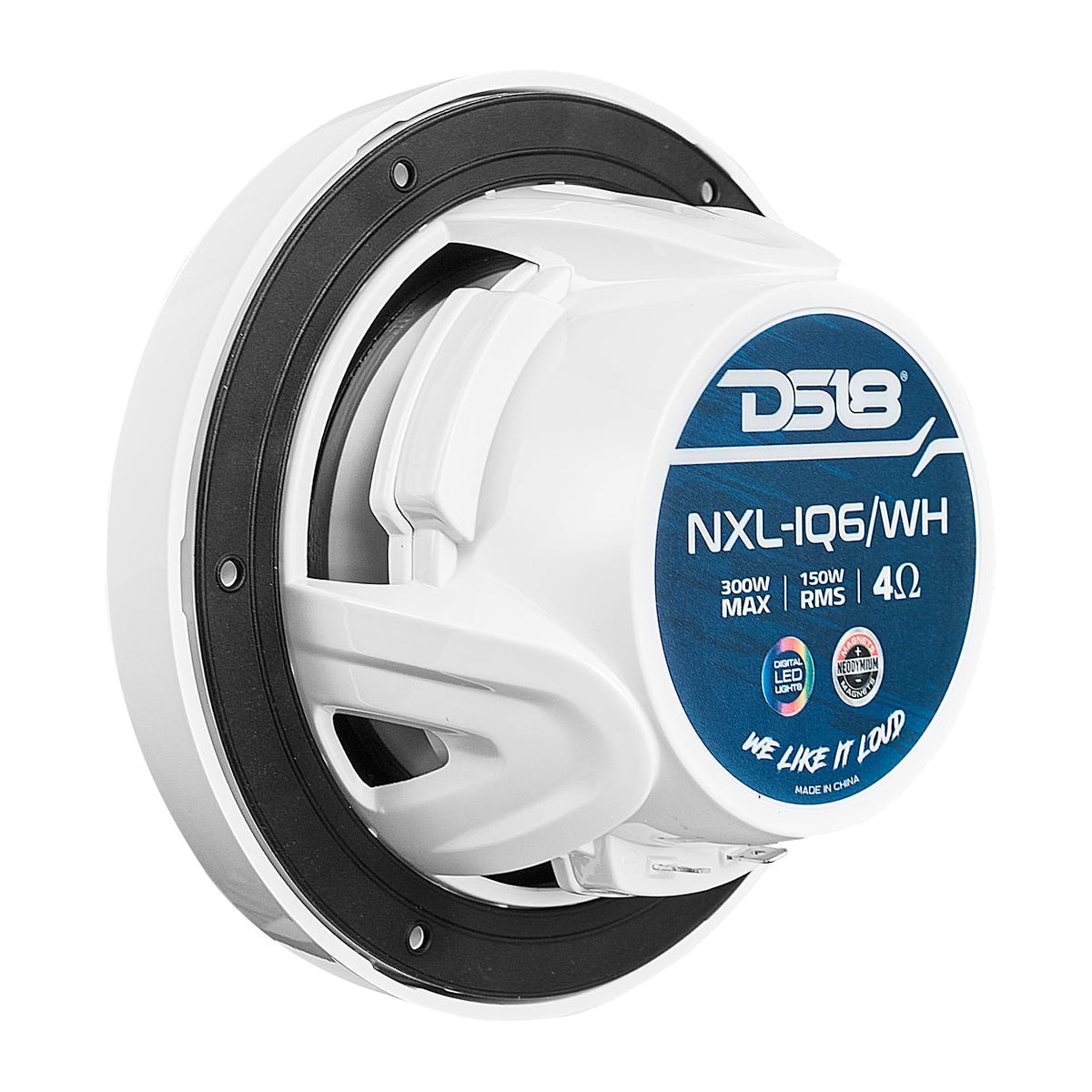

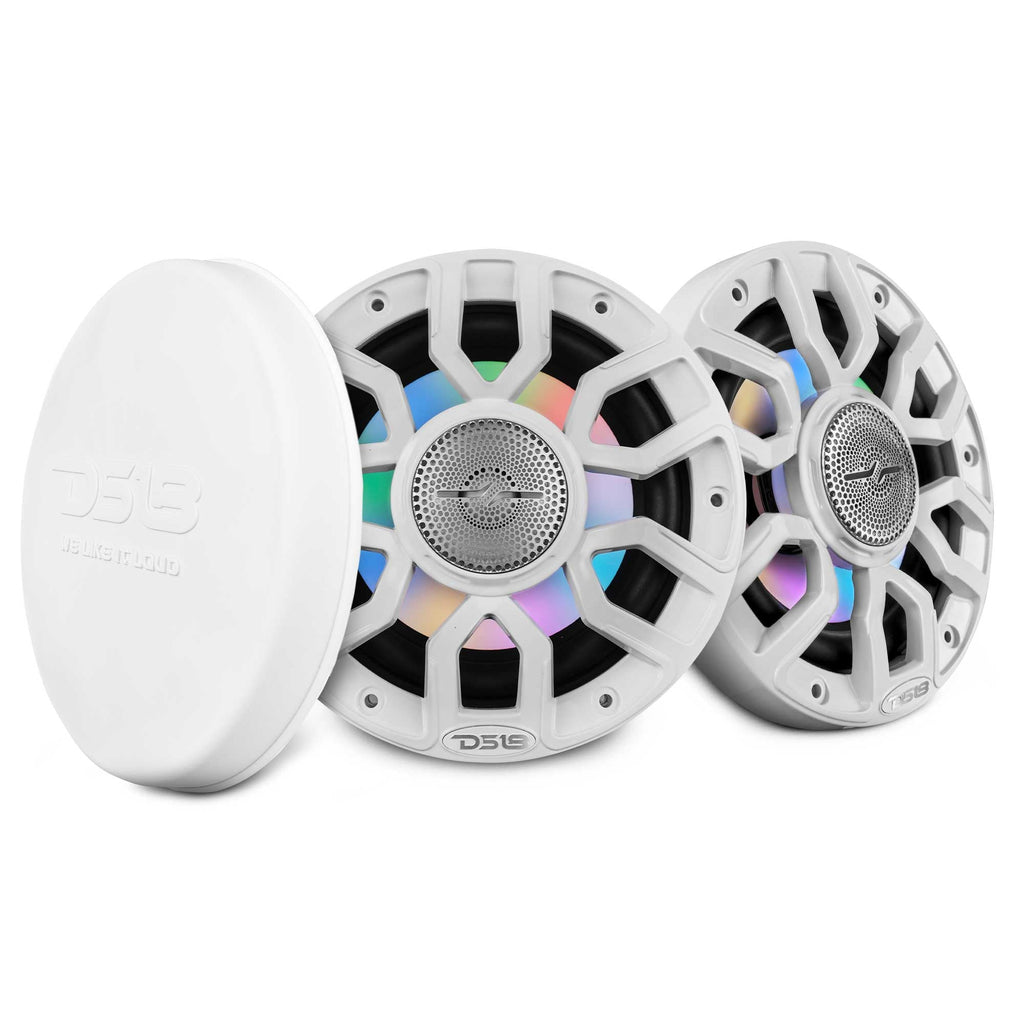

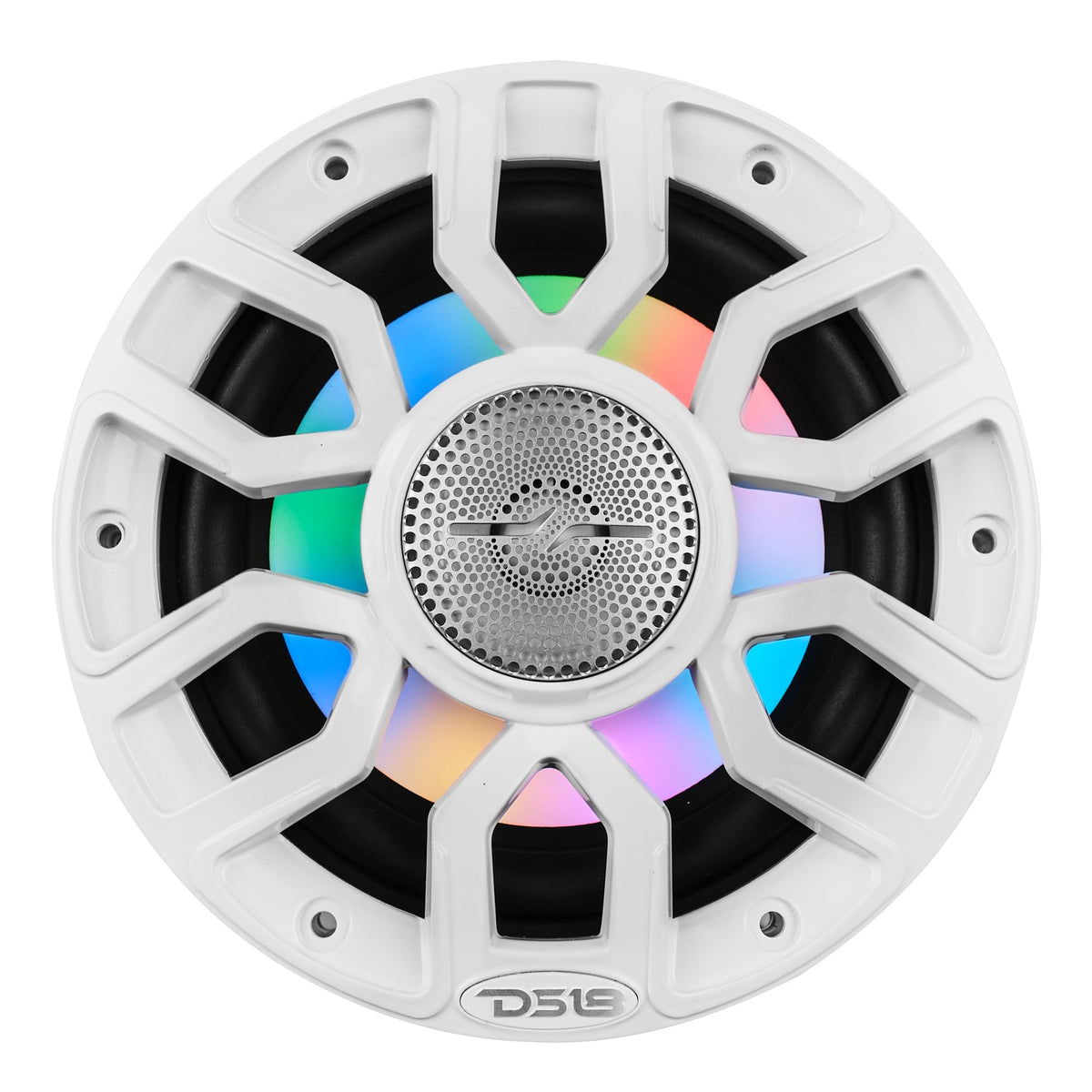

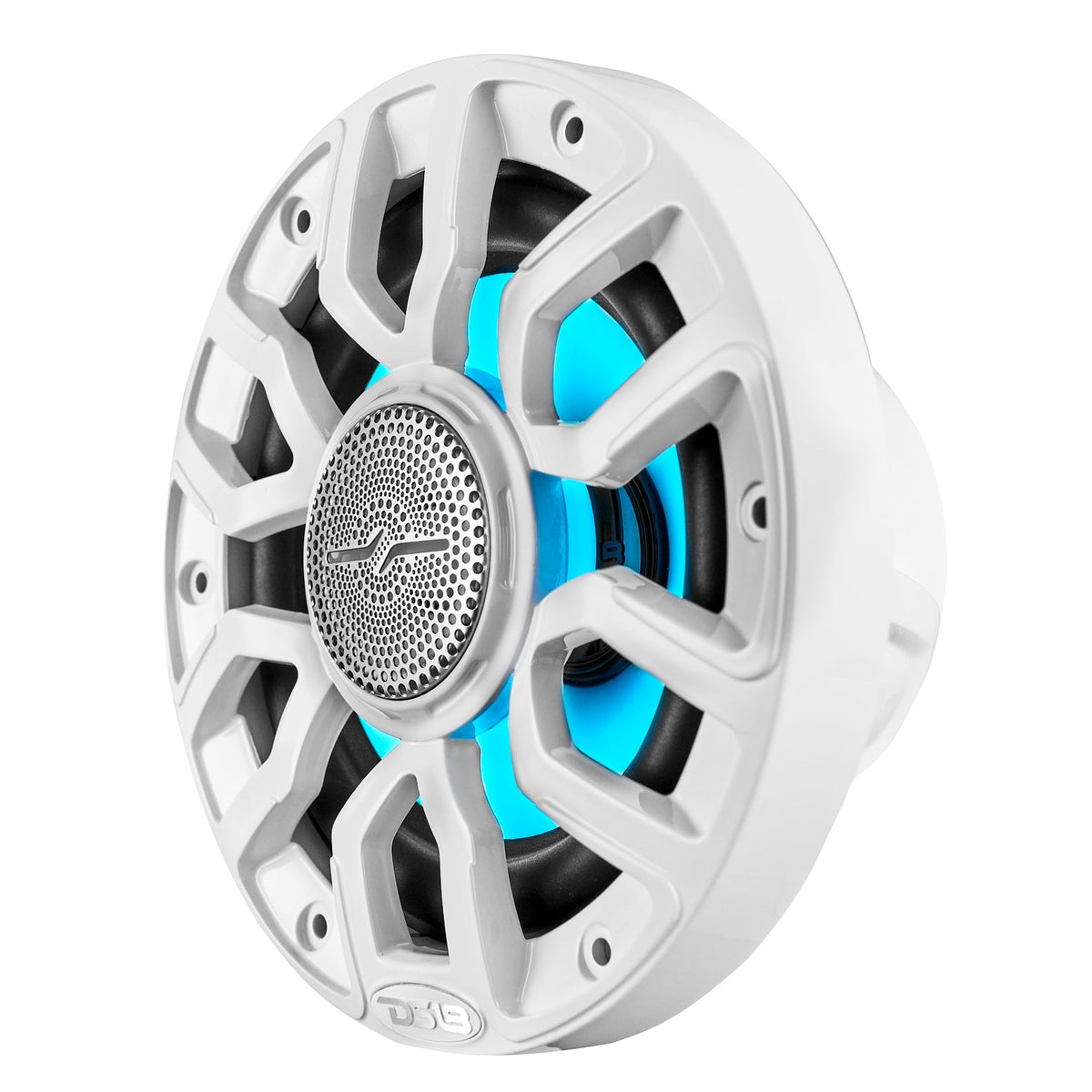

DS18 NXL-IQ6/WH HYDRO NXL-IQ 6.5" 150W RMS 2-Way Marine Speakers with Digital LED Lighting & Bullet Tweeters, White, Pair

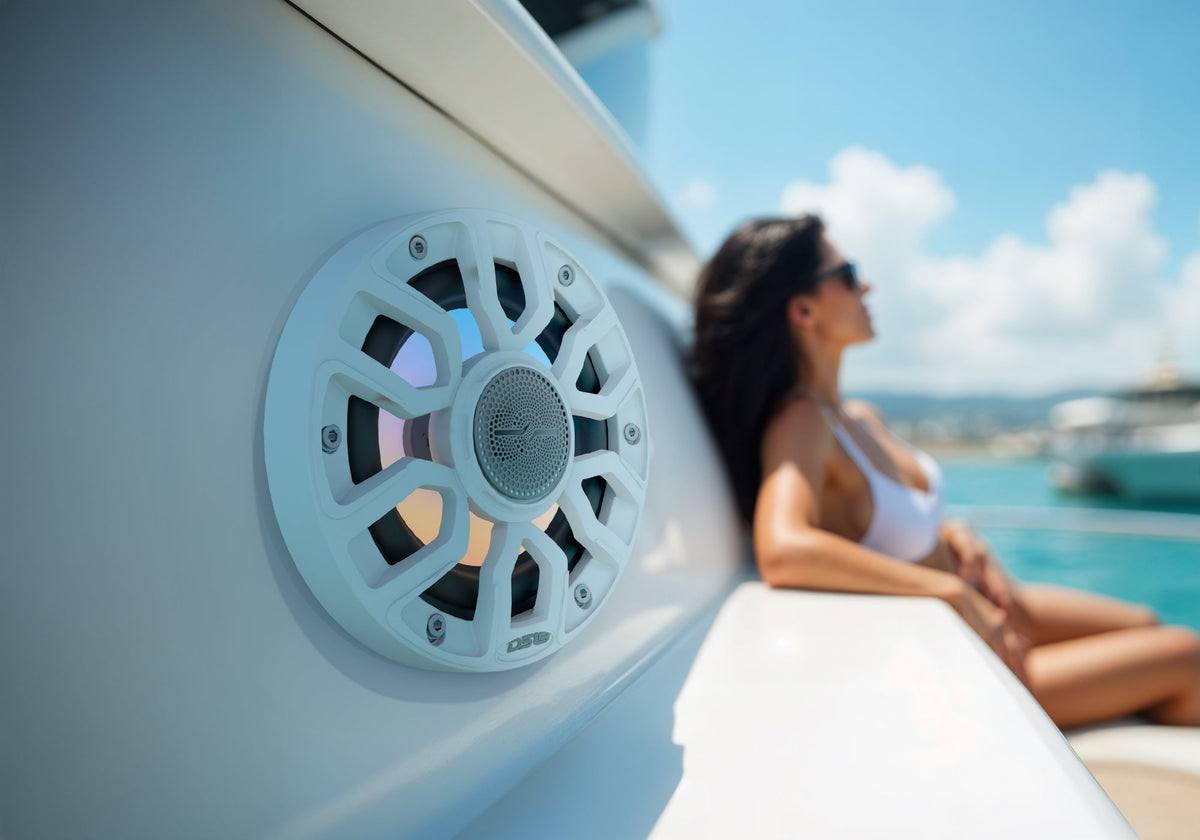

The DS18 NXL-IQ6/WH HYDRO NXL-IQ marine speaker pair pairs high-output midbass drivers with floating bullet tweeters and integrated digitally controlled LED lighting. Designed for boats, UTVs, motorcycles, and other exposed audio installations, the white speakers combine water-resistant, UV-stabilized construction with a 4-ohm load for conventional marine amplifier channels.

Key Features

• Each 6.5-inch speaker handles 150W RMS (300W maximum), with separate woofer and high-frequency driver sections.
• Floating bullet tweeter promotes clear projected treble in open-air environments.
• Digital addressable LED illumination supports dynamic lighting effects using compatible digital LED control hardware; it is not the same wiring scheme as ordinary analog RGB lighting.
• UV-stabilized grille and composite speaker basket help resist exposure to sun and spray.
• Pair configuration provides left/right coverage; marine-rated silicone covers are listed by DS18.
• 4-ohm nominal impedance allows pairing with properly rated stereo or multichannel amplifiers.

Technical Specifications

• Speaker size: 6.5 in.
• Configuration: 2-way coaxial with floating bullet tweeter
• Continuous power handling: 150W RMS per speaker
• Maximum power handling: 300W per speaker
• Nominal impedance: 4 ohms
• Sensitivity (1W/1m): 95dB
• Frequency response: 45Hz–20kHz
• Recommended high-pass filter: 60Hz
• Water-resistance rating: IP65

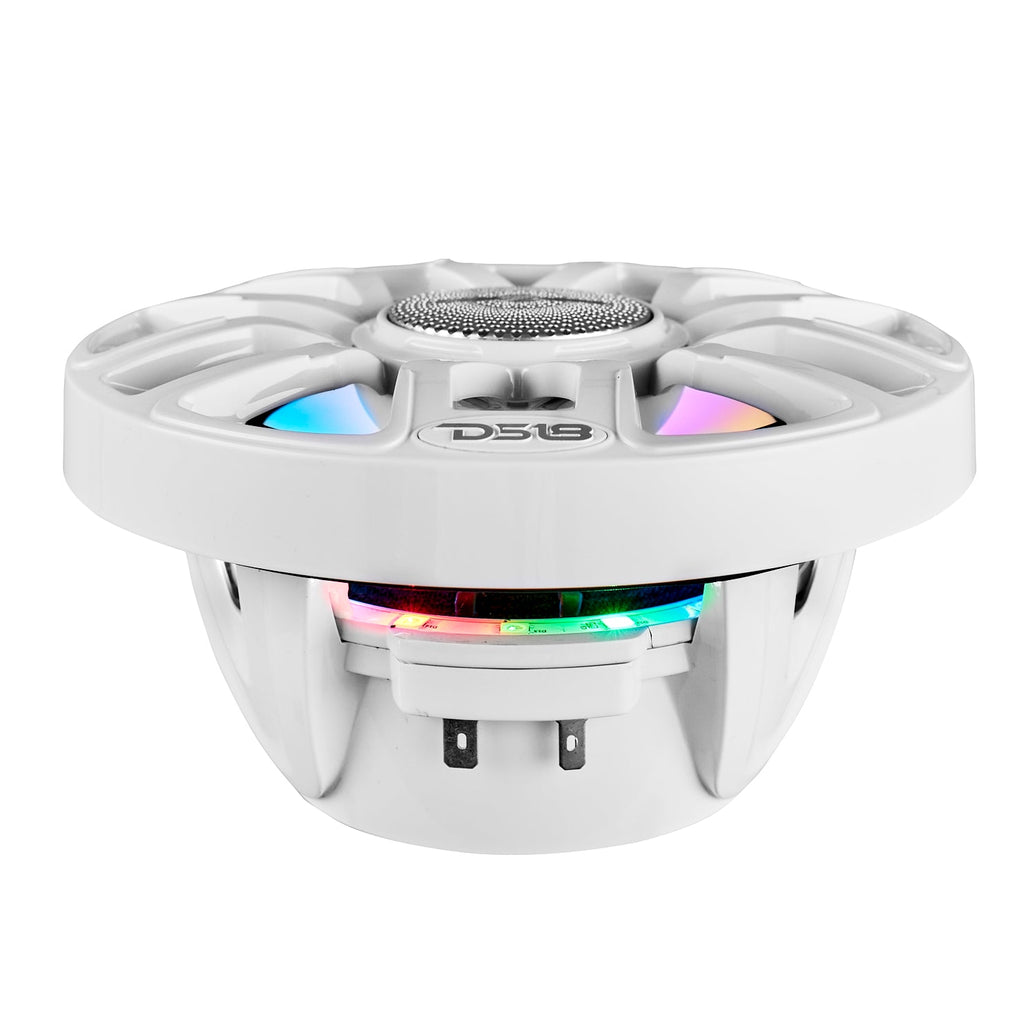

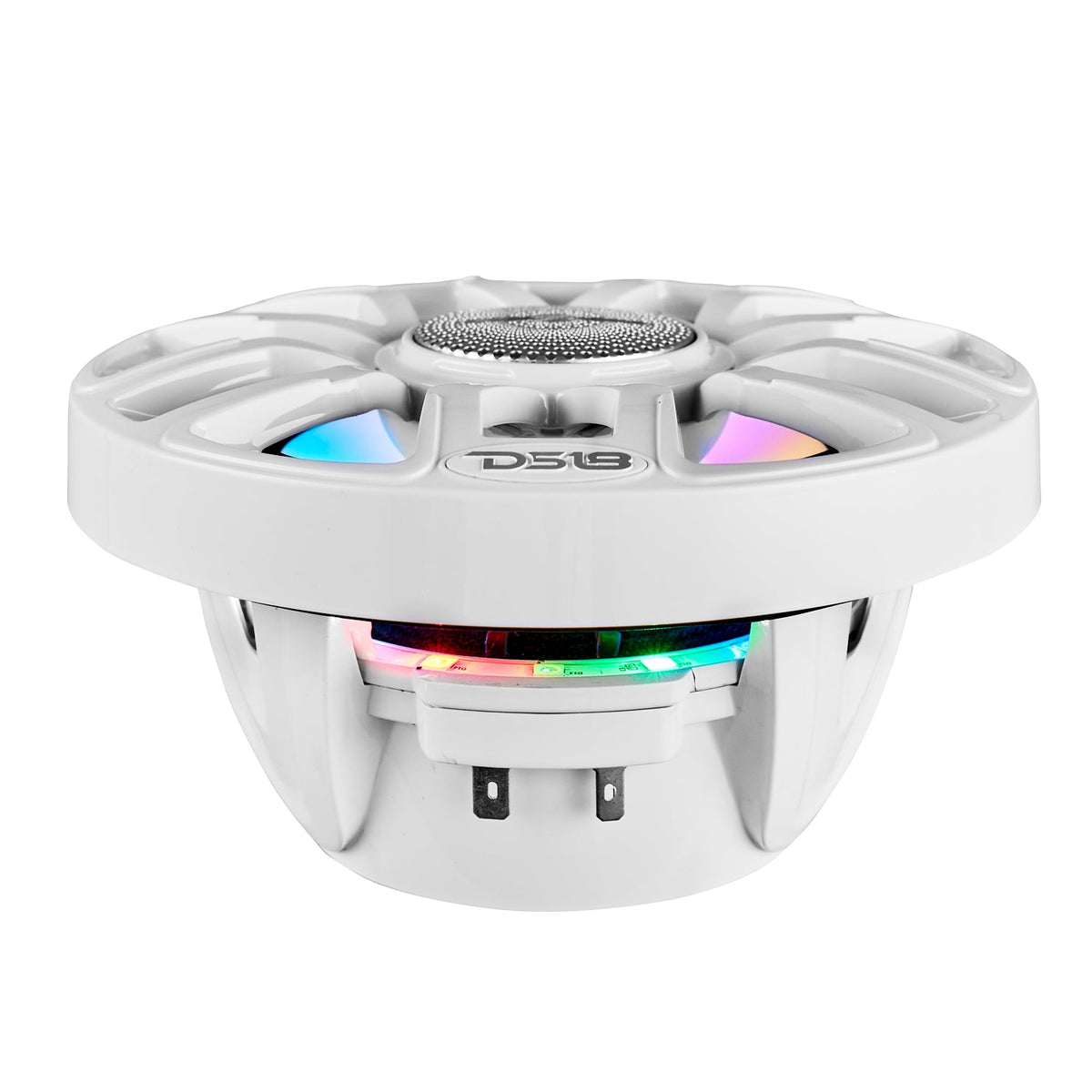

• Lighting: Integrated digital/addressable LEDs behind cone; 12V and digital in/out connections
• Grille: UV-resistant injection-molded composite
• Finish: White
• Sales unit: Pair
• Woofer voice coil: 1.5 in. (38.6mm); CCAW winding on glass-fiber former
• Tweeter voice coil: 1 in. (25.4mm); aluminum diaphragm
• Woofer magnet: Ferrite and neodymium
• Tweeter magnet: Neodymium
• Cone and surround: Injection-molded polypropylene composite and rubber

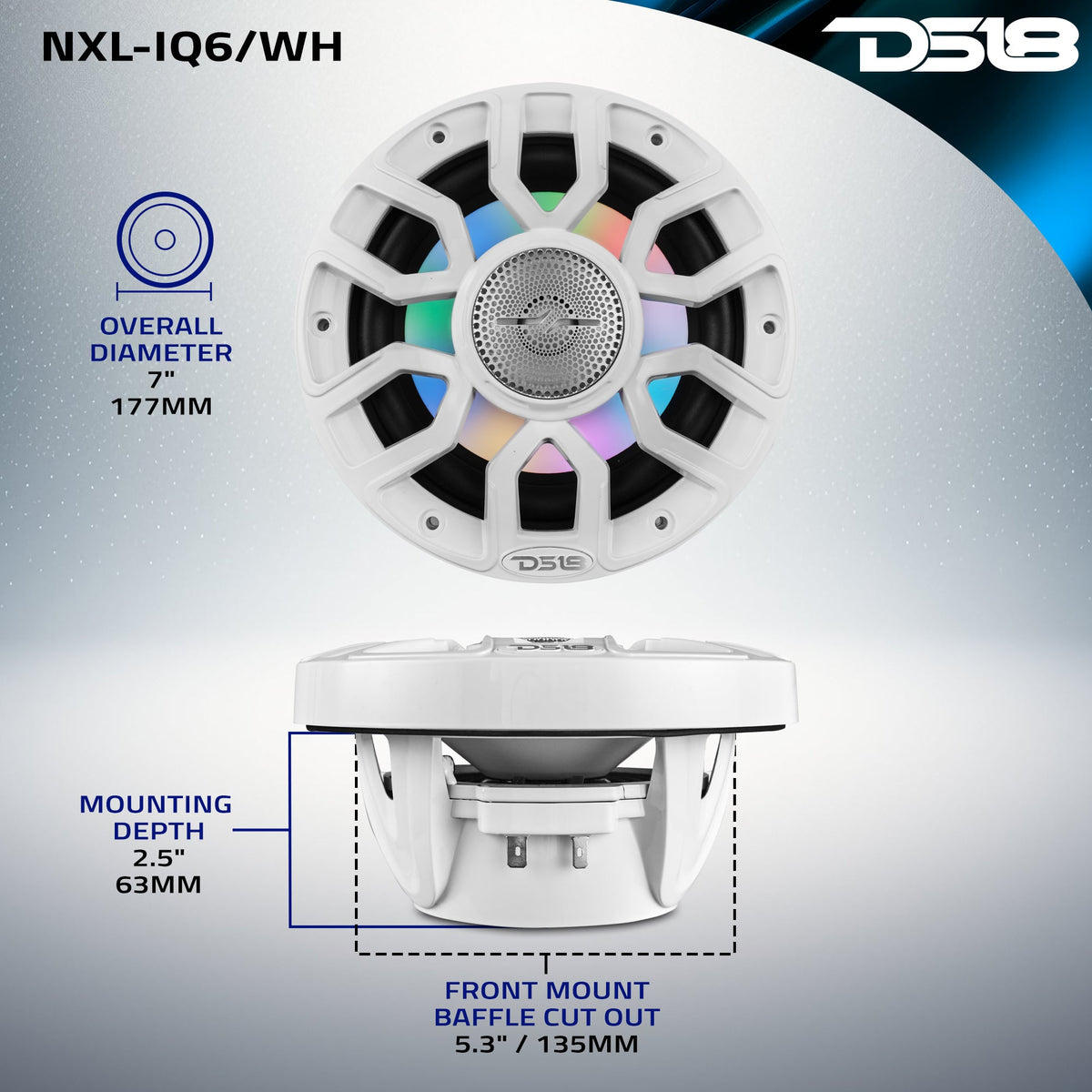

• Overall speaker diameter: 7 in. (177mm)

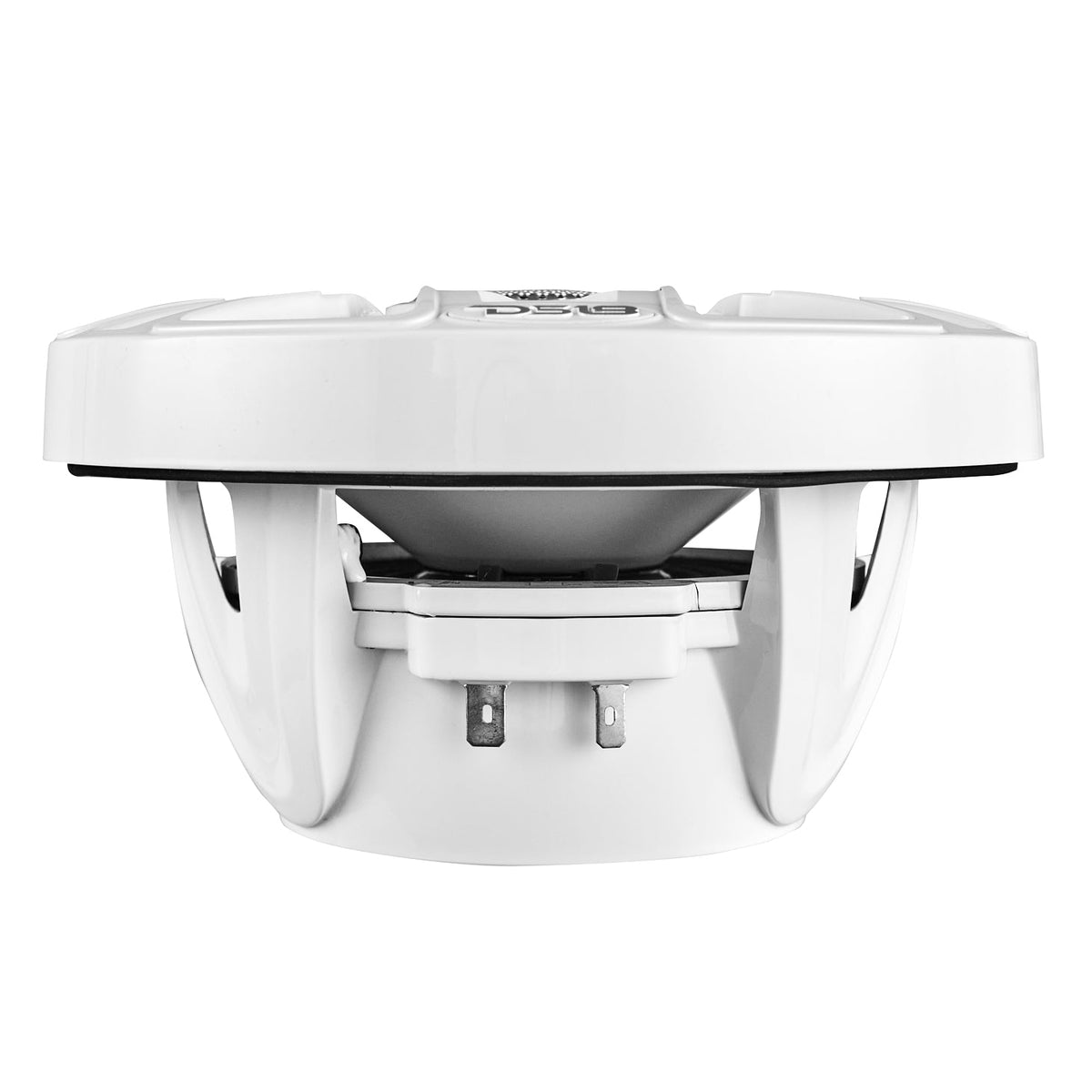

• Overall depth: 3.75 in. (95mm)
• Baffle cutout: 5.3 in. (135mm)
• Mounting depth: 2.5 in. (63mm)
• Free-air resonance (Fs): 94Hz
• Qts: 1.038
• Vas: 3.15L / 0.11 cu. ft.

Installation & System Integration

Mount in a suitable baffle with the published cutout and mounting-depth clearance; seal fasteners and route wiring away from standing water. Power the audio and digital LED functions separately using the specified connections. Set amplifier high-pass protection for exposed coaxial speakers and do not connect digital data inputs directly to analog RGB controllers.

Compatibility

For 4-ohm marine/powersports audio systems and compatible digital LED controllers. Match the mounting dimensions and digital LED wiring interface to the installation.

What's in the Box

• Two marine coaxial speakers

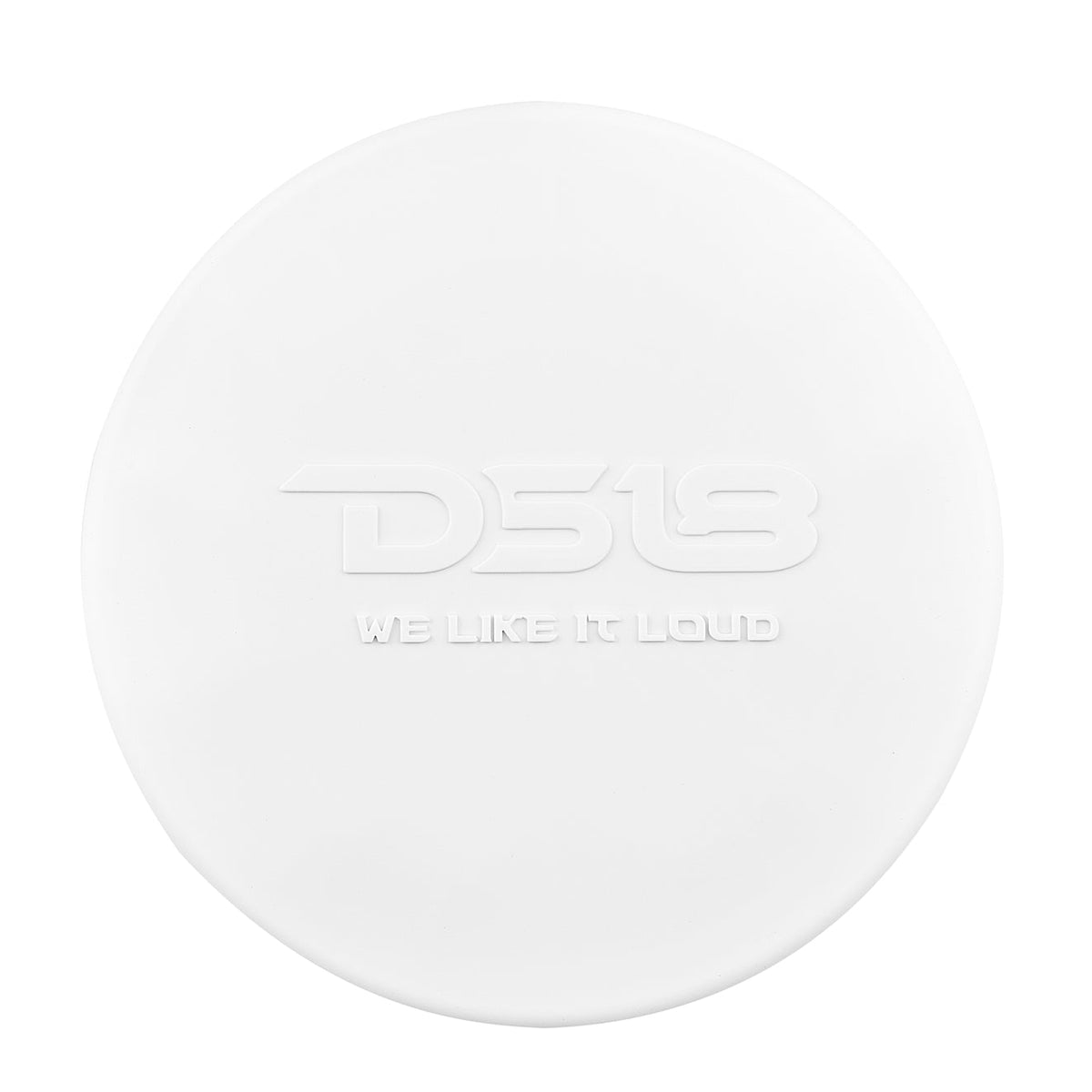

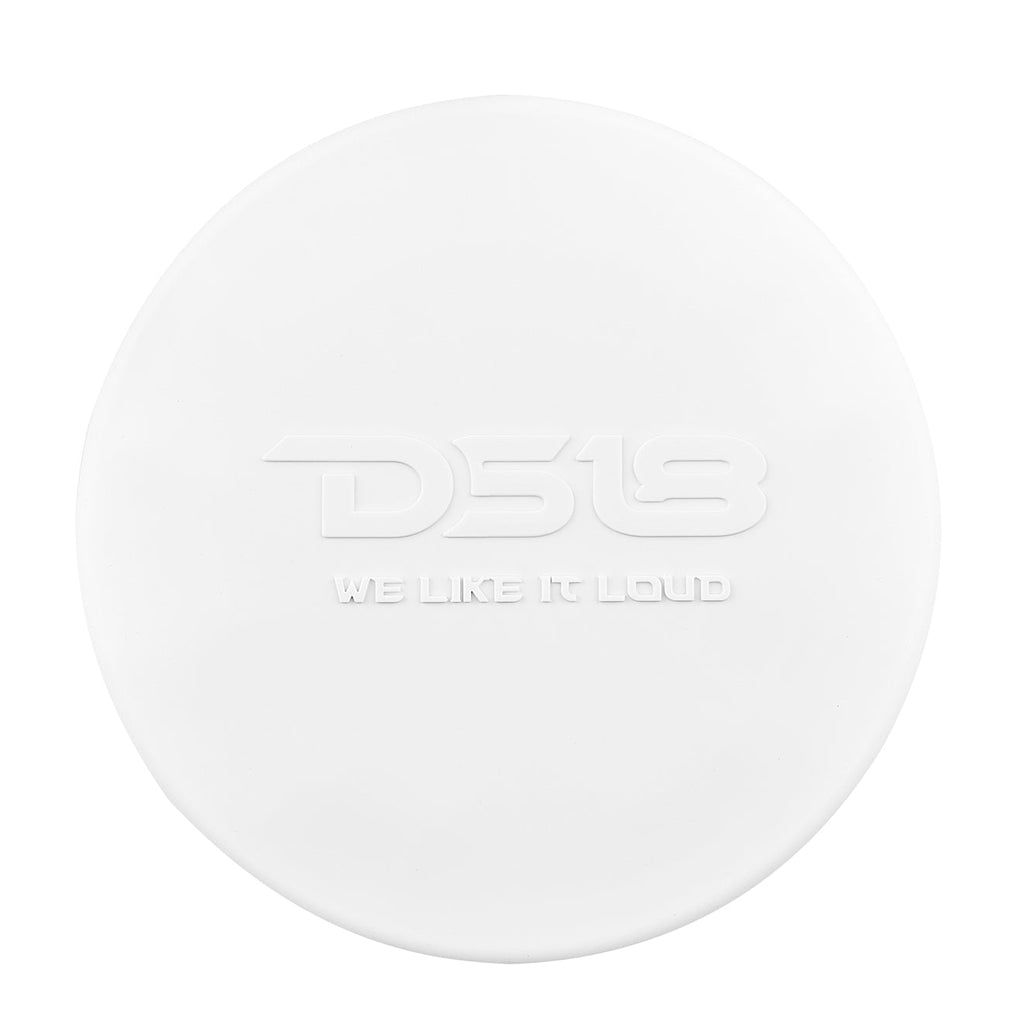

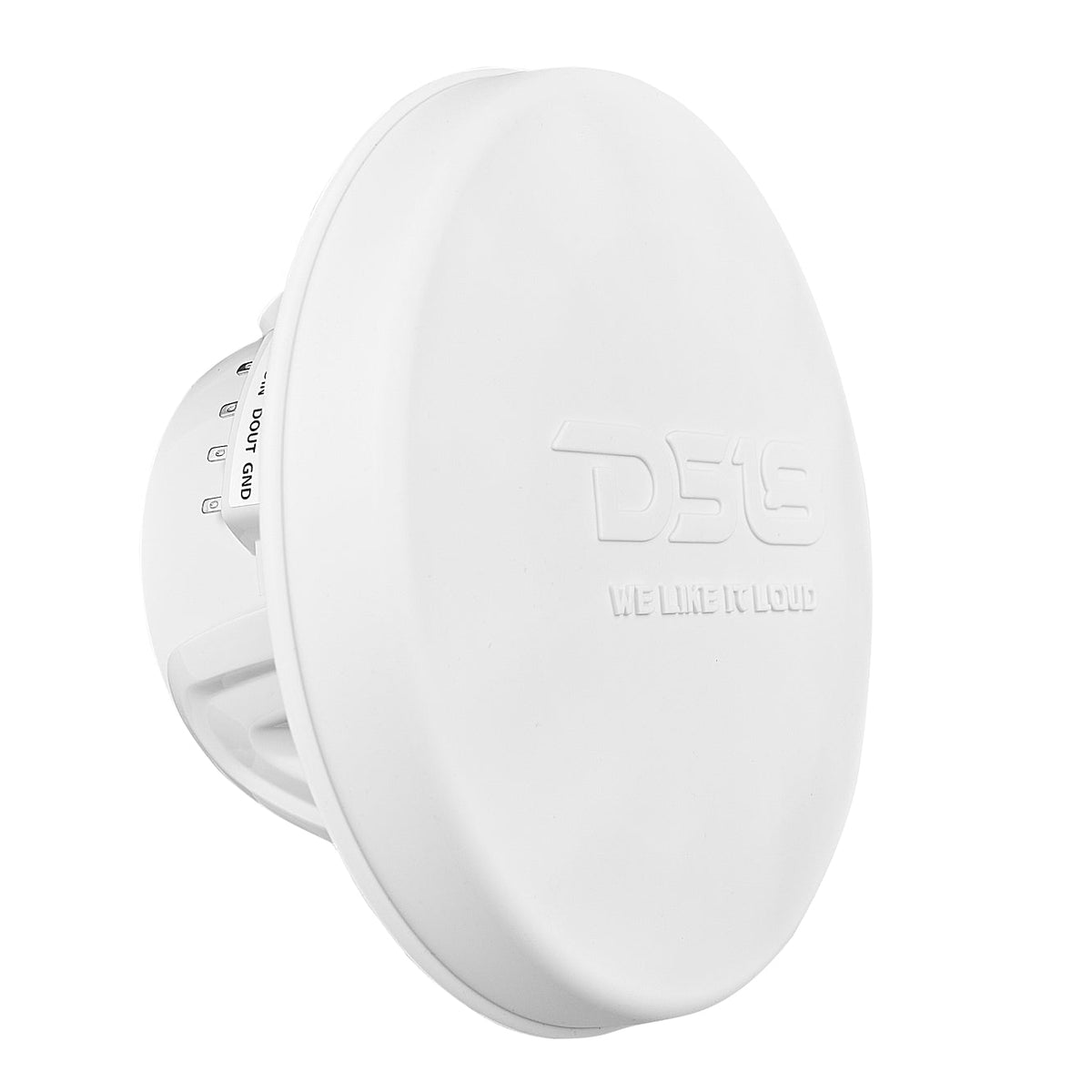

• Two silicone speaker covers
