Aquatic AV CP7 Waterproof Marine Stereo with 3" IPS Color Display, Bluetooth, Camera Input & 288W Max Amplifier (CP711)

The CP7 is Aquatic AV’s updated marine receiver with a bright, bonded 3-inch IPS color display. It combines Bluetooth, radio and USB entertainment with low-level outputs, a camera input, wired-remote connectivity, and substantial onboard power for a flexible helm audio installation.

Key Features

• 3-inch IPS TFT display bonded to tempered glass
• Bluetooth, USB, AM/FM and AUX audio; optional DAB+ reception
• 288W maximum total amplifier power at 2-ohm loading
• Camera input and dedicated trigger for assisted visibility
• Three low-level RCA output groups rated 4V
• Rear USB charging at 2.1A
• 10-band equalizer, subwoofer volume, tone/balance/loudness functions
• IP66 environmental protection with ASTM UV and salt fog testing

Technical Specifications

• Display: 3-inch IPS TFT, glass bonded
• Audio inputs: Bluetooth, USB, AUX
• Additional inputs: Resistive wired remote; camera + trigger; DAB+; rear Bluetooth microphone
• RCA preamp outputs: Three groups at 4V
• Maximum power at 4 ohms: 4 x 45W
• Maximum power at 2 ohms: 4 x 72W
• Total maximum output: 288W
• USB charging: 2.1A rear USB
• EQ: 10-band
• Water/dust rating: IP66
• Environmental compliance: ASTM D4329; ASTM B117
• Supply: Marine 12V DC system

Compatibility

• Compatible with appropriate 2-ohm or 4-ohm speaker loading and accessories matching resistive wired-remote/camera connections.

Installation & System Integration

• Use specified wiring-harness terminations and adequate fuse protection.
• Plan room for video, microphone and optional auxiliary connections.

What's in the Box

• CP7 marine receiver

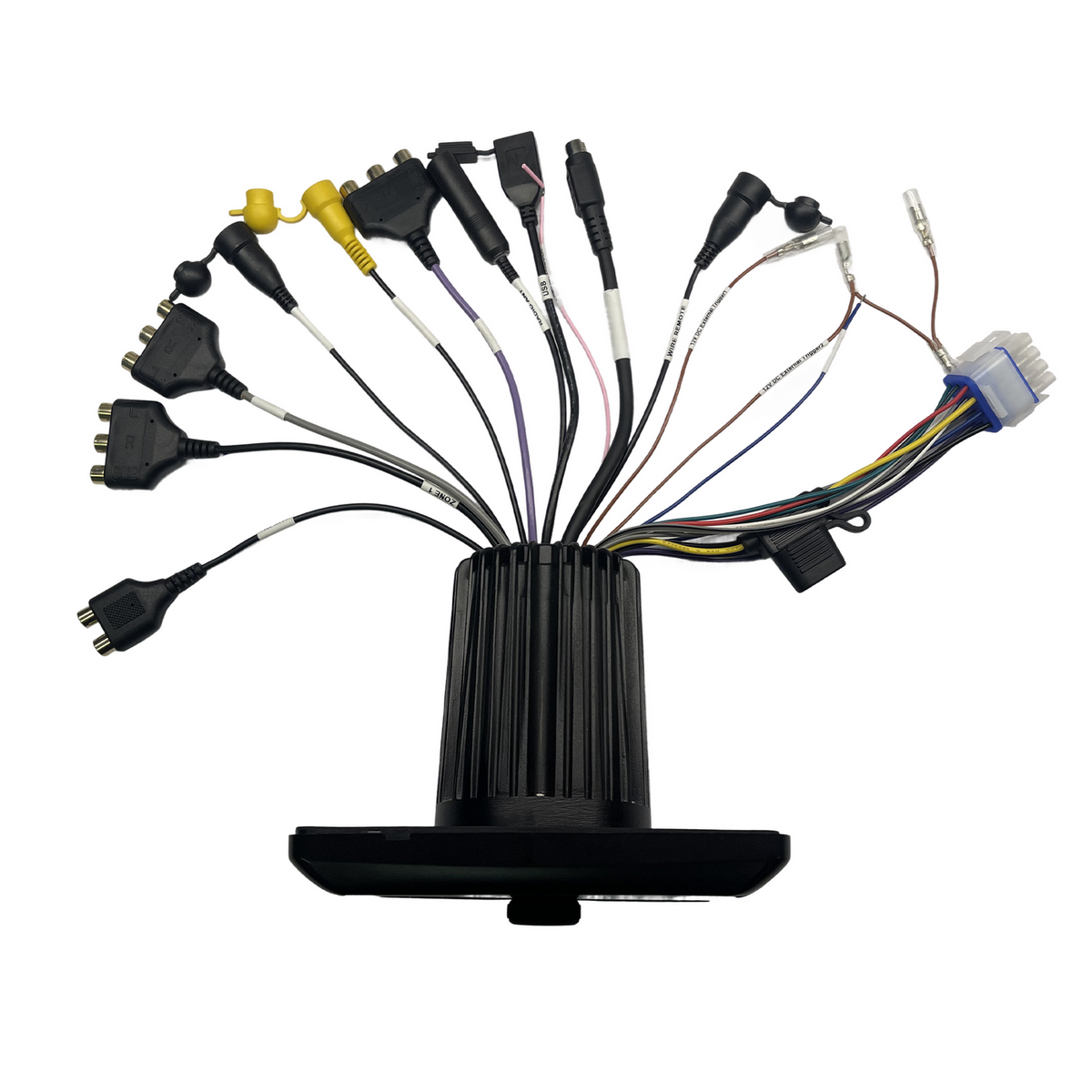

• Wiring harness
• Silicone dust faceplate
• Four mounting screws
