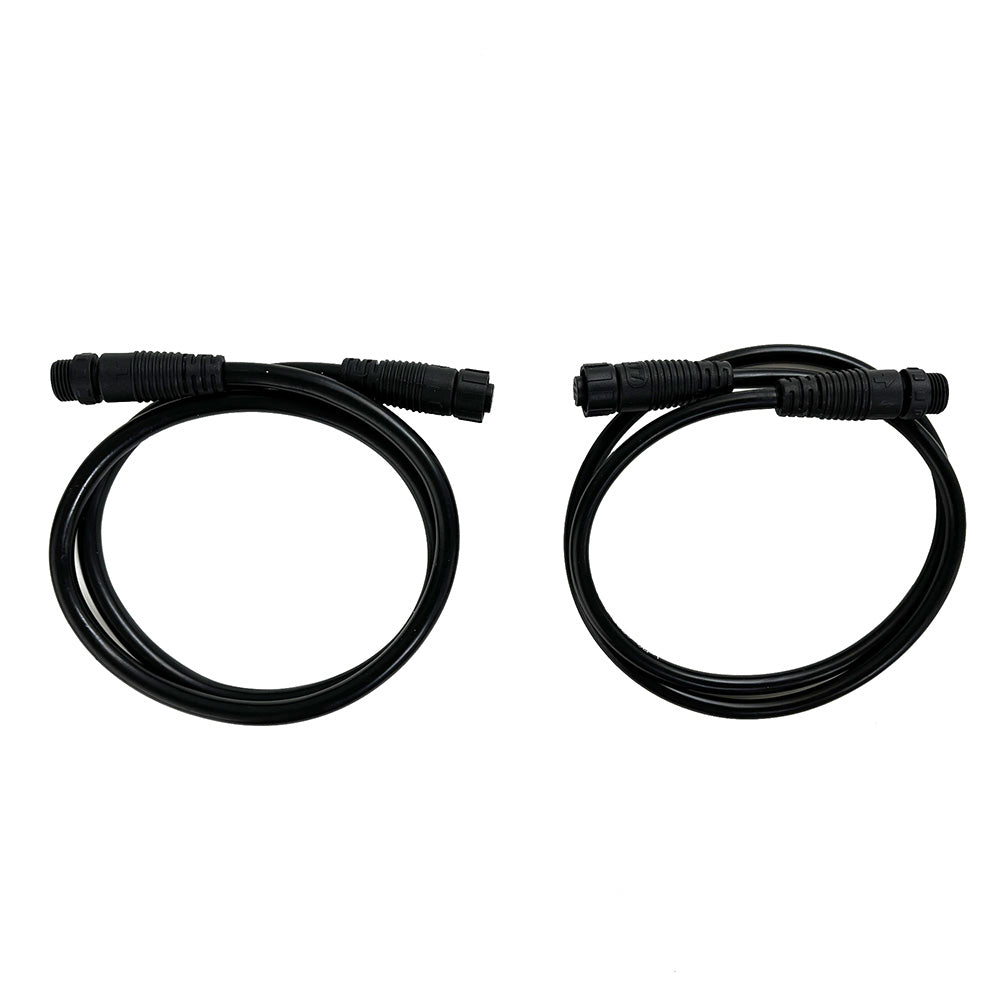

ACR Exposure OLAS Guardian 29.5" Power & Switch Extension Cable Set (EXPOLASGUARDEXT)

The ACR Exposure OLAS Guardian Extension Cable Set helps installers position the Guardian hub farther from the helm-mounted control switch or the boat’s existing power and engine-stop wiring. The matched extension leads provide an extra 750mm (29.5 inches) for each of the two connections, helping achieve a cleaner installation when space behind the dash is limited.

Key Features & Benefits

• Two Dedicated Extensions: Separately extends the Guardian power connection and control-switch connection.
• 29.5-Inch Extra Reach: Adds 750mm of cable length on either connection, or both.
• Flexible Guardian Placement: Helps locate the Guardian hub where it can maintain dependable OLAS transmitter coverage.
• Purpose-Built Fit: Designed as a cable accessory for the OLAS Guardian system, not as a generic wiring kit.

Technical Specifications

• Accessory type: Guardian connection extension cable set
• Cable quantity: 2
• Cable functions: Power connection and switch connection
• Length of each cable: 750mm (29.5 inches)
• Designed for: ACR Exposure OLAS Guardian
• Additional system electronics: Not included

Compatibility

Specifically for compatible ACR Exposure OLAS Guardian installations. Not a range extender for OLAS wireless transmitters and not interchangeable with the OLAS Extender repeater.

Installation & Setup

Confirm connector orientation and route both extensions away from sharp edges, heat, and moving parts. Secure leads and test the Guardian switch, alarm and engine-stop functions following installation.

What's in the Box

• 750mm OLAS Guardian power extension cable
• 750mm OLAS Guardian switch extension cable
