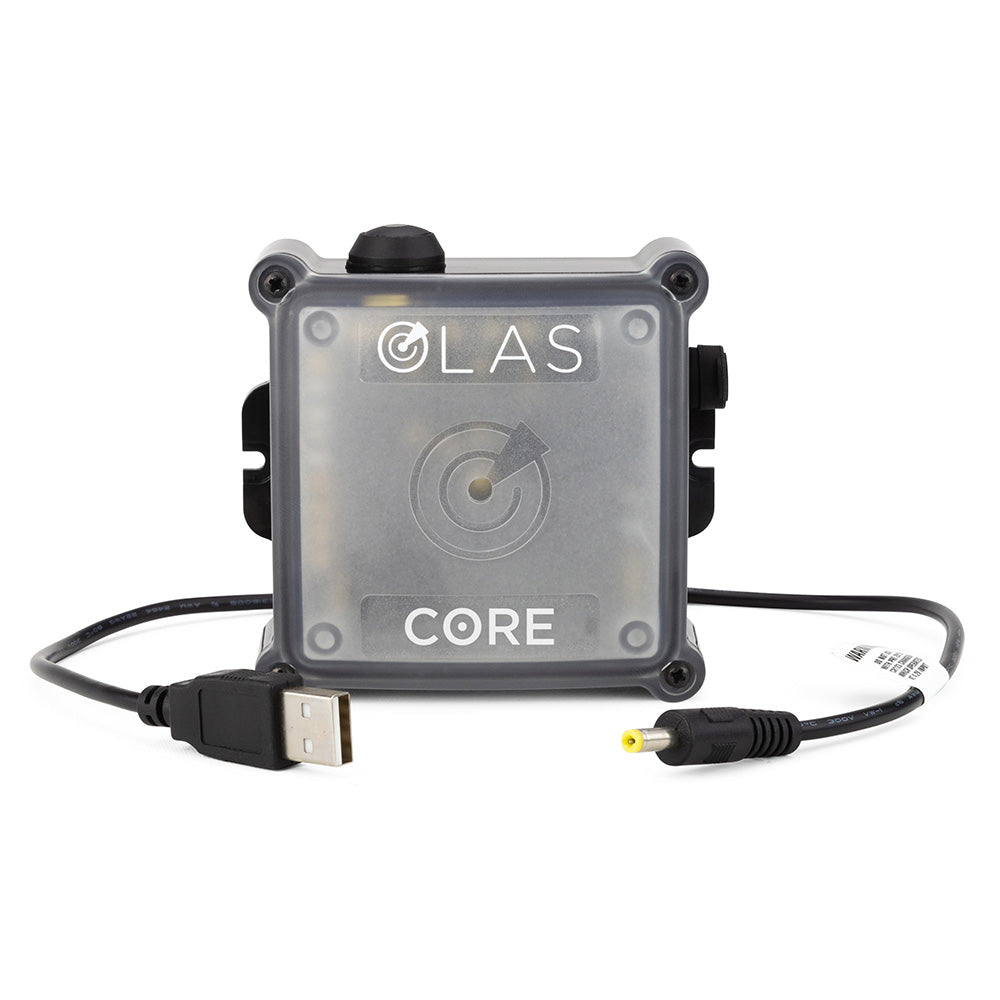

ACR Exposure OLAS Core Wireless Man Overboard Alarm & Emergency Light Receiver (EXPOLASCORE)

The ACR Exposure OLAS Core gives crews a dedicated onboard man-overboard alarm without requiring a permanent connection to the engine kill switch. It monitors paired wearable OLAS transmitters and warns when one leaves wireless range or enters the water, sounding a loud alarm and illuminating a red emergency light. Powered by 5V USB, the portable Core can move between boats and work with the OLAS mobile app for recovery guidance.

Key Features & Benefits

• Monitors Up to 25 Transmitters: Tracks compatible OLAS Tags, T2 transmitters and Float-On lights around the vessel.
• Independent Onboard Alarm: An 85dB audible alert and 55 lumen red light notify crew without requiring a phone to remain the only alarm.
• Portable USB Power: Runs from a suitable 5V USB supply without engine-kill-switch wiring.
• Scalable Vessel Coverage: Coverage on vessels up to 50ft without an Extender; compatible with one or two Extenders for larger boats.
• App-Assisted Recovery: When paired with the OLAS app, a mobile device can record the alert location and assist with return navigation.

Technical Specifications

• Receiver type: OLAS wireless MOB alarm receiver
• Supported transmitters: Up to 25
• Power supply: 5V USB
• Nominal current: 13–17mA
• Audible alarm: 85dB
• Visual warning: Red LED, 55 lumens
• Typical vessel suitability: Up to 50ft without extender, installation dependent
• Expansion: Compatible with OLAS Extender
• Dimensions: 92 × 90 × 38mm
• App: OLAS mobile app for iOS and Android

Compatibility

Requires compatible OLAS transmitters worn or carried by crew. The Core provides onboard alarm functions but does not independently stop engines, and it is not an AIS or satellite rescue transmitter. OLAS Extender devices require Core, Guardian or N2K systems.

Installation & Setup

Connect to a suitable 5V USB power supply, locate the receiver to maximize wireless coverage, pair the tags and test alarm range before departure. Mobile-app location tracking uses the paired phone or tablet GPS.

Warranty

2-Year Limited Warranty
